1049059 WL9-3P2230
Product Overview

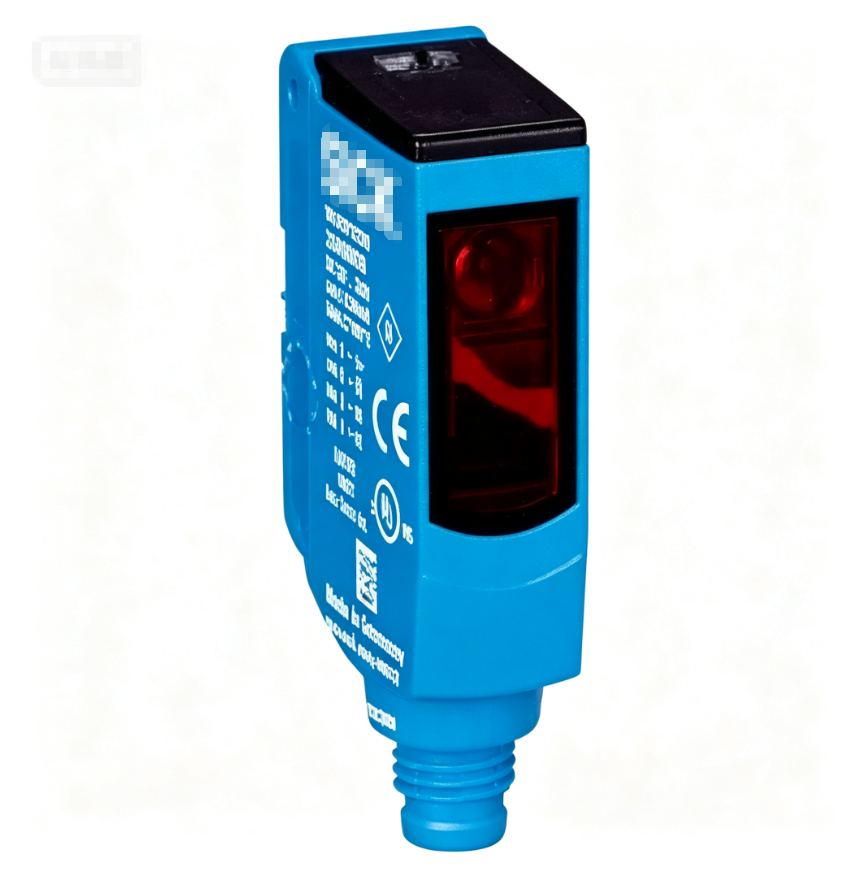

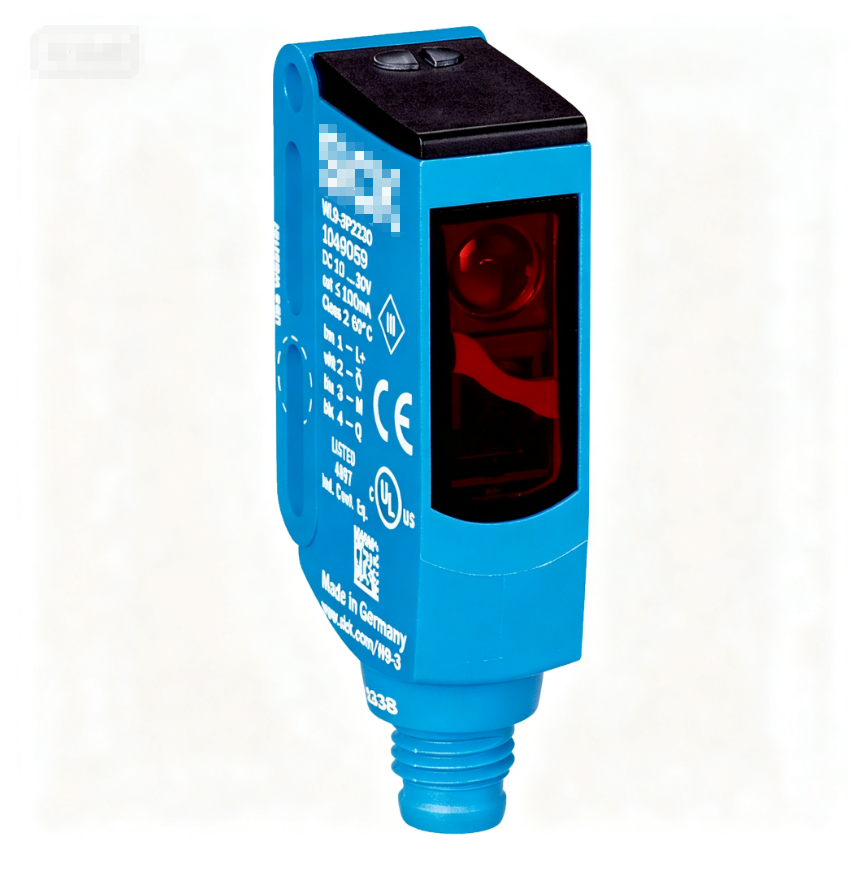

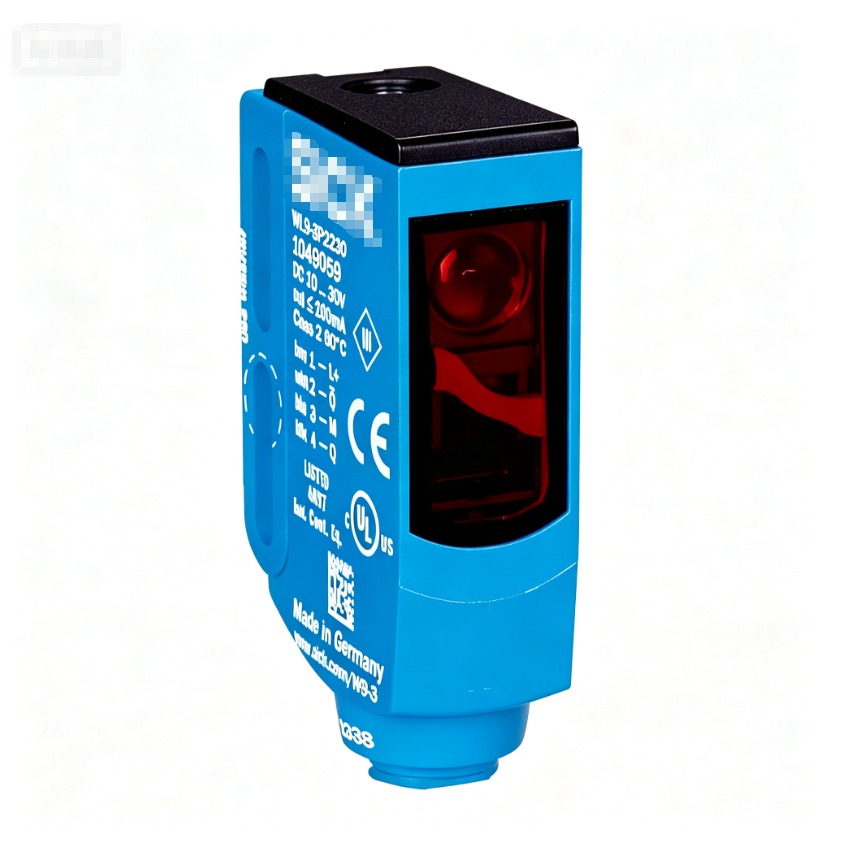

WL9-3P2230 (Part No.1049059) is a compact retro-reflective photoelectric sensor of SICK W9 series. It uses PinPoint 650nm visible red LED light source, maximum sensing range up to 4 m (recommended working range 0~2.5m with PL80A reflector). It provides PNP output with switchable Light-ON / Dark-ON function, fitted with M8 4-pin male connector. VISTAL plastic housing, IP67 protection class, operating voltage DC10~30V. It delivers reliable object detection performance for general industrial automation applications. Brand new original SICK photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WL9-3P2230 |
| Part No. | 1049059 |
| Product Type | Photoelectric Sensor |
| Series | W9 |
| Principle | Retro-reflective photoelectric sensor, coaxial auto-alignment optics |
| Sensing Range | 0 ~ 4 m (Recommended range:0~2.5m, with PL80A reflector) |
| Light Source | PinPoint LED, 650nm visible red light |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | VISTAL Plastic |
| Protection Class | IP67 |
| Connector | M8 4-pin male connector |
| Switching Frequency | 1000 Hz |
| Condition | New Original |
| Application | Object detection, conveyor system, packaging machinery, small workpiece inspection |
| Weight | 0.013 KG |
| Gross Weight | 0.04 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
