WTB8L-P2111 (6033225)
Product Overview

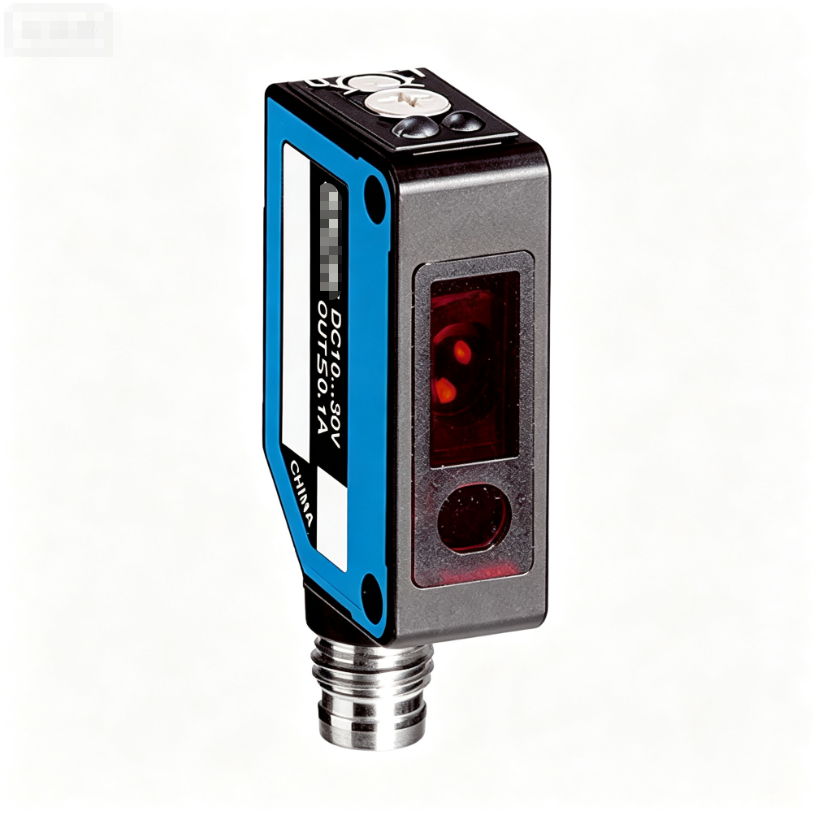

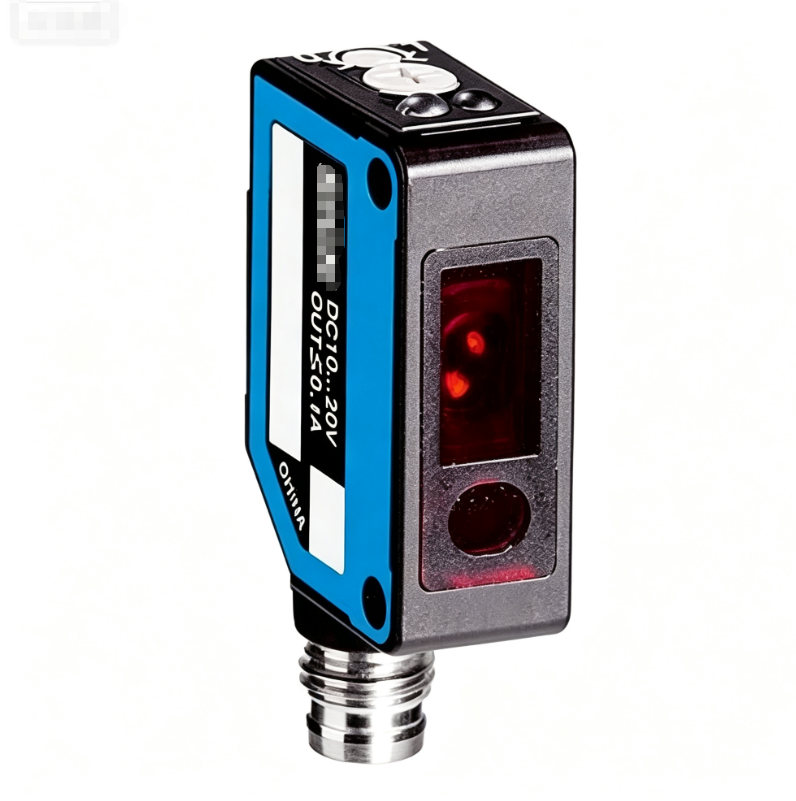

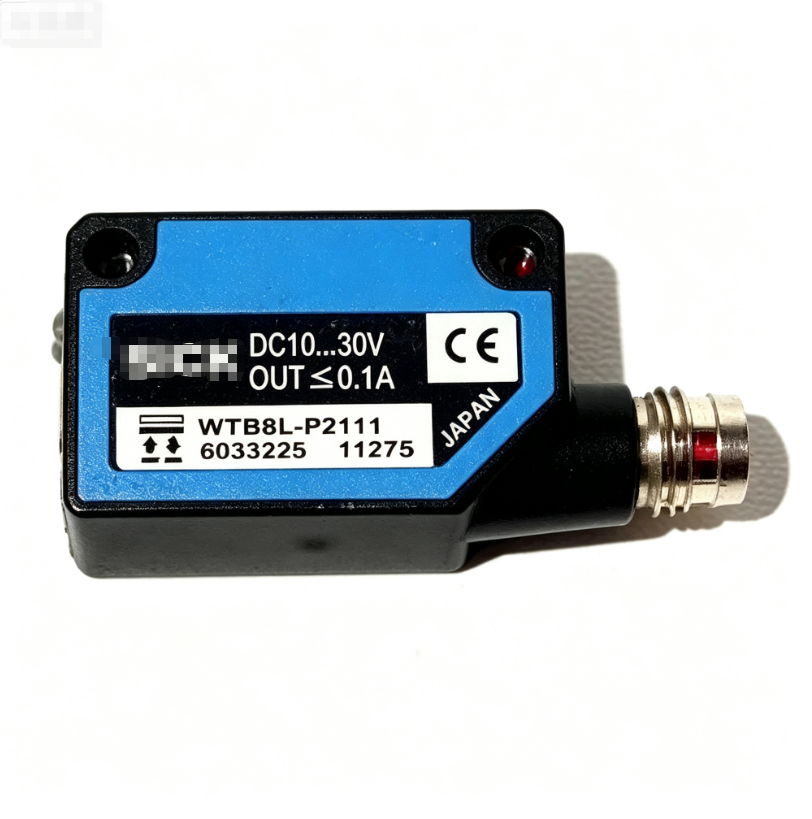

WTB8L-P2111 (Part No.6033225) is a compact diffuse reflection laser photoelectric sensor with background suppression of SICK WTB8L series. It adopts Class1 650nm visible red laser light source, 5~100 mm sensing distance, with 4-turn potentiometer for sensitivity adjustment. It is PNP output type, operating voltage DC10~30V, plastic housing and IP67 protection class. The package includes BEF-W100-A mounting bracket. It achieves highly accurate detection of tiny objects for high-speed automated production systems. Brand new original SICK laser photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WTB8L-P2111 |
| Part No. | 6033225 |
| Product Type | Photoelectric Laser Sensor |
| Series | W8 Laser / WTB8L |
| Principle | Diffuse reflection laser photoelectric sensor with background suppression |
| Sensing Distance | 5 ~ 100 mm |
| Light Source | 650nm visible red laser, Laser Class 1 |
| Adjustment | 4-turn potentiometer |
| Output Type | PNP |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | Plastic |
| Protection Class | IP67 |
| Switching Frequency | 1000 Hz |
| Included Accessory | BEF-W100-A mounting bracket |
| Condition | New Original |
| Application | Tiny object detection, high-speed production line, packaging machinery, electronics assembly |
| Weight | 0.028 KG |
| Gross Weight | 0.055 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
