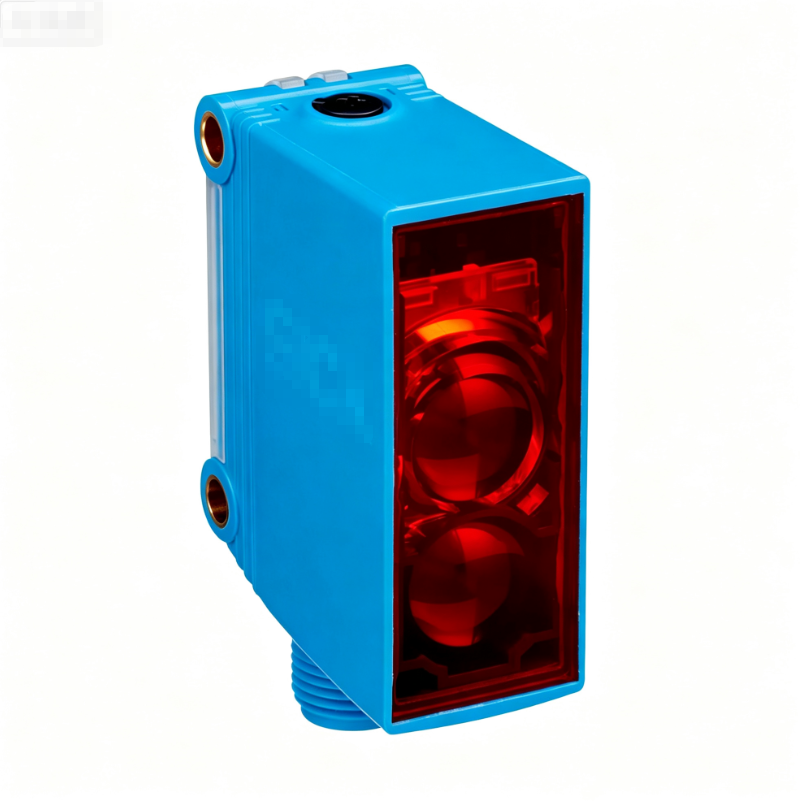

GL10-P4111 (1065878)

属性名称	属性值
Brand	SICK
Model Number	GL10-P4111
Part No.	1065878
Product Type	Photoelectric Sensor
Series	G10 / GL10
Principle	Retro-reflective photoelectric sensor, double-lens optical system
Sensing Distance	0.08 m ~ 12 m (Max 15m with PL80A reflector)
Light Source	PinPoint LED, 625nm visible red light
Output Type	PNP, Light-ON / Dark-ON switchable
Supply Voltage	10 V DC ~ 30 V DC
Housing Material	ABS/PMMA Plastic
Protection Class	IP67
Connector	M12 4-pin male connector
Switching Fre

INQUIRY

Product Details

Product Tags

Product Overview

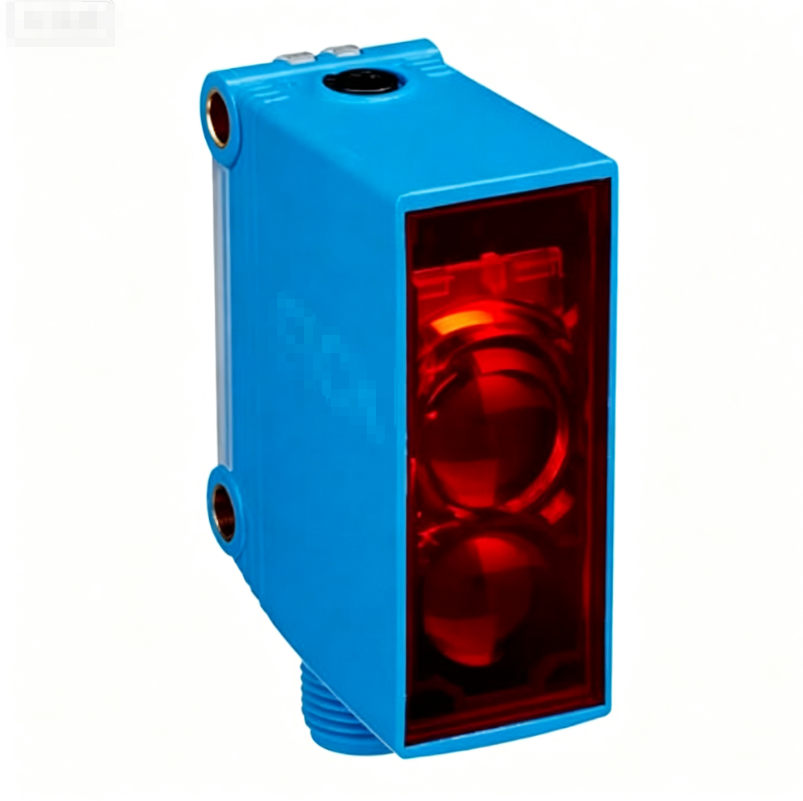

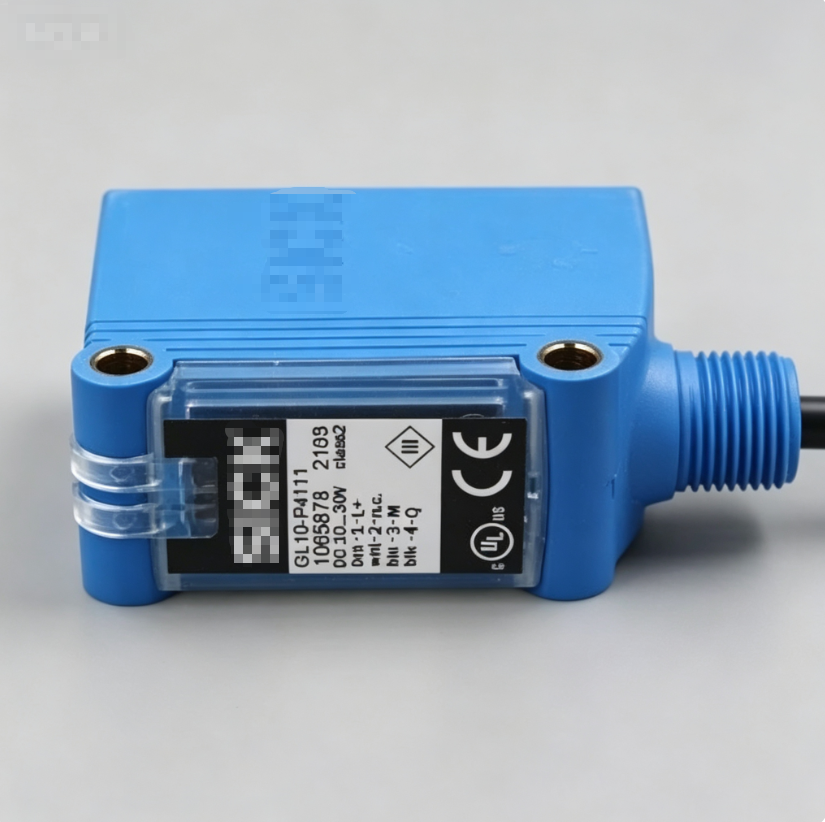

GL10-P4111 (Part No.1065878) is a compact retro-reflective photoelectric sensor from SICK GL10 series. It is equipped with PinPoint 625nm visible red LED light source, sensing range 0.08 m ~12 m, maximum 15m when matched with PL80A reflector. It supports PNP output with switchable Light-ON / Dark-ON function. It uses ABS/PMMA plastic housing, IP67 protection rating, M12 4-pin male connector and powered by DC10~30V. It provides reliable object detection for general industrial automation. Brand new original SICK photoelectric sensor.

属性名称	属性值
Brand	SICK
Model Number	GL10-P4111
Part No.	1065878
Product Type	Photoelectric Sensor
Series	G10 / GL10
Principle	Retro-reflective photoelectric sensor, double-lens optical system
Sensing Distance	0.08 m ~ 12 m (Max 15m with PL80A reflector)
Light Source	PinPoint LED, 625nm visible red light
Output Type	PNP, Light-ON / Dark-ON switchable
Supply Voltage	10 V DC ~ 30 V DC
Housing Material	ABS/PMMA Plastic
Protection Class	IP67
Connector	M12 4-pin male connector
Switching Frequency	1000 Hz
Condition	New Original
Application	Object detection, conveyor, packaging machinery, material handling
Weight	0.035 KG
Gross Weight	0.06 KG
Place of Origin	Germany
MOQ	1 Piece
Warranty	12 Months
