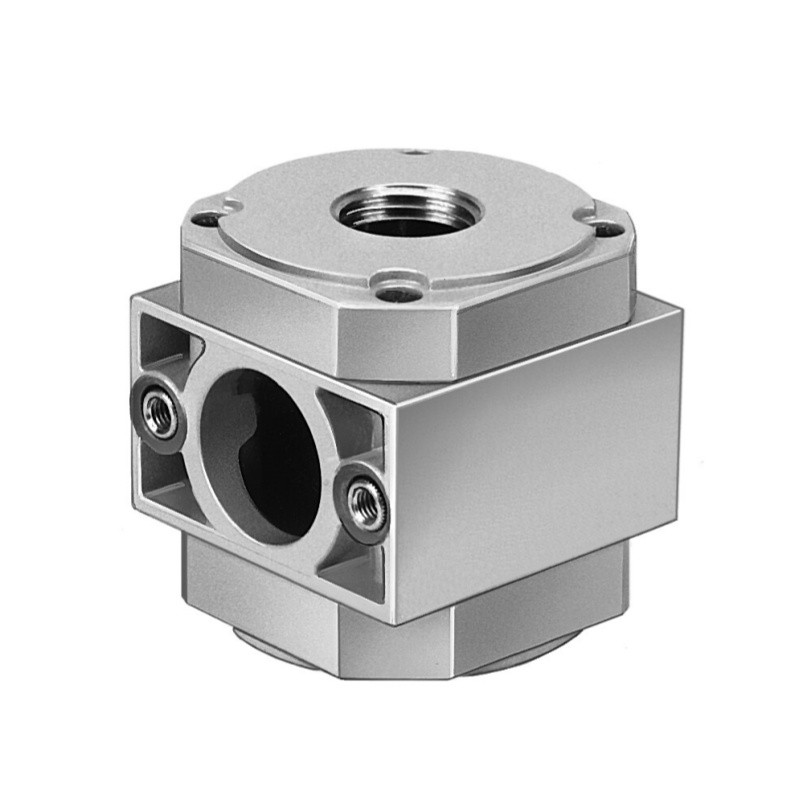

FRM-D-MAXI
Product Overview
FRM-D-MAXI, Part No.170686, belongs to Festo D-MAXI modular air preparation system. It is a pneumatic branching module, realizing main air channel straight-through and side branch air tapping. Main port G3/4 for large flow main air line, auxiliary G1/4 port for small branch circuit supply. Modular stacking design, can be assembled with D-MAXI filter, regulator and lubricator to form integrated air service unit. Suitable for large flow pneumatic main pipeline distribution in heavy-duty automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | FRM-D-MAXI |
| Part No. | 170686 |
| Type | Branching module, D-MAXI air service unit |
| Main port | G3/4 |
| Auxiliary port | G1/4 |
| Nominal flow rate (1→2) | 20000 l/min |
| Working medium | Compressed air ISO 8573-1:2010 [7:-:-], inert gas |
| Working pressure | 0 ~ 16 bar |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Zinc die casting |
| Weight | 442.00 g |
| Feature | Modular stacking for D-MAXI series, main air line pass-through with auxiliary branch port, any mounting position, PWIS compliant |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Remark | Product planned for phase-out |
