FX3-XTIO84002

属性名称	属性值
Brand	SICK
Model	FX3-XTIO84002
Order No.	1044125
Product Type	Safety I/O Extension Module
Series	Flexi Soft
Safety Input	8 safety inputs
Test Output	2 test outputs
Safety Output	4 safety outputs
Bus Interface	FLEXBUS+
Connection	Spring terminal
Power Supply	Powered via FLEXBUS+
Fast Shutdown Time	8 ms
Safety Grade	SIL3, PL e, Category 4
Housing Material	Plastic
Mounting	DIN rail mount
IP Rating	IP20
Operating Temperature	-20℃~+55℃
Feature	Flexi Soft safety I/O module,8

INQUIRY

Product Details

Product Tags

Product Overview

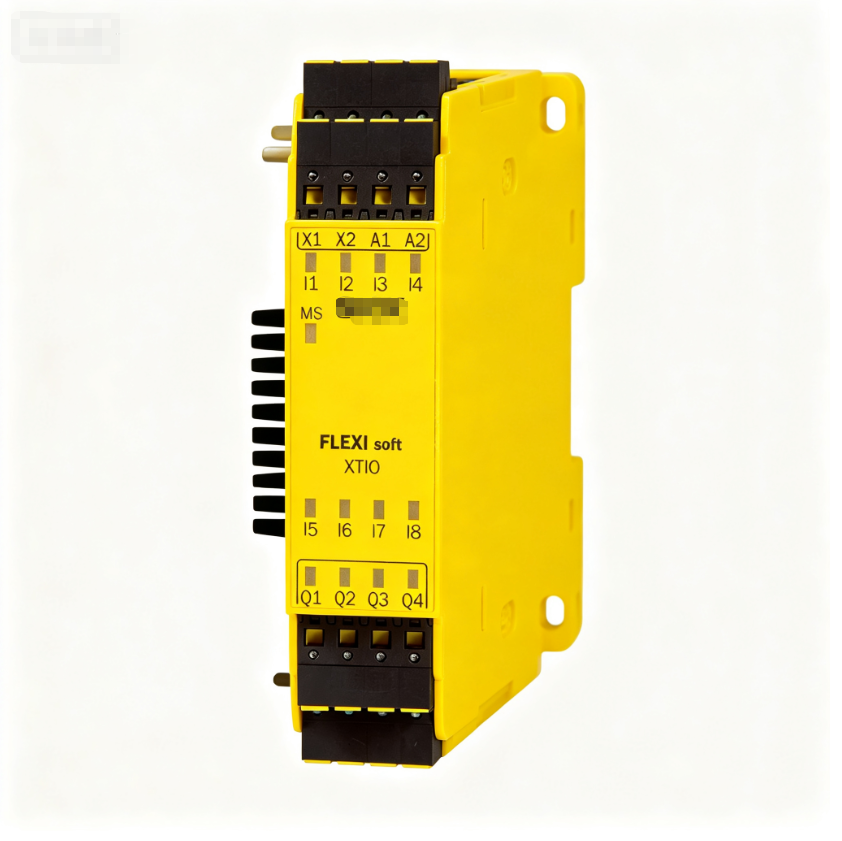

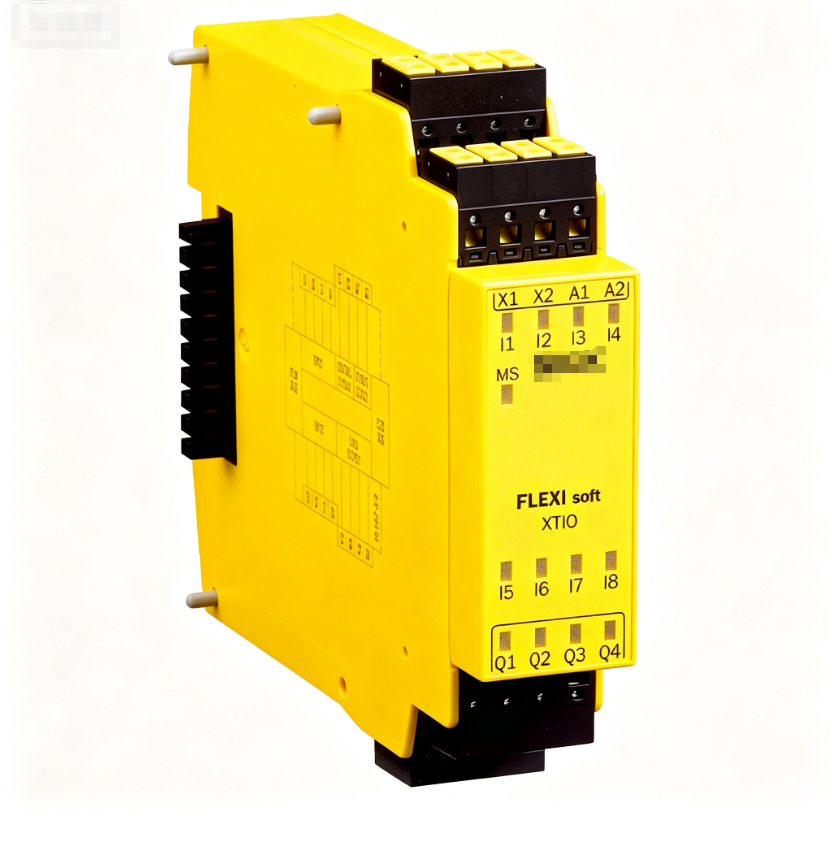

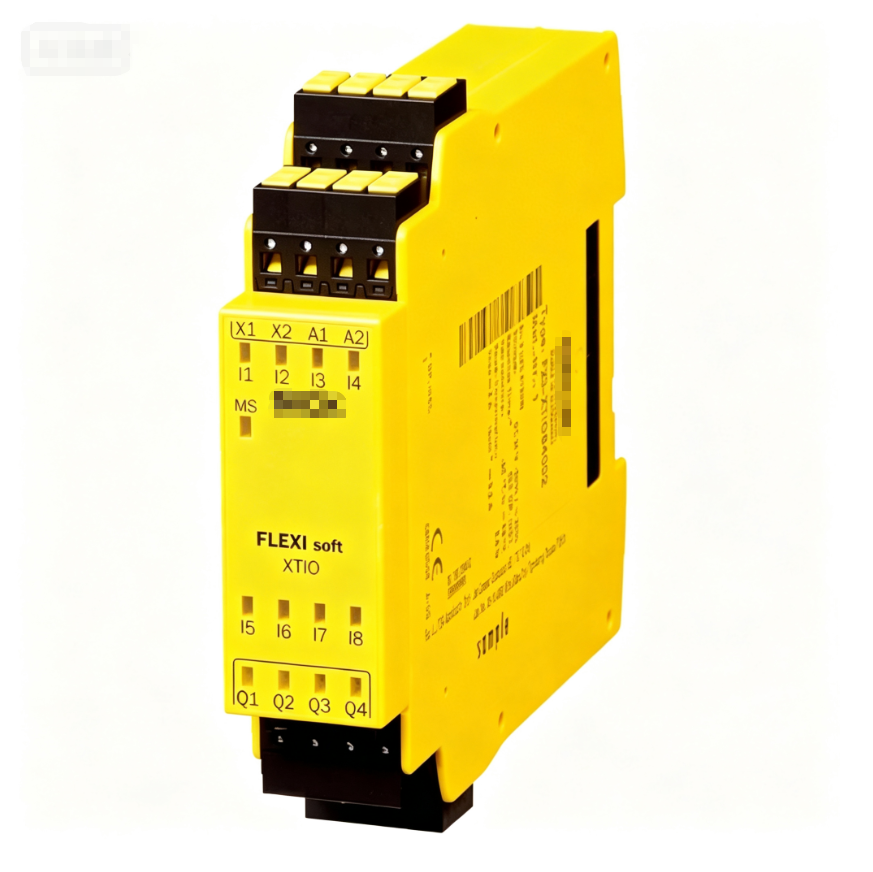

FX3-XTIO84002 is SICK Flexi Soft safety I/O extension module, order number 1044125. It is used to expand the I/O points of Flexi Soft safety controller system. It has 8 safety inputs, 2 test outputs and 4 safety outputs, connected through FLEXBUS+ bus interface. Spring terminal wiring design, DIN rail mounting. It meets SIL3, PL e, Category 4 safety level. IP20 protection grade, suitable for installation inside electrical cabinet. It helps users build flexible and reliable machine safety control solutions.

属性名称	属性值
Brand	SICK
Model	FX3-XTIO84002
Order No.	1044125
Product Type	Safety I/O Extension Module
Series	Flexi Soft
Safety Input	8 safety inputs
Test Output	2 test outputs
Safety Output	4 safety outputs
Bus Interface	FLEXBUS+
Connection	Spring terminal
Power Supply	Powered via FLEXBUS+
Fast Shutdown Time	8 ms
Safety Grade	SIL3, PL e, Category 4
Housing Material	Plastic
Mounting	DIN rail mount
IP Rating	IP20
Operating Temperature	-20℃~+55℃
Feature	Flexi Soft safety I/O module,8 safety inputs,4 safety outputs,DIN rail mounted,IP20 internal use,SIL3 PL e,extend safety controller I/O points
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.21 KG
Net Weight	0.17 KG
Place of Origin	Germany
