QS-3/8-8
Product Overview

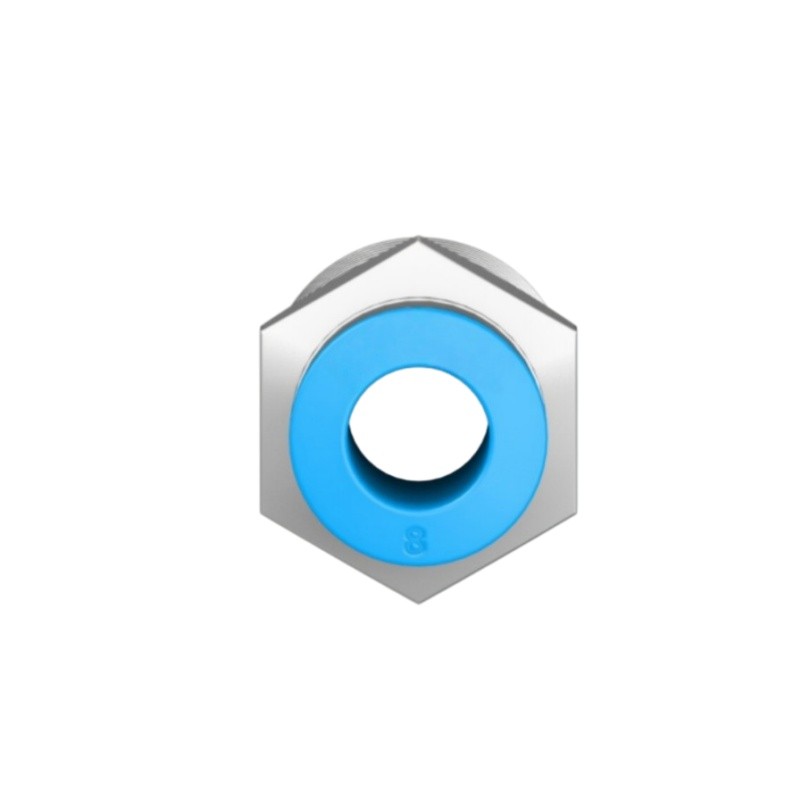

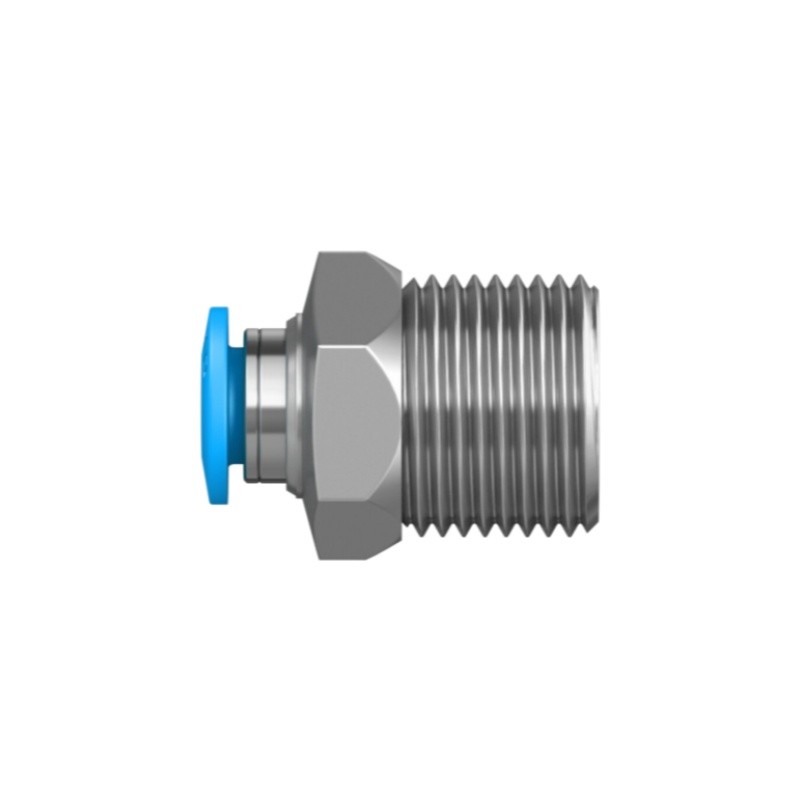

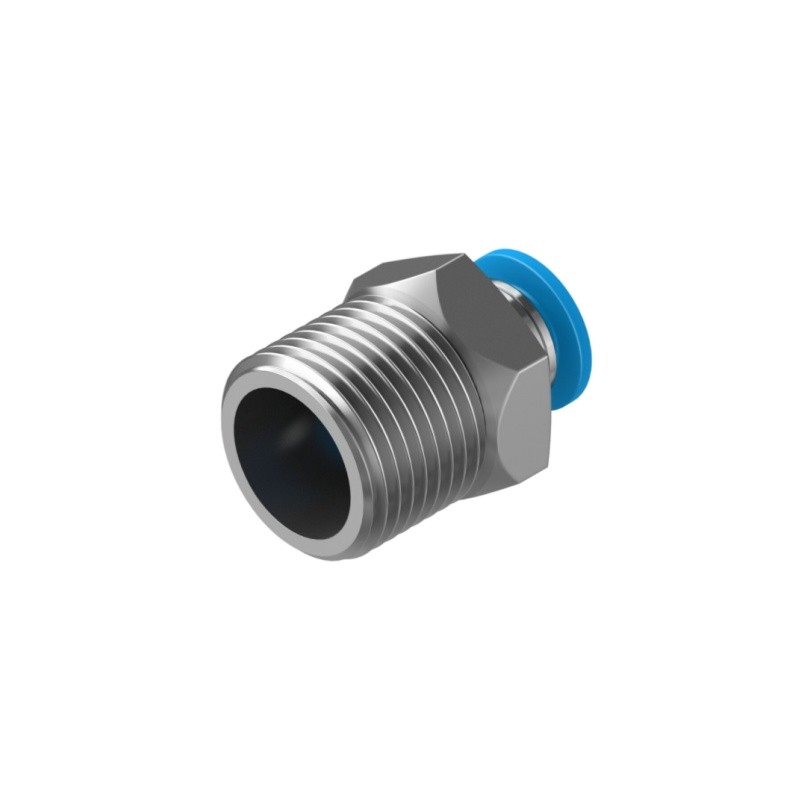

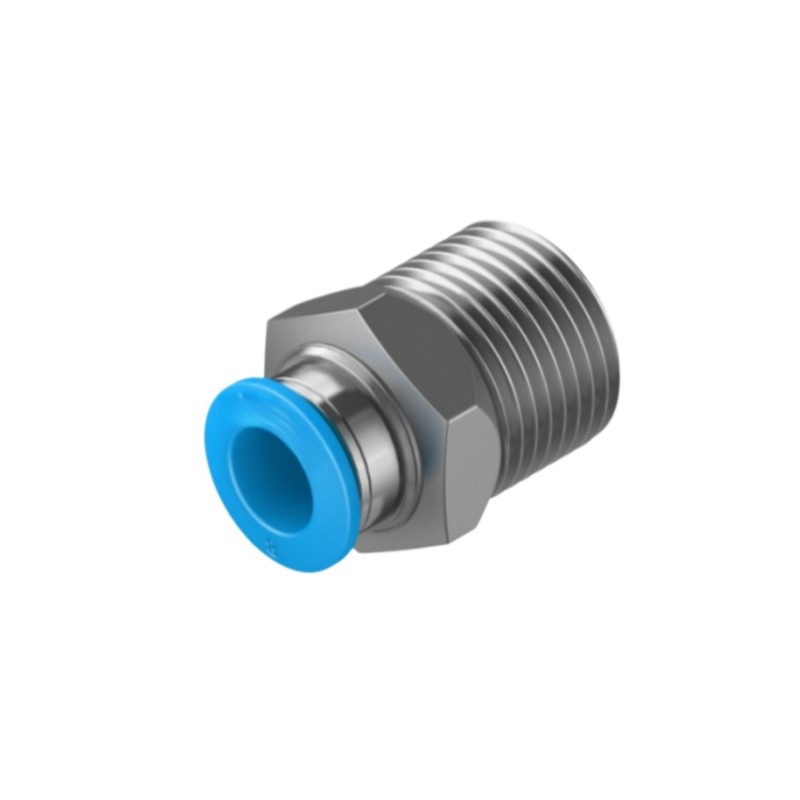

QS-3/8-8 (Part No.153006) is Festo QS series straight push-in pneumatic fitting. It adopts R3/8" male thread, suitable for 8mm OD pneumatic tube. Nickel-plated brass body, POM release ring, NBR seal and high-alloy stainless steel clamping element. Working pressure -0.95~14 bar, ambient temperature -10~80℃. Push-pull quick connect design, tool-free assembly and disassembly. Compact structure, reliable sealing, RoHS compliant. Widely used in compressed air pipelines of industrial automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QS-3/8-8 |
| MPN | 153006 |
| Product Type | Pneumatic Push-in Fitting |
| Series | QS Series |
| Structure | Straight Male Thread Connector |
| Thread Spec | R3/8" Male Thread |
| Tube Size | 8mm OD Tube |
| Nominal Diameter | 7 mm |
| Working Medium | Compressed air |
| Working Pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ 80 ℃ |
| Housing Material | Nickel-plated Brass |
| Release Ring Material | POM |
| Seal Material | NBR |
| Clamp Element | High-alloy Stainless Steel |
| Color | Blue Release Ring |
| Weight | 25.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connect, RoHS compliant |
| Application | Pneumatic Automation System |
