CPE14-M1BH-5L-1/8
Product Overview

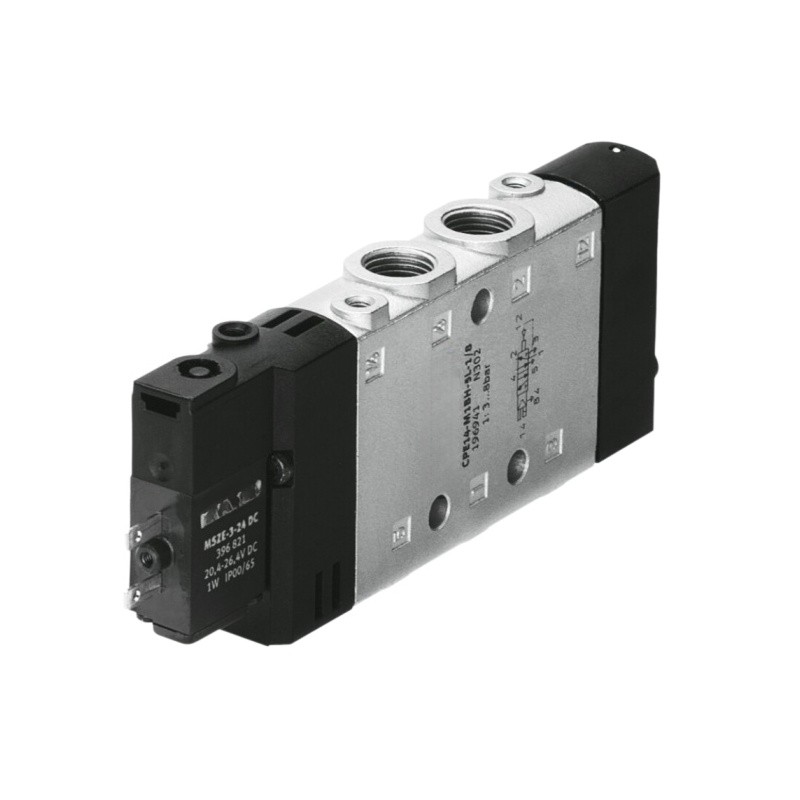

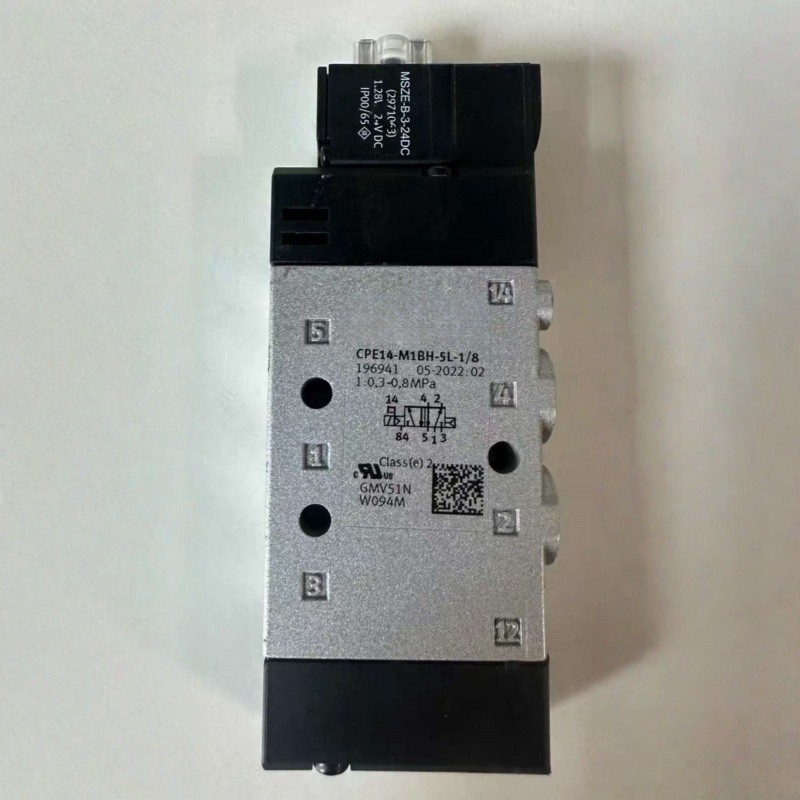

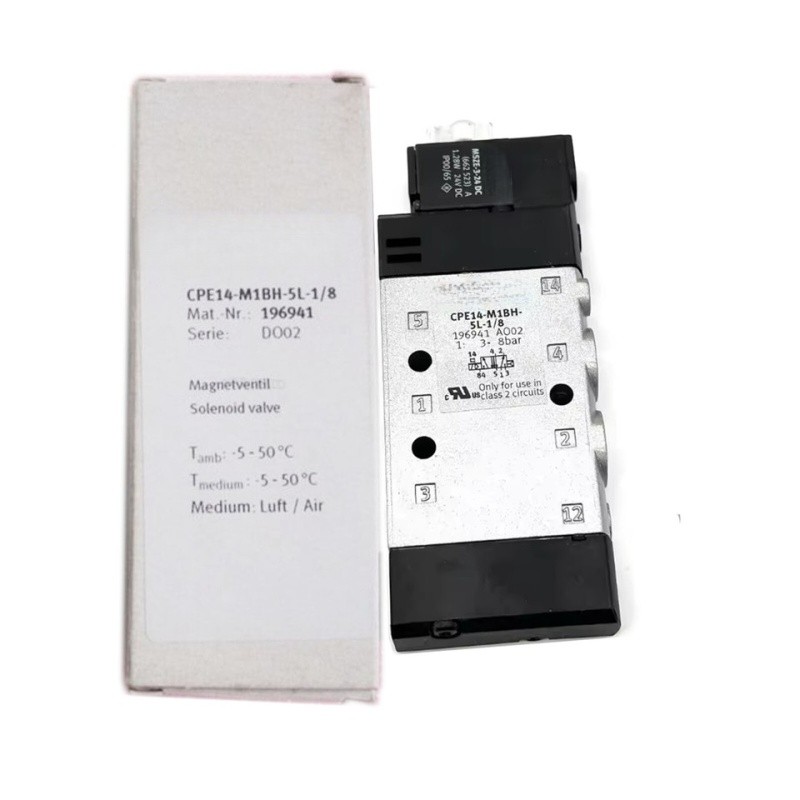

CPE14-M1BH-5L-1/8 (Part No.196941) is Festo CPE Compact Performance series 5/2-way single solenoid valve. 14mm installation width, G1/8 pneumatic port, internal pilot air supply, pneumatic spring reset. Piston gate soft seal construction, nominal flow 800 l/min, non-detent manual override, 100% continuous duty cycle. Compact size, can be installed individually or mounted on manifold bank to drive double-acting pneumatic cylinders.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPE14-M1BH-5L-1/8 |
| Part No. | 196941 |
| Product Type | Pneumatic Solenoid Valve / Compact Performance directional valve |
| Series | CPE |
| Valve Function | 5/2-way, single solenoid, pneumatic spring return |
| Valve Width | 14 mm |
| Pneumatic Connection | G1/8 |
| Supply Voltage | 24 V DC |
| Operating Pressure | 3 ~ 8 bar |
| Pilot Supply | Internal pilot |
| Standard Nominal Flow | 800 l/min |
| Switch-on Time | 20 ms |
| Switch-off Time | 42 ms |
| Manual Override | Non-detent type |
| Structure | Piston gate valve, soft seal |
| Duty Cycle | 100% continuous |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Ambient Temperature | -10 ~ +50 ℃ |
| Housing Material | High-performance plastic |
| Seal Material | NBR |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.075 kg |
| Gross Weight | 0.095 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Pneumatic double-acting cylinder control, automation assembly, handling & packaging machinery |
