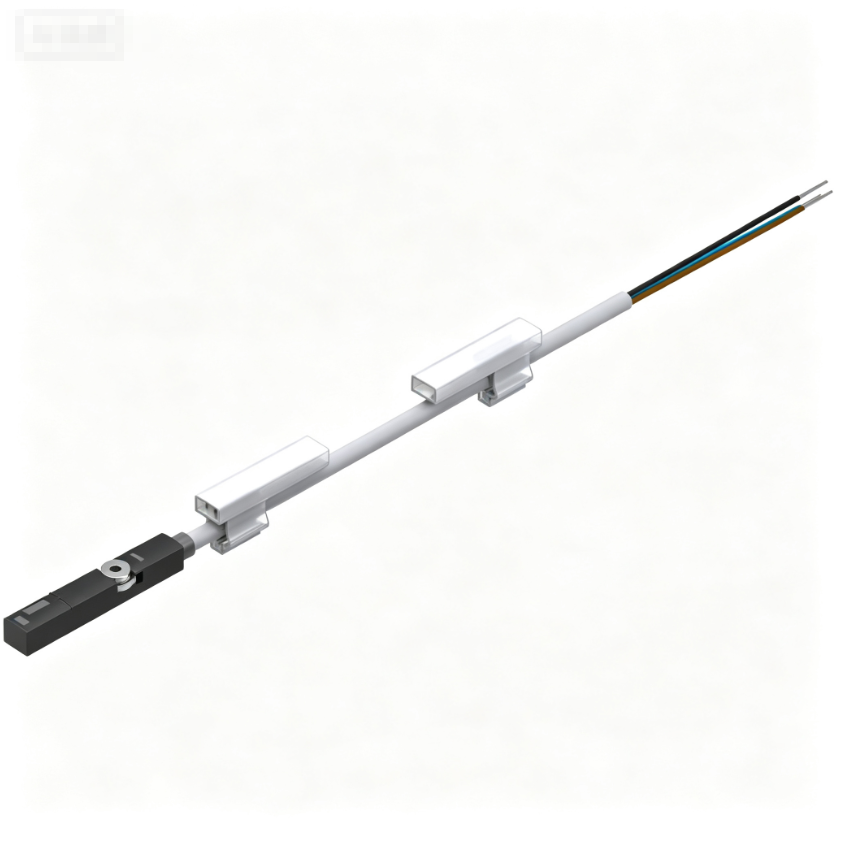

543862 SME-8M-DS-24V-K-2,5-OE
Product Overview
Item No: 543862 Model: SME-8M-DS-24V-K-2,5-OE Brand: Festo Type: Magnetic Proximity Sensor

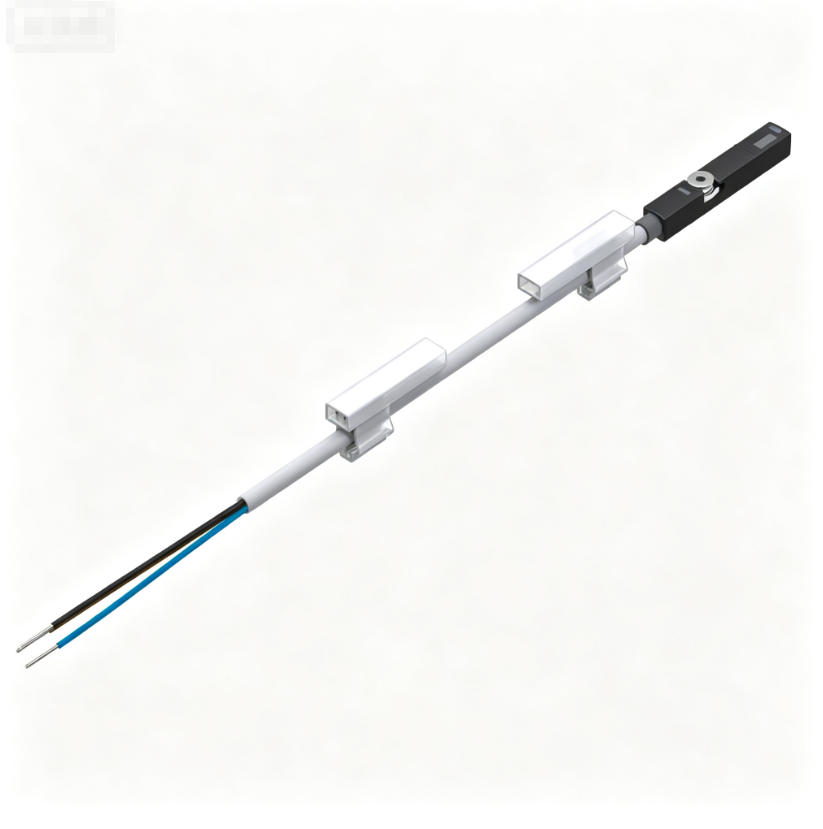

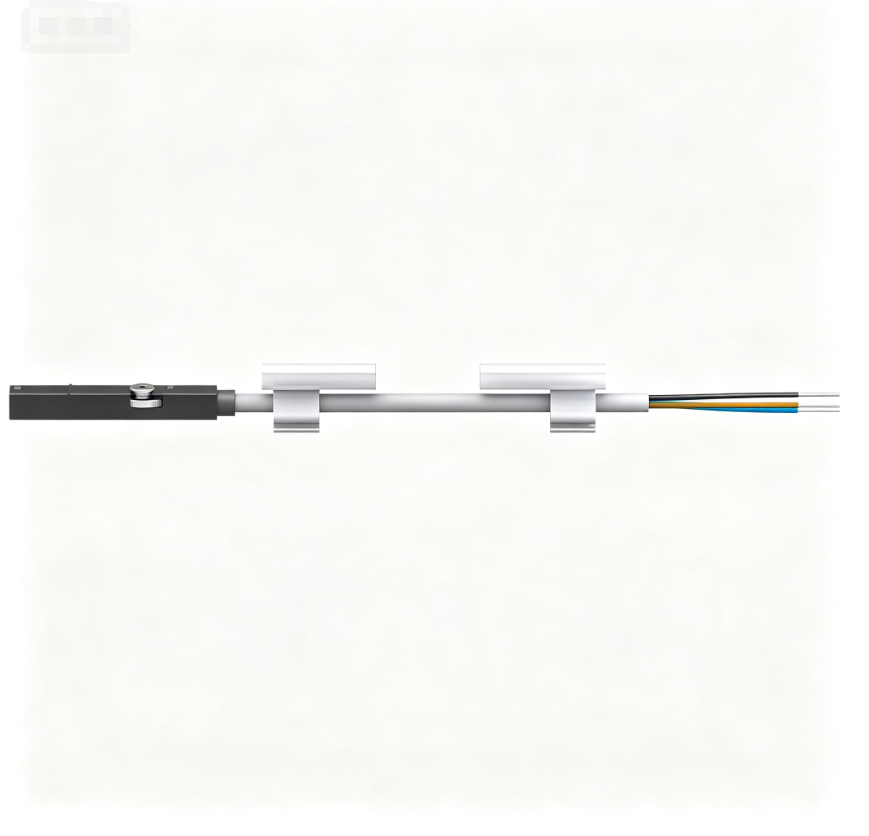

Festo SME-8M-DS-24V-K-2,5-OE magnetic proximity sensor (543862) belongs to SME T-slot sensor series. It adopts magnetic reed contact technology, mounted directly into the T-slot of Festo pneumatic cylinders to detect piston position. 2.5m long 3-core PUR cable with open wire end. Oil-resistant, robust stainless steel housing, IP68 protection, can be used in demanding industrial environments. Yellow LED shows switching status for easy on-site inspection.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | SME-8M-DS-24V-K-2,5-OE |
| Part No. | 543862 |
| Type | Magnetic Proximity Sensor / Cylinder Position Sensor |
| Series | SME |
| Measuring Principle | Magnetic reed contact |
| Switch Function | 3-wire, Normally Open (N/O), bipolar contact |
| Operating Voltage | DC 5~30V (rated DC24V) |
| Max Output Current | 500 mA |
| Max Switching Capacity | DC 10W, AC 10VA |
| Cable Length | 2.5 m |
| Cable Spec | 3-core, PUR(TPE-U) cable, open bare wire end |
| Protection Class | IP65 / IP68 |
| Ambient Temperature | -40 ~ +70 ℃ (fixed); -5 ~ +70 ℃ (moving cable) |
| Material | High-alloy stainless steel housing, PUR cable sheath |
| Feature | Oil-resistant, yellow LED status indicator, for T-slot cylinder, energy chain suitable, cULus / RCM / CE / RoHS |
| Mounting | Screw-clamped, top insert into cylinder T-slot |
| Weight | 29.8 g |
| Condition | New Original |
