ATV630D75N4
Product Overview

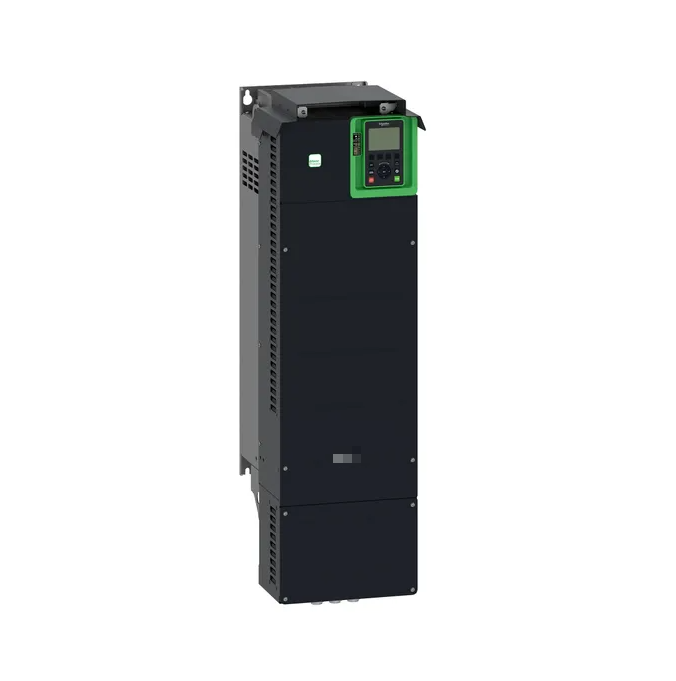

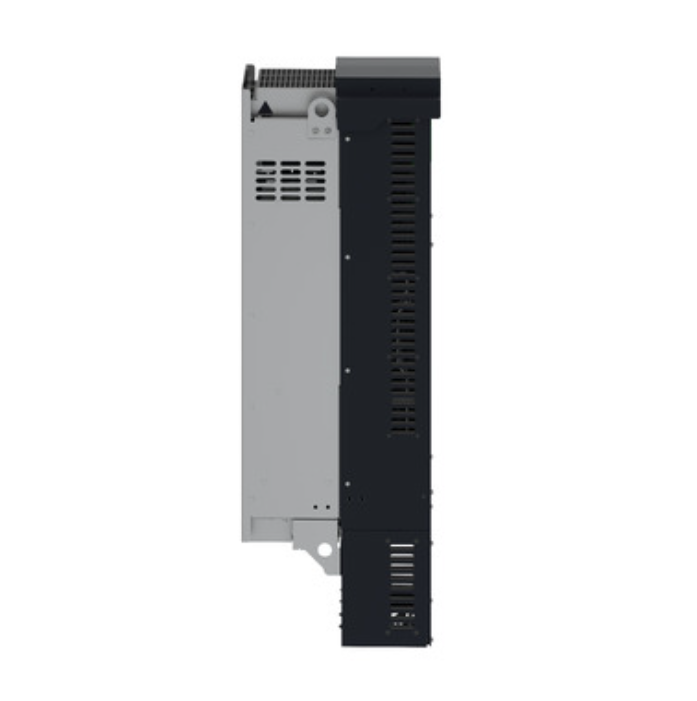

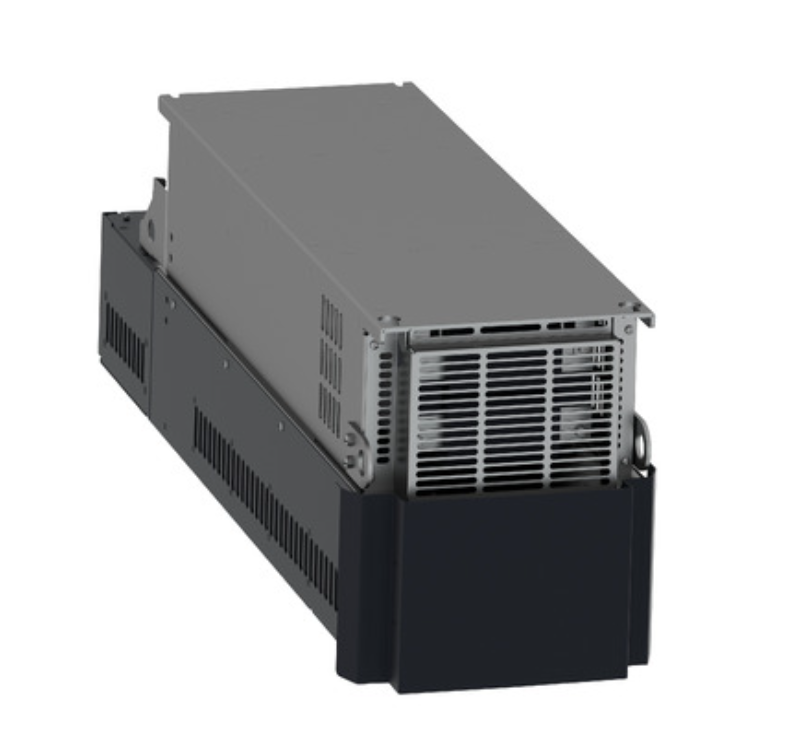

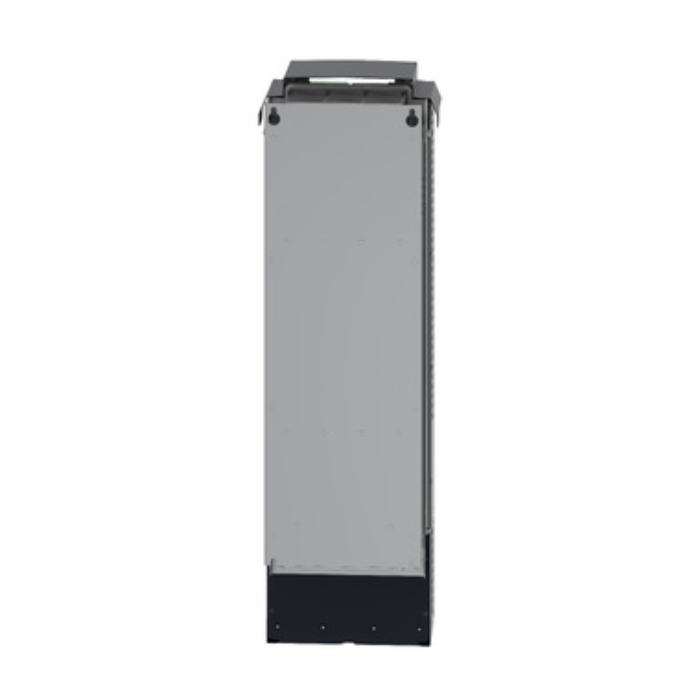

Schneider ATV630D75N4 belongs to Altivar Process ATV630 series, cost-effective industrial variable speed drive designed for process industry applications. This 3-phase 380~480V VFD supports asynchronous motors and synchronous reluctance motors, with IP21 protection grade and standard STO safety torque off function. It is equipped with built-in energy monitoring, asset monitoring, drift detection and Stop&Go energy saving function, integrated web server and C2/C3 EMC compatibility. Widely applied for pumps, fans, compressors, water supply and HVAC process control systems.
| Attribute Name | Value |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630D75N4 |
| Series | Altivar Process ATV630 |
| Type | Variable Speed Drive / VFD |
| Motor Power | 75kW Normal duty,55kW Heavy duty |
| Rated Voltage | 380~480V 3Phase |
| Output Current | 145A(Normal),110A(Heavy) |
| IP Rating | IP21 |
| Built-in Brake Unit | No (External brake resistor optional) |
| Cooling | Forced convection |
| Communication | Modbus TCP,Modbus RTU |
| Condition | New Original |
| Net Weight | 52.00kg |
| Gross Weight | 61.50kg |
