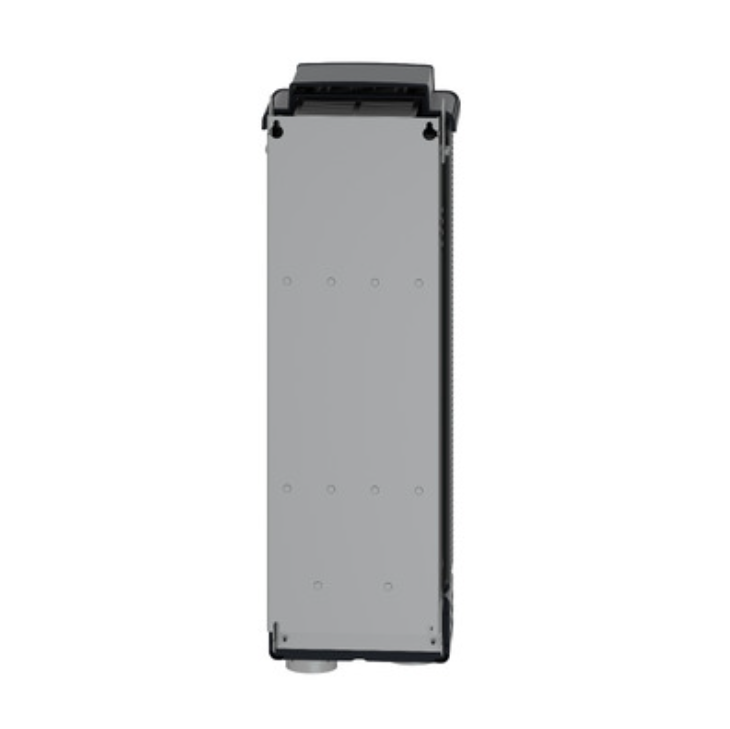

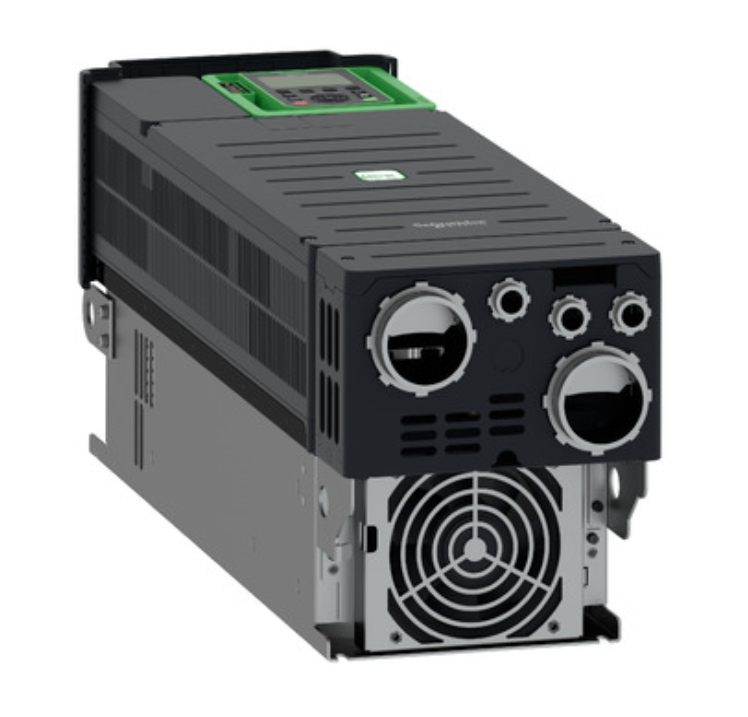

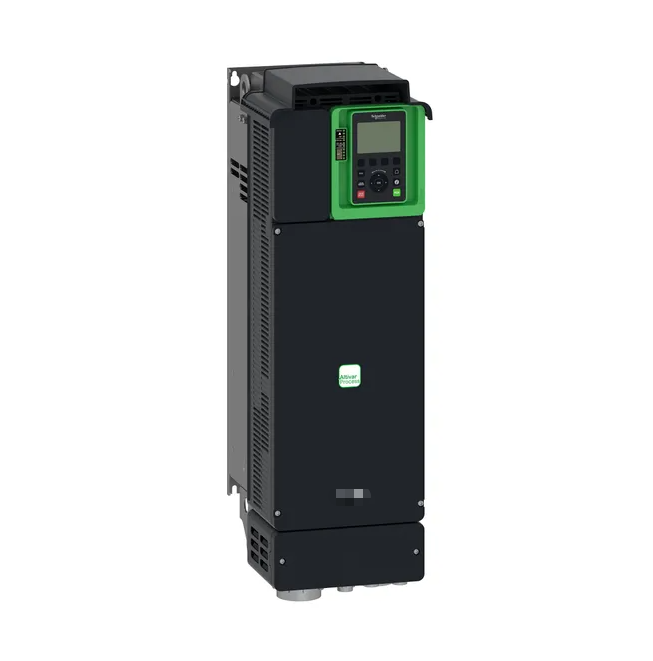

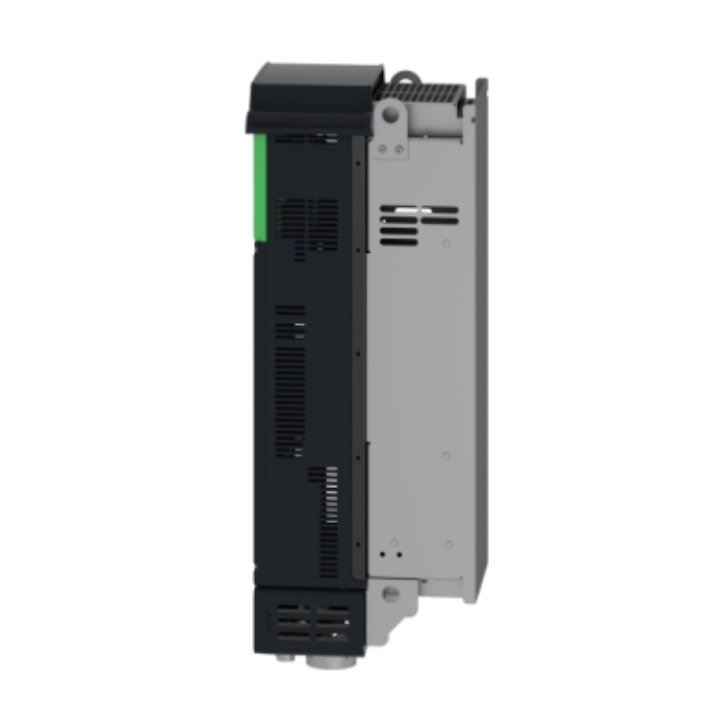

ATV630D30N4
Product Overview
Schneider ATV630D30N4 belongs to Altivar Process ATV630 series, cost-effective industrial variable speed drive for process industry. This 3-phase 380~480V VFD supports asynchronous motors and synchronous reluctance motors, IP21 protection grade with standard STO safety torque off function. It integrates energy monitoring, asset monitoring, drift detection and Stop&Go energy saving function, built-in web server and C2/C3 EMC compatibility. Widely used for pumps, fans, compressors and water supply & HVAC process control.
| Attribute Name | Value |
|---|---|
| Brand | Schneider Electric |
| Model | ATV630D30N4 |
| Series | Altivar Process ATV630 |
| Type | Variable Speed Drive / VFD |
| Motor Power | 30kW Normal duty,22kW Heavy duty |
| Rated Voltage | 380~480V 3Phase |
| Output Current | 66A(Normal),54A(Heavy) |
| IP Rating | IP21 |
| Built-in Brake Unit | No (External brake resistor optional) |
| Cooling | Forced convection |
| Communication | Modbus TCP,Modbus RTU |
| Condition | New Original |
| Net Weight | 28.00kg |
| Gross Weight | 34.20kg |
