6ES7158-0AD01-0XA0

Attribute Name	Value
Brand	Siemens
Model	6ES7158-0AD01-0XA0
Series	SIMATIC DP, DP/DP Coupler
Type	PROFIBUS-DP Coupling Module

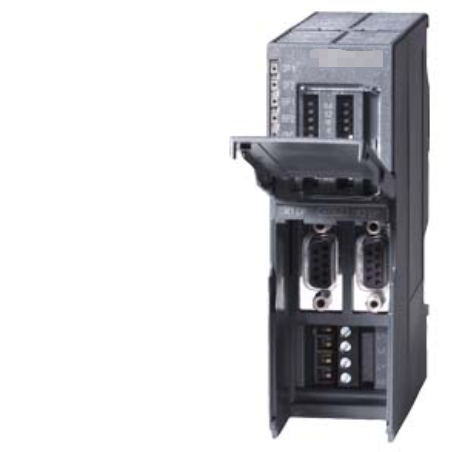

Interface	2 × 9-pin Sub-D PROFIBUS-DP ports, electrical isolation between two sides
Protocol	PROFIBUS DP, DPV1, sync & freeze supported
Baud Rate	9.6k ~ 12Mbps, different baud rate on each side
Data Exchange	Max 244 bytes input / 244 bytes output
Power Supply	Dual independent DC24V supply, typical 170mA per side
Mounting	DIN rail, S7-300 standard rail
Origin	Ge

INQUIRY

Product Details

Product Tags

Product Overview

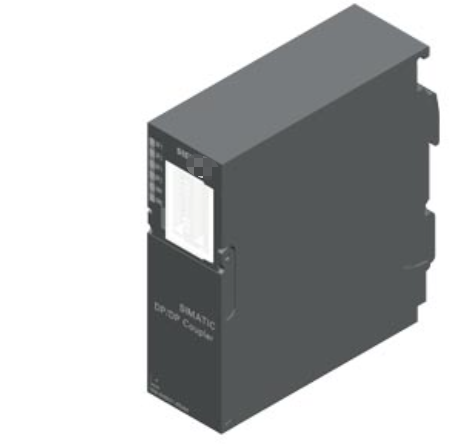

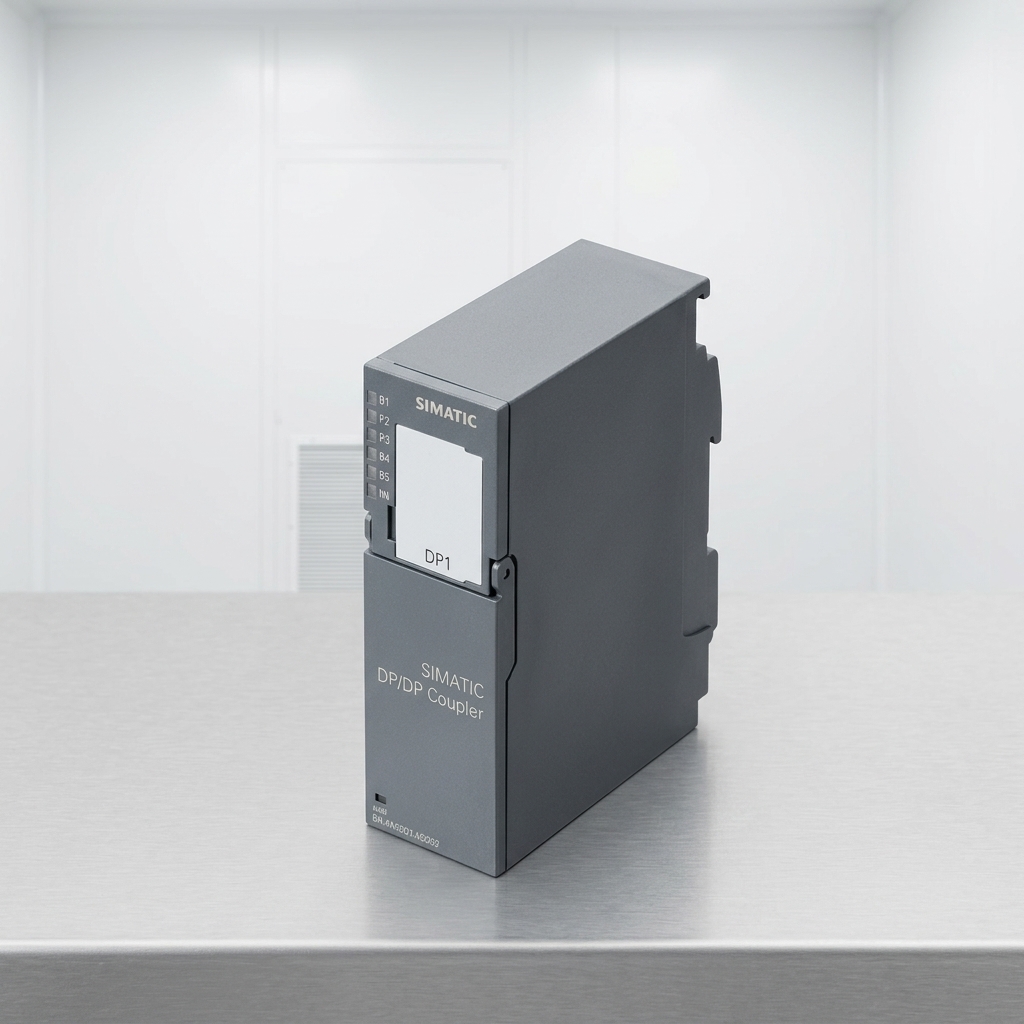

Siemens 6ES7158-0AD01-0XA0 is DP/DP Coupler for SIMATIC DP. It is used to interconnect two electrically independent PROFIBUS-DP networks. Two PROFIBUS sides are galvanically isolated and can run at different baud rates. Supports DPV1, sync and freeze functions. Max 244 bytes input and 244 bytes output data exchange. Dual-side DC24V power supply, each side powered separately. Installed on S7-300 DIN rail. This model is planned phase-out and supplied as spare part for maintenance, widely applied in PCS7 process control and S7-400H redundant system interconnection.

Attribute Name	Value
Brand	Siemens
Model	6ES7158-0AD01-0XA0
Series	SIMATIC DP, DP/DP Coupler
Type	PROFIBUS-DP Coupling Module
Interface	2 × 9-pin Sub-D PROFIBUS-DP ports, electrical isolation between two sides
Protocol	PROFIBUS DP, DPV1, sync & freeze supported
Baud Rate	9.6k ~ 12Mbps, different baud rate on each side
Data Exchange	Max 244 bytes input / 244 bytes output
Power Supply	Dual independent DC24V supply, typical 170mA per side
Mounting	DIN rail, S7-300 standard rail
Origin	Germany
Warranty	1 year
Condition	New Original, phase-out planned, spare part supply
Net Weight	0.30kg
Gross Weight	0.48kg
