6ES7307-1EA01-0AA0

Attribute Name	Value
Brand	Siemens
Model	6ES7307-1EA01-0AA0
Series	SIMATIC S7-300, PS307 Power Supply Module
Type	PLC Power Supply Module
Input Voltage	AC120/230V (85~264V)
Output	DC24V, 5A
Output Power	120W
Mounting	DIN rail on S7-300 rack, installed at leftmost slot
Indicator	DC24V OK LED indicator
Protection	Overload & short-circuit protection
Origin	Germany
Warranty	1 year
Condition	New Original, discontinued spare part
Net Weight	0.44kg
Gross Weight	0.62kg

INQUIRY

Product Details

Product Tags

Product Overview

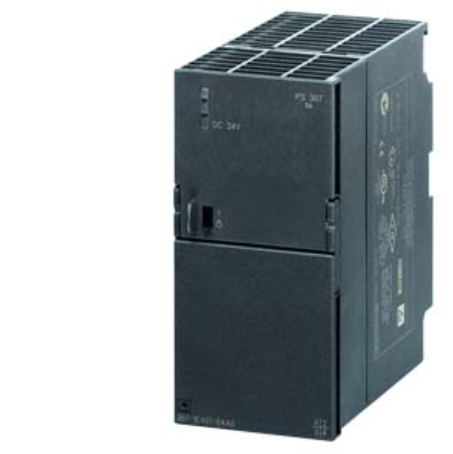

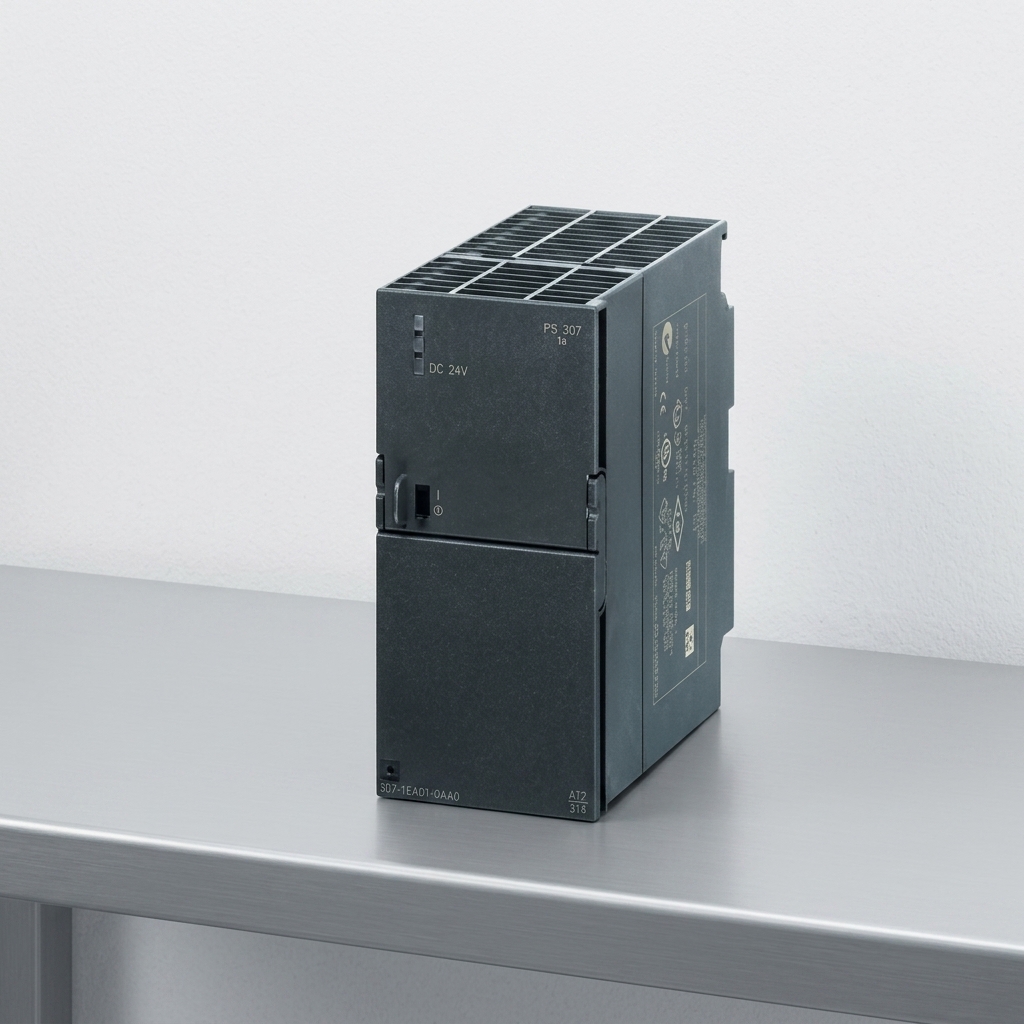

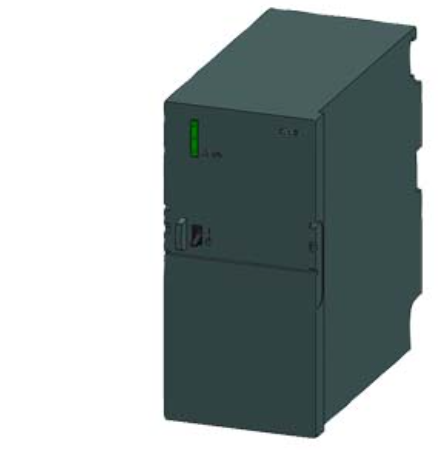

Siemens 6ES7307-1EA01-0AA0 is PS307 power supply module for SIMATIC S7-300 PLC system. It converts AC120/230V wide-range input into stable DC24V 5A (120W) output, used to power the backplane bus of S7-300 rack, including CPU, interface modules and signal modules. Equipped with DC24V OK LED status indicator. Built-in overload and short-circuit protection. Installed on the leftmost slot of S7-300 DIN rail. This model is discontinued and supplied as spare part for maintenance replacement.

Attribute Name	Value
Brand	Siemens
Model	6ES7307-1EA01-0AA0
Series	SIMATIC S7-300, PS307 Power Supply Module
Type	PLC Power Supply Module
Input Voltage	AC120/230V (85~264V)
Output	DC24V, 5A
Output Power	120W
Mounting	DIN rail on S7-300 rack, installed at leftmost slot
Indicator	DC24V OK LED indicator
Protection	Overload & short-circuit protection
Origin	Germany
Warranty	1 year
Condition	New Original, discontinued spare part
Net Weight	0.44kg
Gross Weight	0.62kg
