6ES7332-5HF00-0AB0
Product Overview

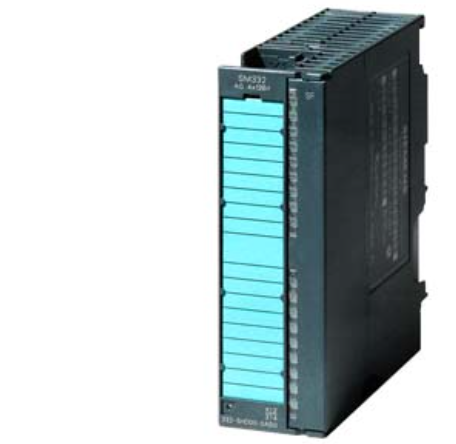

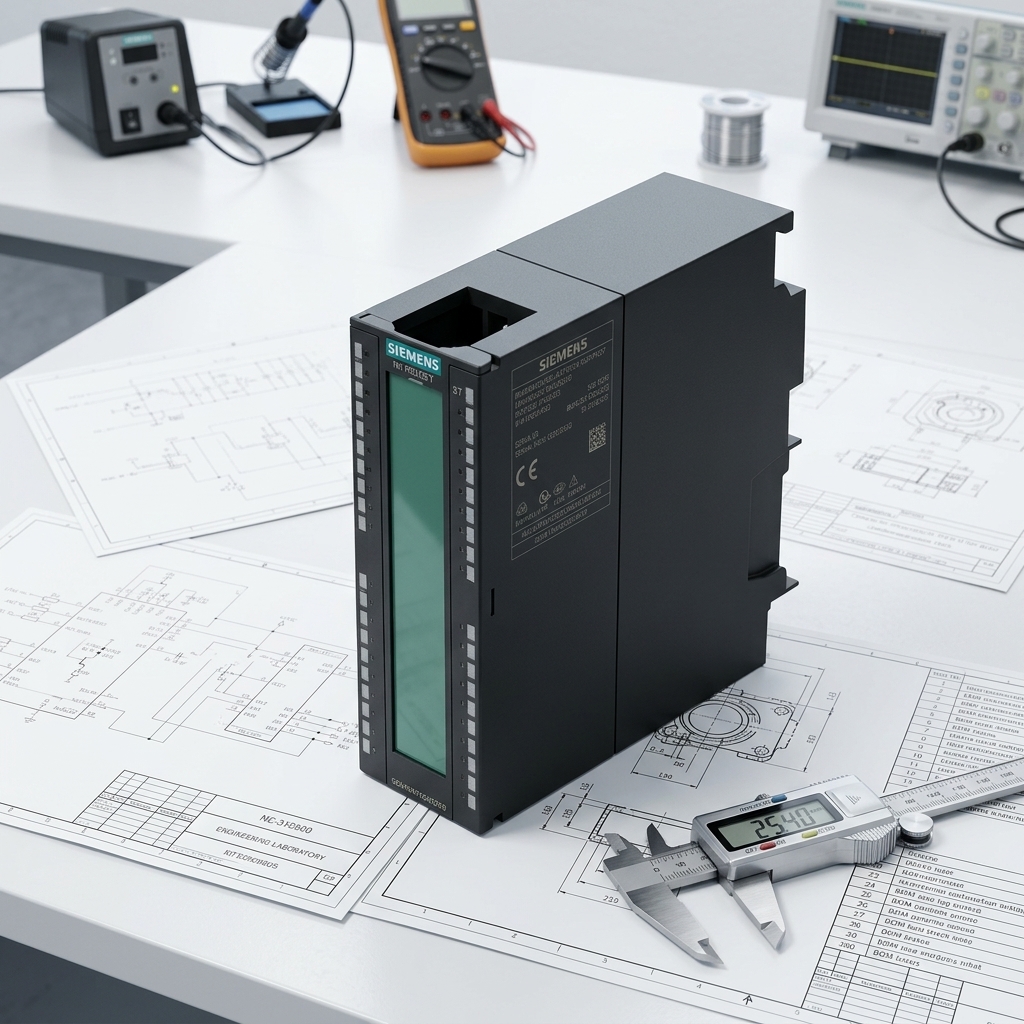

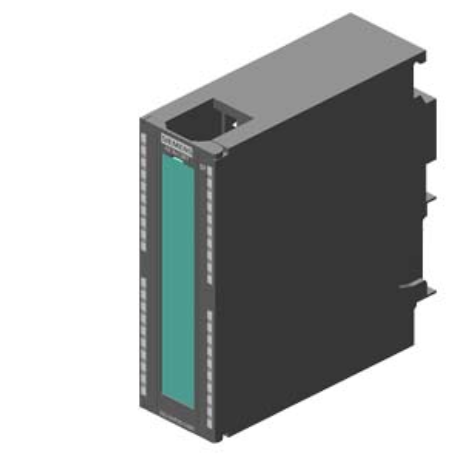

Siemens 6ES7332-5HF00-0AB0 is SM332 analog output expansion module for SIMATIC S7-300 PLC system. It features 8 analog output channels with 16-bit resolution. It supports multiple signal types: voltage ±10V / 0~10V, current 0~20mA and 4~20mA. Conversion time 0.5ms per channel. Equipped with wire break and short-circuit diagnosis function. Isolation between backplane bus and channels. Requires 40-pole front connector, DC24V power supply, DIN rail mounted on S7-300 rack. This model is discontinued and supplied as spare part for maintenance replacement.
| Attribute Name | Value |
|---|---|
| Brand | Siemens |
| Model | 6ES7332-5HF00-0AB0 |
| Series | SIMATIC S7-300, SM332 Analog Output Module |
| Type | PLC Analog Output Module |
| I/O Spec | 8AO, 16-bit resolution |
| Output Signal | Voltage: ±10V, 0~10V; Current: 0~20mA, 4~20mA |
| Conversion Time | 0.5ms per channel |
| Isolation | Isolation between backplane and channels, no inter-channel isolation |
| Diagnosis | Wire break & short circuit diagnosis, software alarm support |
| Connector | 40-pole front connector |
| Power Supply | DC24V |
| Mounting | DIN rail, S7-300 backplane |
| Origin | Germany |
| Warranty | 1 year |
| Condition | New Original, discontinued spare part |
| Net Weight | 0.32kg |
| Gross Weight | 0.50kg |
