6ES7151-1CA00-0AB0

Attribute Name	Value
Brand	Siemens
Model	6ES7151-1CA00-0AB0
Series	SIMATIC ET200S, IM151-1 Interface Module
Type	PROFIBUS-DP Remote Interface Module
Bus Interface	1 × 9-pin Sub-D PROFIBUS-DP
Protocol	PROFIBUS-DP, DPV0
Baud Rate	9.6k ~ 12 Mbps
Expandable Modules	Max 63 ET200S signal modules
Max IO Data	244 bytes input / 244 bytes output
Power Supply	Backplane DC24V, separate DC24V for electronic modules
Mounting	DIN rail
Origin	Germany
Warranty	1 year
Condition	New Original, discont

INQUIRY

Product Details

Product Tags

Product Overview

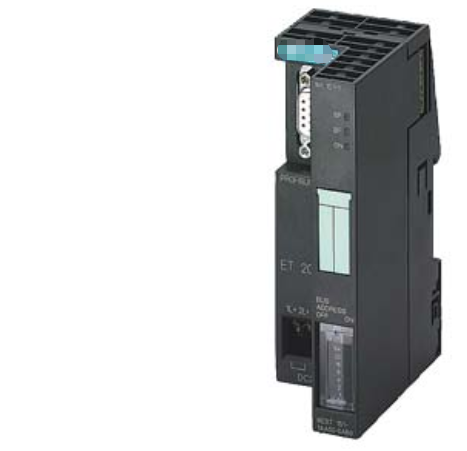

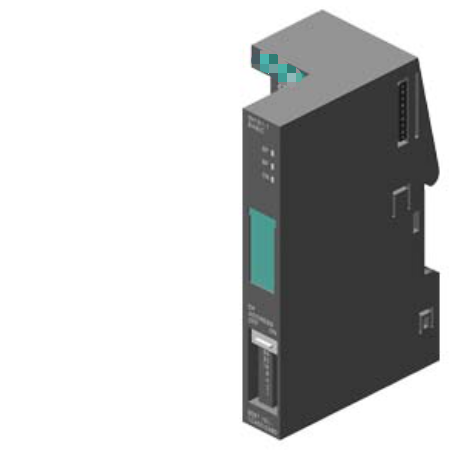

Siemens 6ES7151-1CA00-0AB0 is IM151-1 interface module for SIMATIC ET200S distributed I/O system. It acts as PROFIBUS-DP slave station, connecting ET200S signal modules to PROFIBUS DP master PLC. It supports baud rate from 9.6k up to 12Mbps. Up to 63 ET200S signal modules can be mounted on one station, maximum 244 bytes input and 244 bytes output data exchange. Separate DC24V power supply for backplane and electronics. DIN rail mounting. This model is discontinued and supplied as spare part for maintenance replacement.

Attribute Name	Value
Brand	Siemens
Model	6ES7151-1CA00-0AB0
Series	SIMATIC ET200S, IM151-1 Interface Module
Type	PROFIBUS-DP Remote Interface Module
Bus Interface	1 × 9-pin Sub-D PROFIBUS-DP
Protocol	PROFIBUS-DP, DPV0
Baud Rate	9.6k ~ 12 Mbps
Expandable Modules	Max 63 ET200S signal modules
Max IO Data	244 bytes input / 244 bytes output
Power Supply	Backplane DC24V, separate DC24V for electronic modules
Mounting	DIN rail
Origin	Germany
Warranty	1 year
Condition	New Original, discontinued spare part
Net Weight	0.18kg
Gross Weight	0.34kg
