ATV930D45N4

ATV930D45N4
Attribute Name	Value
Brand	Schneider Electric
Model	ATV930D45N4
Series	Altivar Process ATV930
Type	Variable Speed Drive / VFD
Motor Power	45kW Normal duty,37kW Heavy duty
Rated Voltage	380~480V 3Phase
Output Current	88.0A Normal,74.5A Heavy
IP Rating	IP21
Built-in Brake Unit	Yes
Cooling	Forced convection
Communication	Modbus TCP,Modbus RTU,EtherNet/IP
Condition	New Original
Net Weight	36.50kg
Gross Weight	41.20kg

Product Details

Product Tags

Product Overview

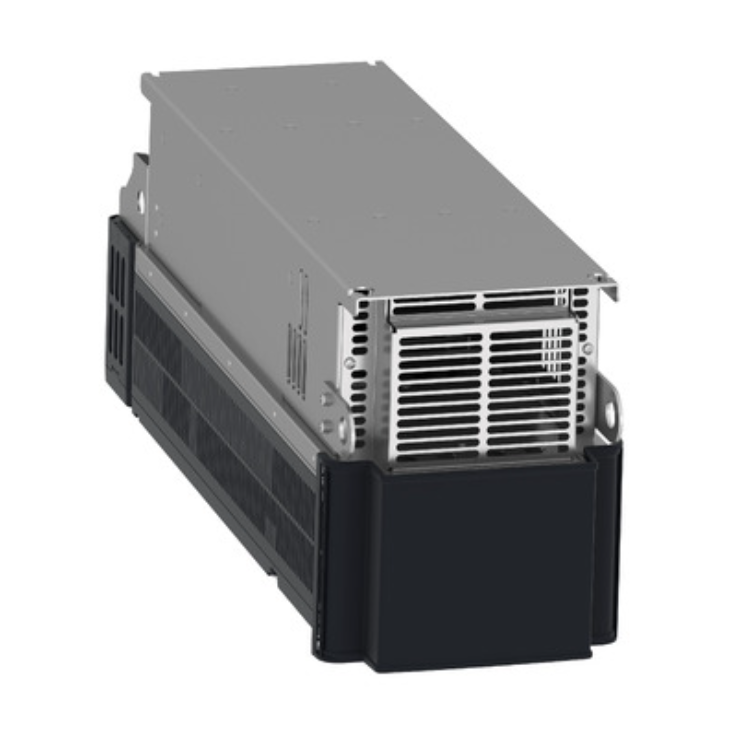

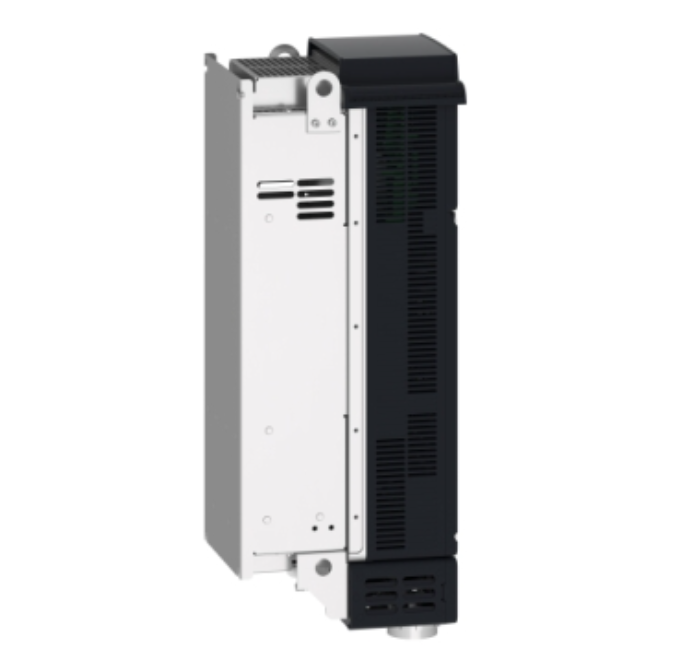

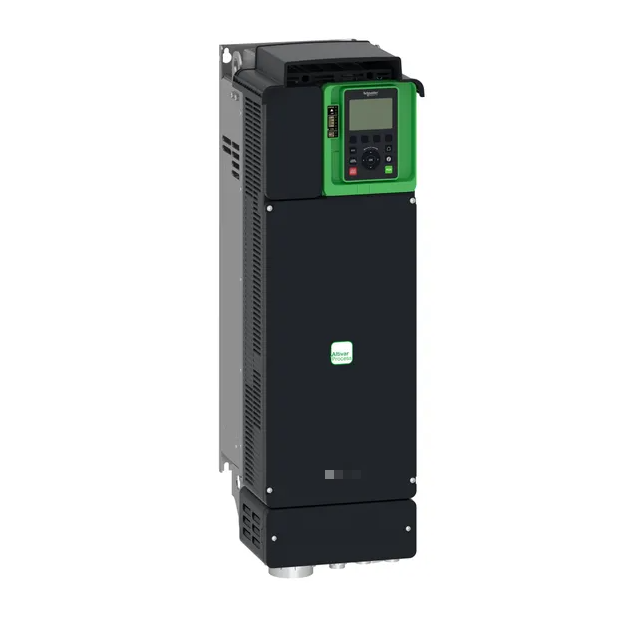

Schneider ATV930D45N4 is high-performance heavy-duty variable speed drive from Altivar Process ATV930 series, designed for demanding industrial process applications. This 3-phase 380~480V VFD supports asynchronous motors and synchronous reluctance motors. It adopts IP21 protection grade with built-in braking chopper and four quadrant operation. Equipped with STO and SS1 safety functions, embedded energy measurement dashboard, asset monitoring, drift monitoring and Stop&Go energy-saving function. Ideal for pumps, fans, compressors and conveyors in water treatment, chemical and mining industries.

Attribute NameValue
BrandSchneider Electric
ModelATV930D45N4
SeriesAltivar Process ATV930
TypeVariable Speed Drive / VFD
Motor Power45kW Normal duty,37kW Heavy duty
Rated Voltage380~480V 3Phase
Output Current88.0A Normal,74.5A Heavy
IP RatingIP21
Built-in Brake UnitYes
CoolingForced convection
CommunicationModbus TCP,Modbus RTU,EtherNet/IP
ConditionNew Original
Net Weight36.50kg
Gross Weight41.20kg
