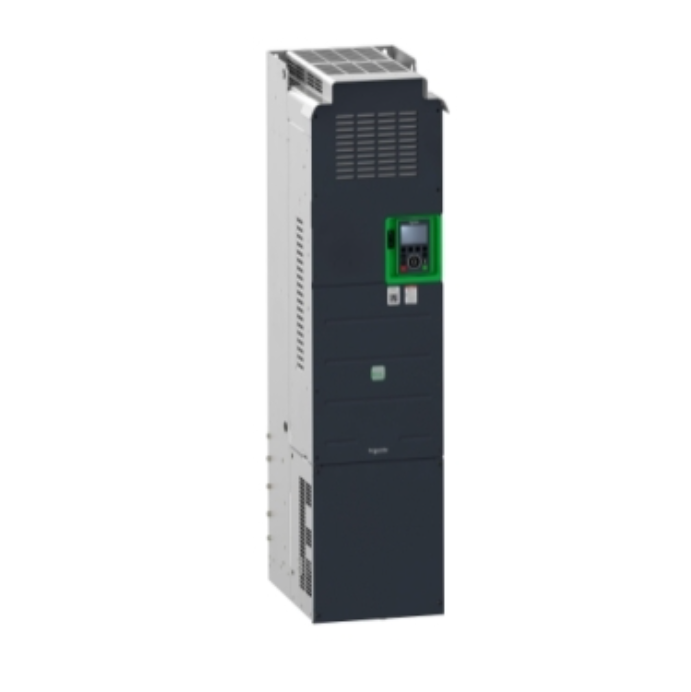

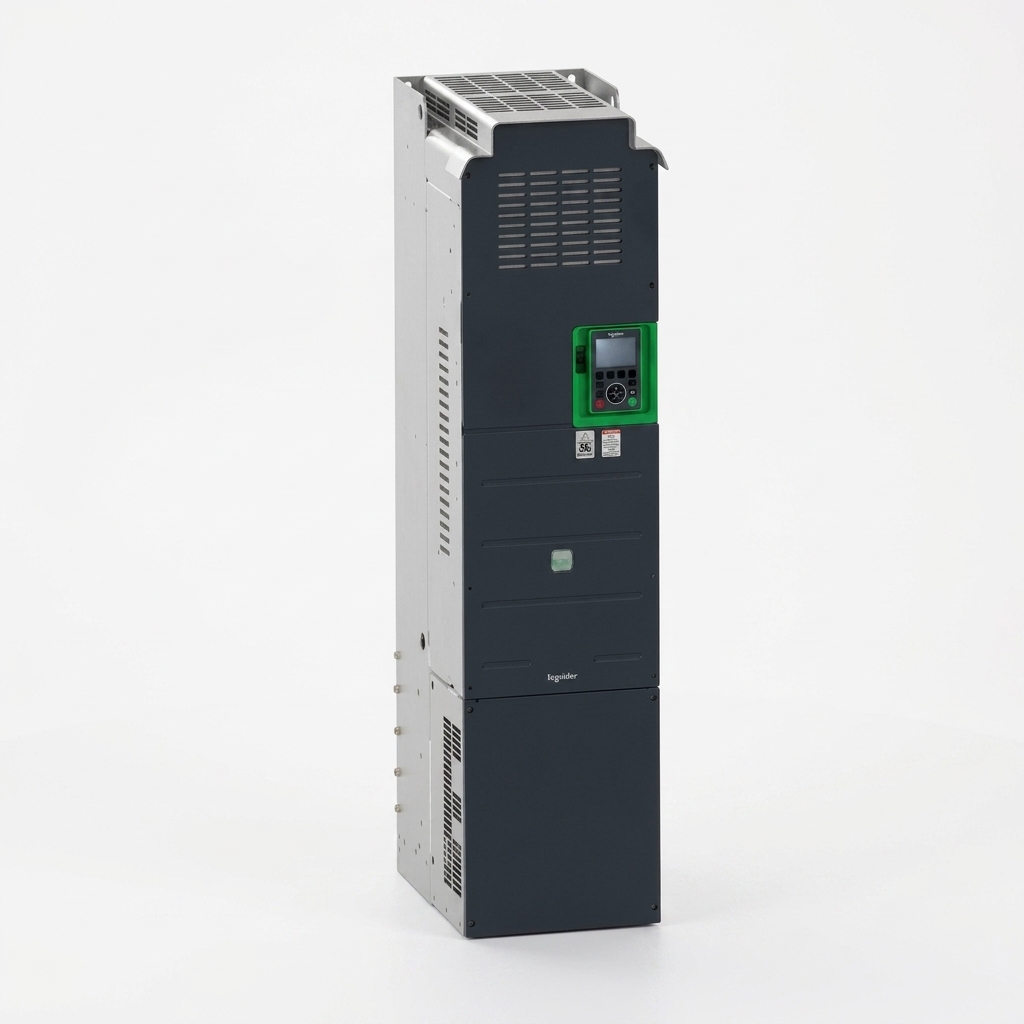

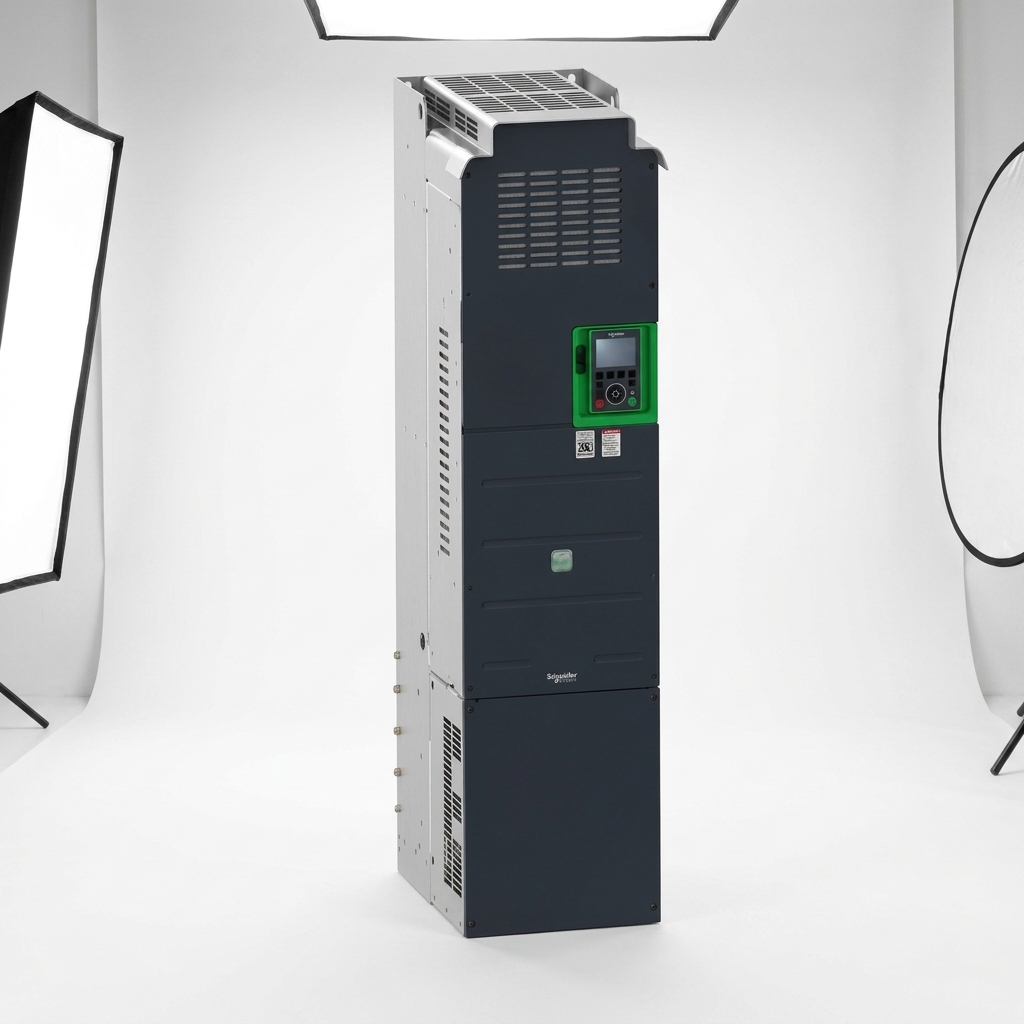

ATV930C13N4
Product Overview
Schneider ATV930C13N4 is high-performance heavy-duty variable speed drive from Altivar Process ATV930 series, designed for demanding industrial process applications. This 3-phase 380~480V VFD supports asynchronous motors and synchronous reluctance motors. It adopts IP21 protection grade with built-in braking chopper and four quadrant operation. Equipped with STO and SS1 safety functions, embedded energy measurement dashboard, asset monitoring, drift monitoring and Stop&Go energy-saving function. Ideal for large pumps, fans, compressors and heavy conveyors in water treatment, chemical and mining industries.
| Attribute Name | Value |
|---|---|
| Brand | Schneider Electric |
| Model | ATV930C13N4 |
| Series | Altivar Process ATV930 |
| Type | Variable Speed Drive / VFD |
| Motor Power | 132kW Normal duty,110kW Heavy duty |
| Rated Voltage | 380~480V 3Phase |
| Output Current | 250A Normal,211A Heavy |
| IP Rating | IP21 |
| Built-in Brake Unit | Yes |
| Cooling | Forced convection |
| Communication | Modbus TCP,Modbus RTU,EtherNet/IP |
| Condition | New Original |
| Net Weight | 118.00kg |
| Gross Weight | 129.50kg |
