QSS-4
Product Overview

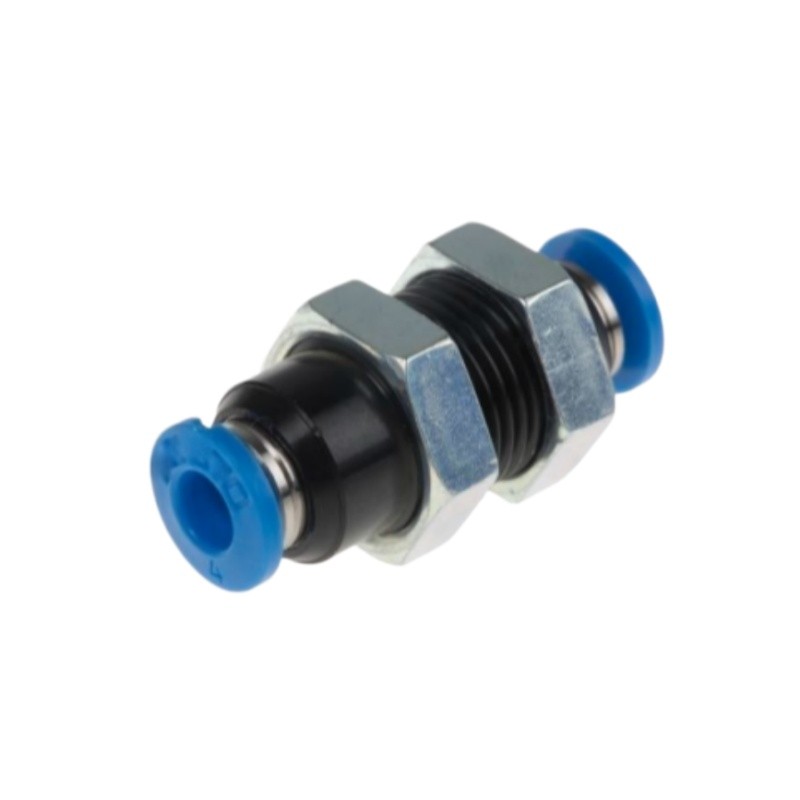

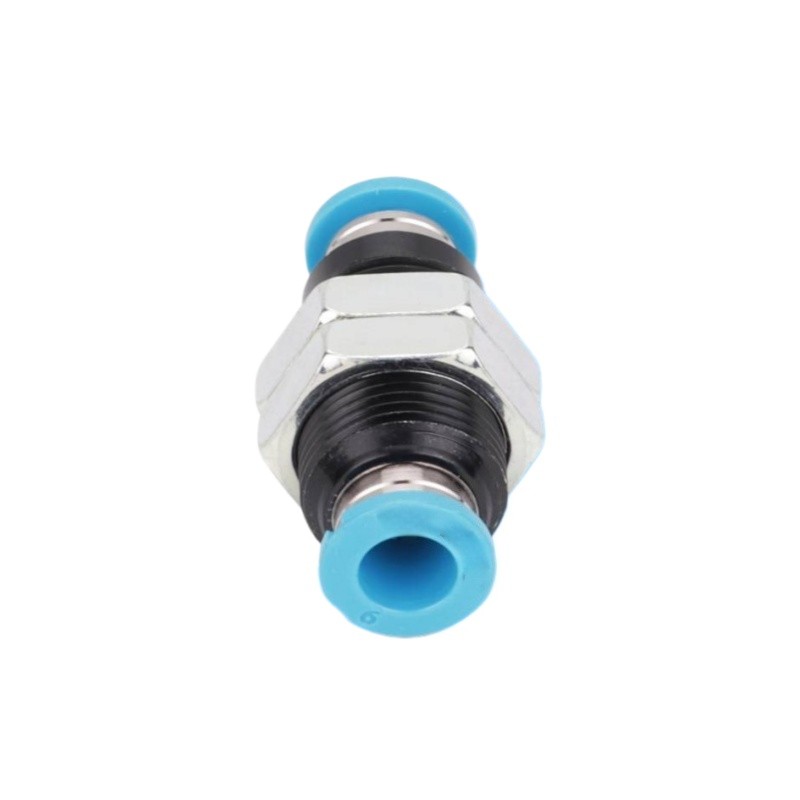

QSS-4, Part No.153074, belongs to Festo QS series straight push-in tube connector. It is a tube-to-tube joint with both ends for 4mm OD pneumatic tube, adopting push-pull quick connection principle. No threads, just insert 4mm air tube into both sides for pipeline extension. Compact size and reliable sealing, widely used for connecting same-diameter pneumatic tubes in miniature automation circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSS-4 |
| Part No. | 153074 |
| Type | Straight push-in connector, tube-to-tube |
| Tube OD | 4 mm |
| Nominal bore | 2.5 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 2.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, both sides for 4mm tube, no thread |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
