SOOE-BS-R-PNLK-T
Product Overview

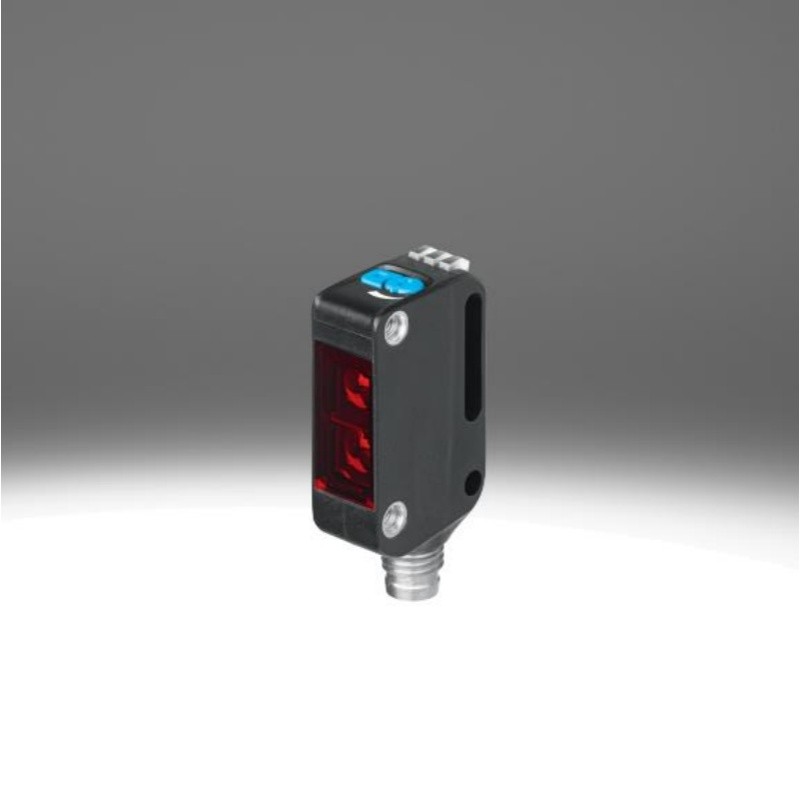

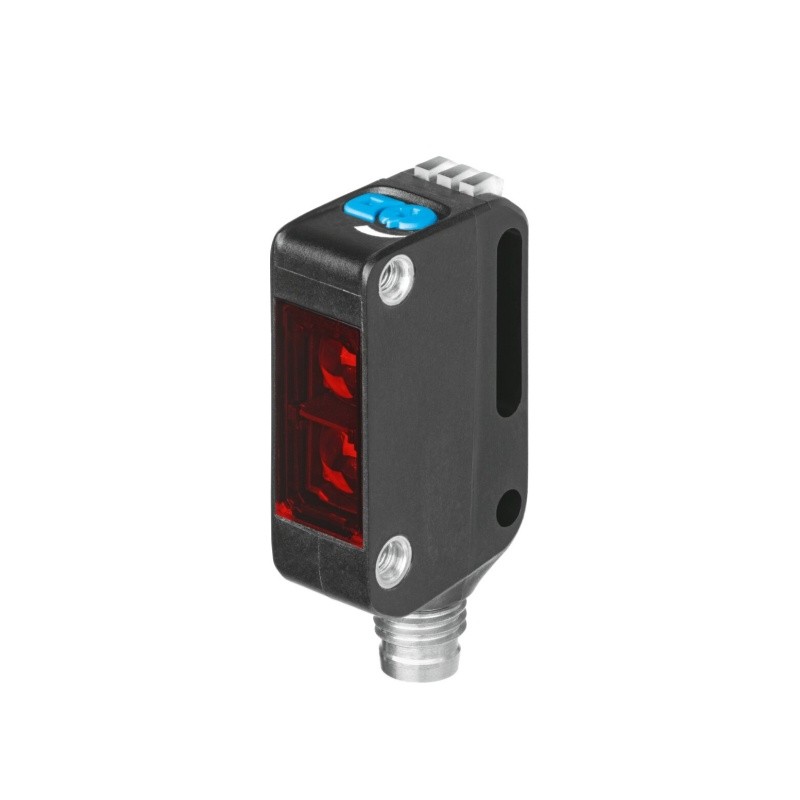

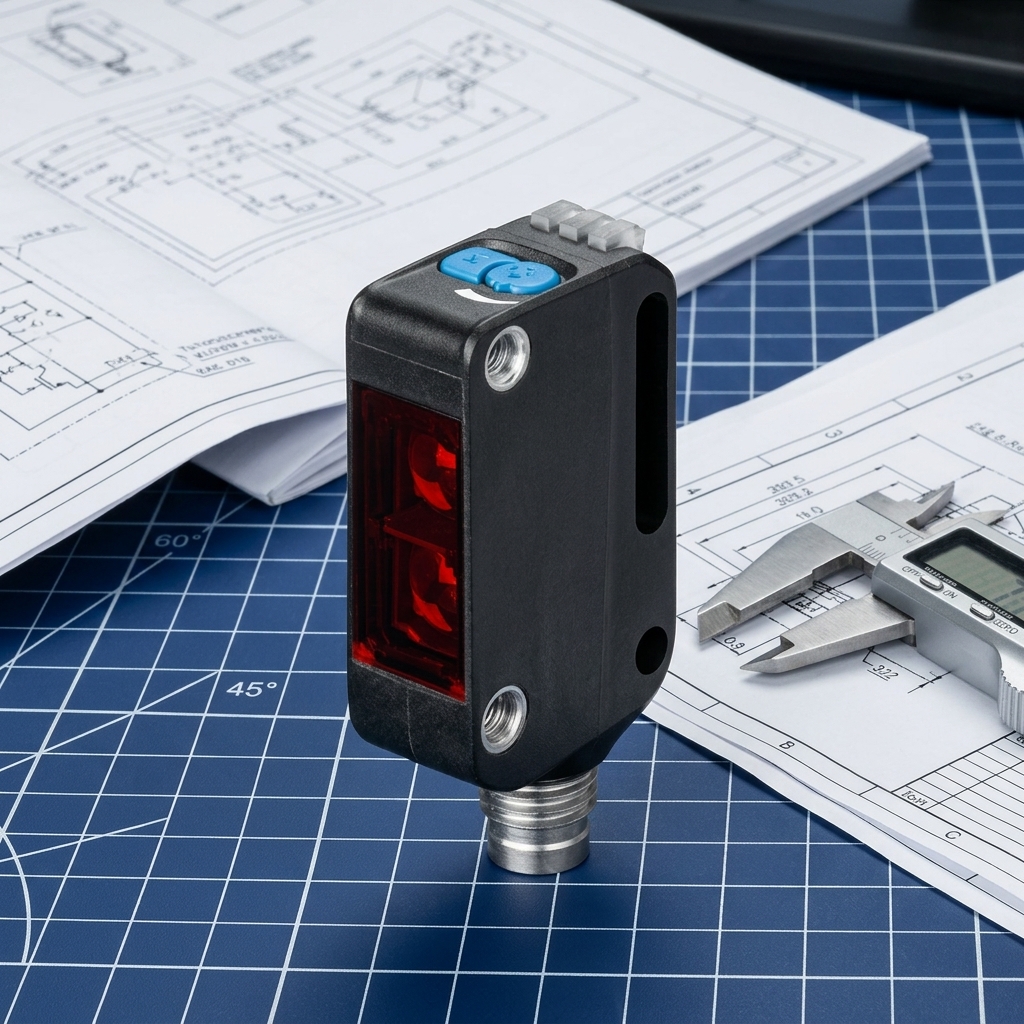

FESTO SOOE-BS-R-PNLK-T diffuse photoelectric sensor belongs to SOOE optoelectronic sensor series. It adopts diffuse reflection principle with background suppression, red LED light source, adjustable sensing range 5~350mm. Supports switchable PNP/NPN push-pull output and IO-Link V1.1 communication. M8 4-pin connector, multiple adjustment methods including teach-in, potentiometer and IO-Link parameter configuration. Block compact housing, high protection IP65/IP67/IP69K, wide temperature range -40~+60℃, stable object detection even with complex background interference, widely used for workpiece detection in pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | SOOE-BS-R-PNLK-T |
| Order No. | 8075664 |
| Product Series | SOOE |
| Product Type | Diffuse Photoelectric Sensor / Optoelectronic Sensor |
| Detection Principle | Diffuse reflection with background suppression |
| Light Source | Red LED |
| Sensing Range | 5 mm ~ 350 mm |
| Output Type | Switchable PNP / NPN, Push-pull |
| Communication | IO-Link V1.1 |
| Electrical Connection | M8 4-pin connector (PNLK-T) |
| Operating Voltage | DC 10 ~ 30V |
| No-load Current | 25 mA |
| Max Switching Frequency | 500 Hz |
| Adjustment | Teach-in / Potentiometer / IO-Link parameter setting |
| Protection Class | IP65, IP67, IP69K |
| Ambient Temperature | -40 ~ +60 ℃ |
| Housing Material | PP / PPMA |
| Feature | Background suppression, block design, IO-Link supported |
| Mounting | Any mounting position |
| Standard | EN 60947-5-2 |
| Certificate | CE, cULus, RCM, RoHS |
| Origin | Germany |
| Condition | New Original |
