QSRL-1/4-6
Product Overview

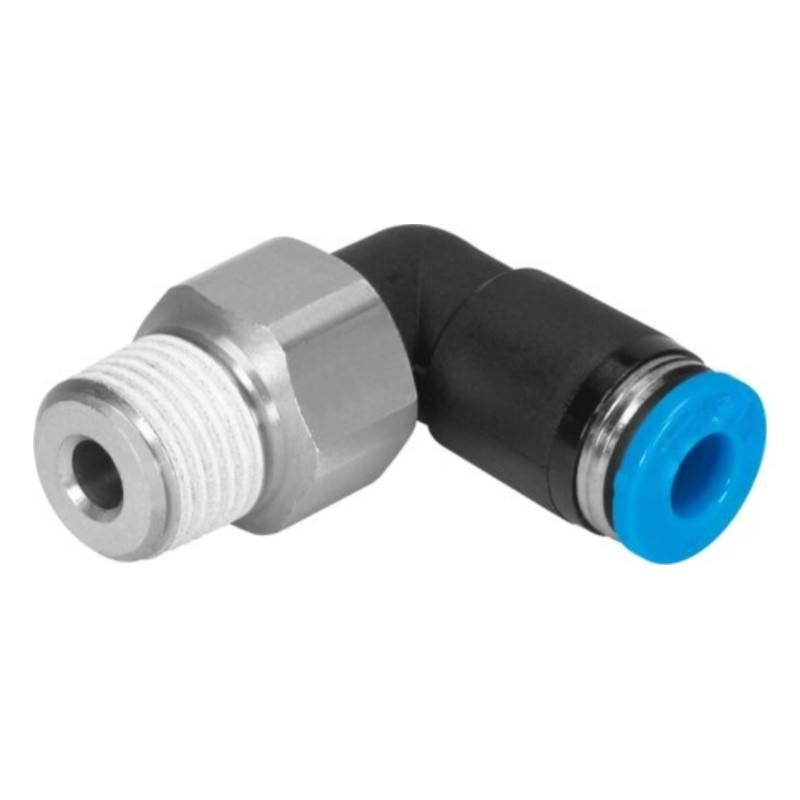

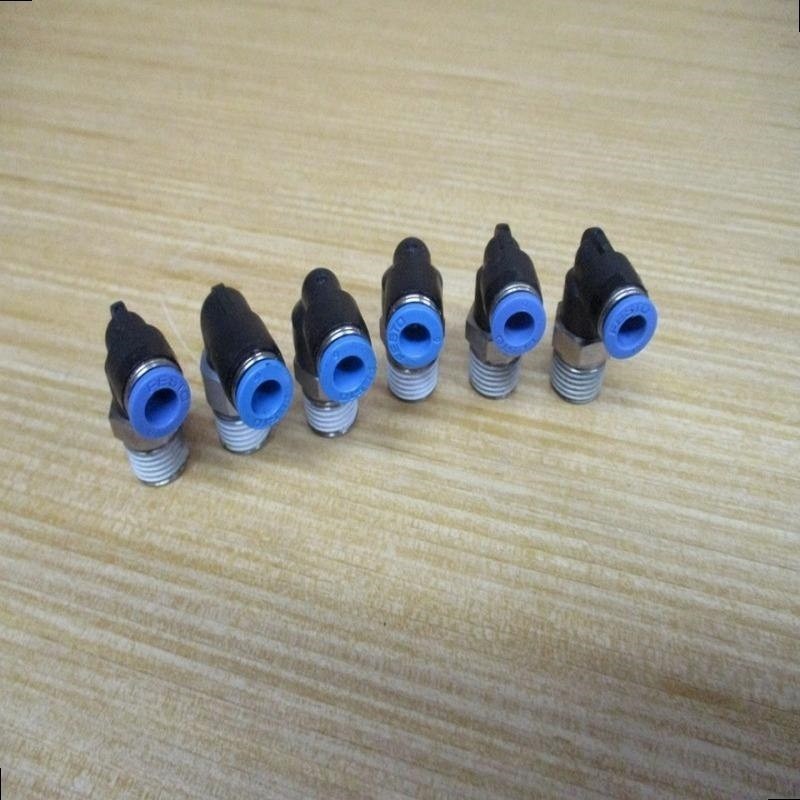

FESTO QSRL-1/4-6 rotatable L push-in fitting belongs to QSRL series pneumatic elbow connector. L-shaped structure with built-in ball bearing, supports 360° rotation after installation, max rotating speed up to 500 rpm. One port with R1/4 male taper thread, another port for OD6mm pneumatic tubing. PBT housing, blue POM release ring, NBR seal and stainless steel retaining claw. It can adjust tubing direction after assembly, suitable for compressed air circuit and vacuum pipeline, LABS compliant for paint shop applications, widely used in pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSRL-1/4-6 |
| Order No. | 153412 |
| Product Series | QSRL |
| Product Type | Rotatable L Push-in Fitting / Pneumatic Elbow Connector |
| Shape | L-shape, ball bearing 360° rotatable |
| Port 1 | R1/4 Male Taper Thread |
| Port 2 | For tubing OD 6mm |
| Nominal Size | 3.1 mm |
| Operating Pressure | -0.95 ~14 bar |
| Ambient Temperature | 0 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Max Rotating Speed | 500 rpm |
| Housing Material | PBT |
| Release Ring Material | POM, Blue |
| Seal Material | NBR |
| Retaining Claw | High-alloy stainless steel |
| Feature | 360° rotatable after installation, LABS(PWIS) compliant VDMA24364-B1/B2-L |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC 1 |
| Weight | 25 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
