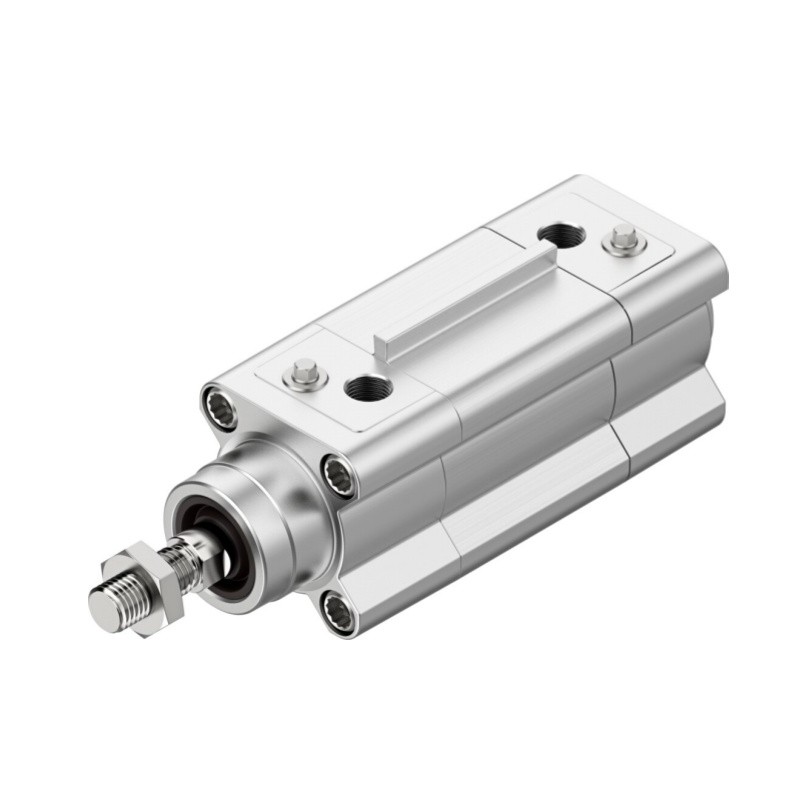

DSBF-C-40-50-PPVA-N3-R
Product Overview
FESTO DSBF-C-40-50-PPVA-N3-R belongs to DSBF-C clean design ISO15552 profile cylinder series. Double acting design, bore 40mm, stroke 50mm, piston rod M12×1.25 male thread. PPV adjustable pneumatic cushioning on both ends for impact reduction. N3 version integrated piston magnet for proximity sensor position feedback; R variant CRC3 high corrosion resistance. Smooth easy-to-clean housing surface, LABS(PWIS) compliant, ISO14644-1 cleanroom class 5. Hard anodized aluminium barrel, stainless steel piston rod, suitable for frequent wash-down workshops, widely used in food, pharmaceutical and paint shop pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DSBF-C-40-50-PPVA-N3-R |
| Order No. | 1774261 |
| Product Series | DSBF-C |
| Product Type | ISO15552 Clean Design Pneumatic Profile Cylinder |
| Action Type | Double-acting |
| Piston Diameter | 40 mm |
| Stroke | 50 mm |
| Standard | ISO 15552 |
| Piston Rod Thread | M12×1.25 Male thread |
| Pneumatic Port | G1/4 |
| Cushioning | PPV, adjustable pneumatic cushion on both ends, cushioning length 19mm |
| Variant | N3: Built-in piston magnet for proximity sensor; R: CRC3 high corrosion resistance |
| Operating Pressure | 0.6 ~ 12 bar |
| Theoretical Force @6bar | Advance:754 N, Return:633 N |
| Impact Energy at End Positions | 0.7 J |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Barrel Material | Wrought aluminium alloy, hard anodized |
| End Cap | Die-cast aluminium, coated |
| Piston Rod | High-alloy stainless steel |
| Seal Material | TPE-U(PU) |
| Feature | Clean Design easy-clean smooth surface, LABS(PWIS) compliant VDMA24364-B2-L, ISO14644-1 cleanroom class 5, resistant to common detergents |
| Mounting | Internal thread mounting, any mounting position, install via cylinder accessories |
| Corrosion Resistance Class | CRC 3 |
| Weight | 978 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
