1036724 DFS60B-S4PM10000
Product Overview

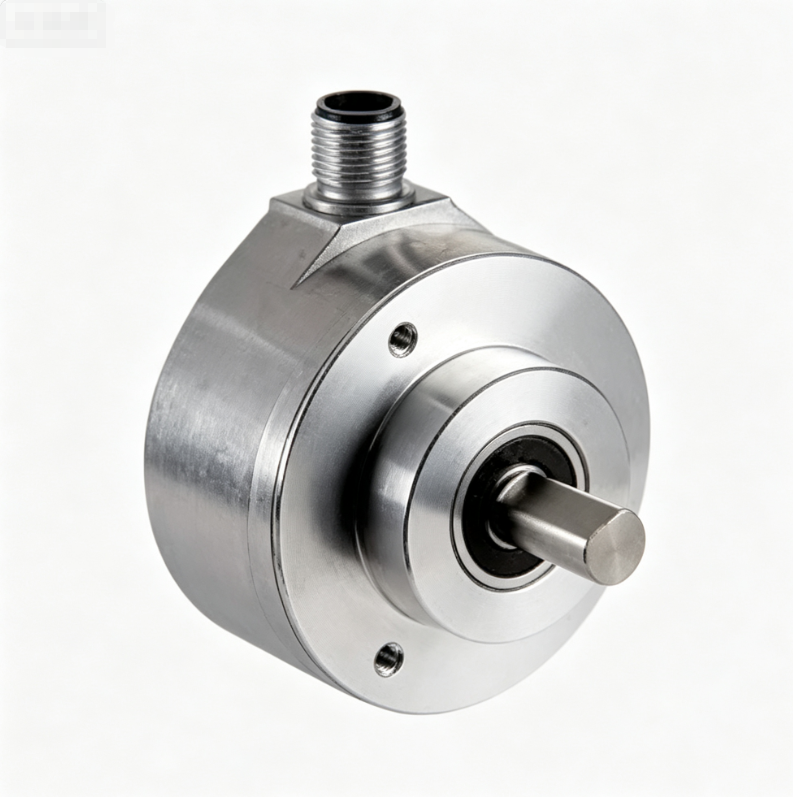

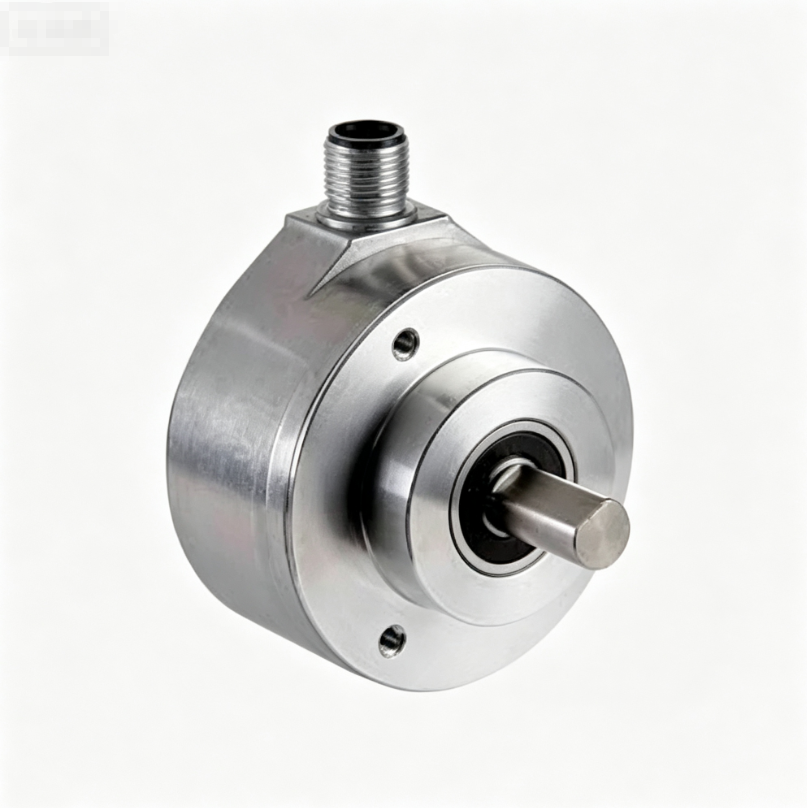

DFS60B-S4PM10000, Order No.1036724, is SICK incremental rotary encoder. It features 10000 ppr high resolution, fitted with 10mm solid shaft and 8-pin M12 straight connector. It adopts RS422 line driver output, supply voltage 4.75~30 V DC, maximum rotating speed up to 6000 rpm. Aluminum alloy housing with IP65 protection grade. It has compact structure and anti-vibration capability, outputs stable pulse signals, providing reliable speed and position feedback for industrial automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | DFS60B-S4PM10000 |
| Order No. | 1036724 |
| Product Type | Incremental Rotary Encoder |
| Connector Type | M12 Straight, 8 Pin |
| Pin | 8 Pin |
| Pulse Per Revolution | 10000 ppr |
| Shaft Type | Solid shaft |
| Shaft Diameter | 10 mm |
| Output Signal | Line driver (RS422) |
| Supply Voltage | 4.75…30 V DC |
| Max Speed | 6000 rpm |
| IP Rating | IP65 |
| Housing Material | Aluminum alloy |
| Operating Temperature | -20℃~+70℃ |
| Feature | 10000ppr high resolution, solid shaft, RS422 signal, anti-vibration, compact structure |
| Certification | CE |
| Condition | New Original |
| MOQ | 1 Piece |
| Gross Weight | 0.30 KG |
| Net Weight | 0.25 KG |
| Place of Origin | Germany |
