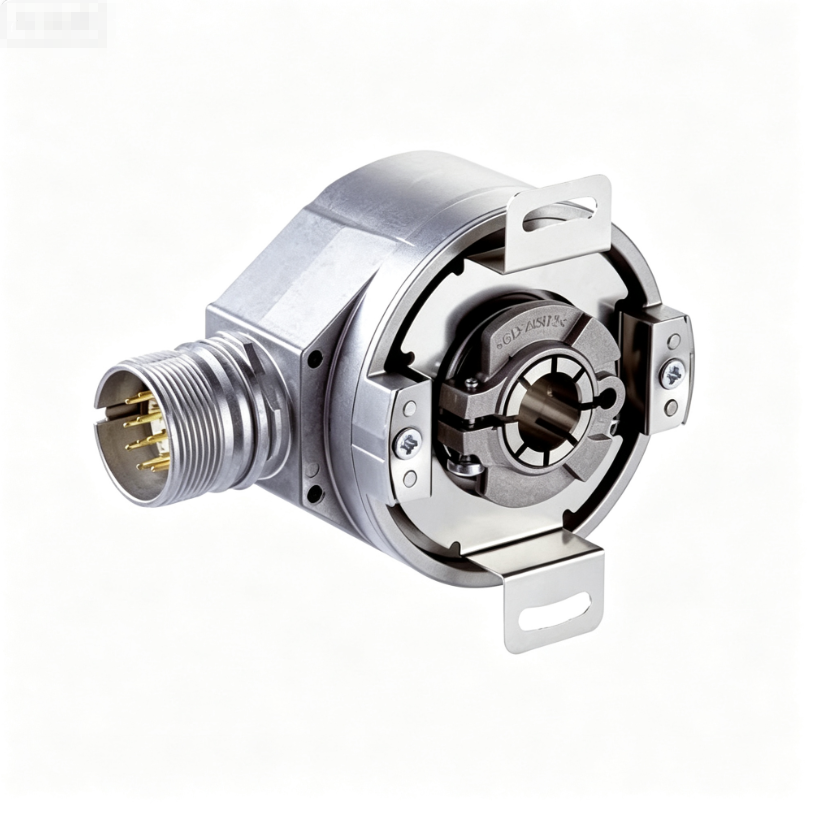

1060216 DFS6OE-S1ECO0200

属性名称	属性值
Brand	SICK
Model	DFS60E-S1EC00200
Order No.	1060216
Product Type	Incremental Rotary Encoder
Connector Type	Cable out, 8 core
Pulse Per Revolution	200 ppr
Shaft Type	Solid shaft
Shaft Diameter	10 mm
Output Signal	Line driver (RS422)
Supply Voltage	4.75…30 V DC
Max Speed	6000 rpm
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	200ppr incremental encoder, solid shaft, cable type, stable RS422 signal, shock resistant, compact housing
Ce

INQUIRY

Product Details

Product Tags

Product Overview

DFS60E-S1EC00200, Order No.1060216, is SICK incremental rotary encoder. It has 200 ppr resolution, equipped with 10mm solid shaft and 8-core cable out structure. It adopts RS422 line driver output, supply voltage 4.75~30 V DC, maximum rotating speed up to 6000 rpm. Aluminum alloy housing with IP65 protection grade. Featuring shock resistance and stable signal transmission, it delivers dependable speed and position feedback for conventional industrial automation devices.

属性名称	属性值
Brand	SICK
Model	DFS60E-S1EC00200
Order No.	1060216
Product Type	Incremental Rotary Encoder
Connector Type	Cable out, 8 core
Pulse Per Revolution	200 ppr
Shaft Type	Solid shaft
Shaft Diameter	10 mm
Output Signal	Line driver (RS422)
Supply Voltage	4.75…30 V DC
Max Speed	6000 rpm
IP Rating	IP65
Housing Material	Aluminum alloy
Operating Temperature	-20℃~+70℃
Feature	200ppr incremental encoder, solid shaft, cable type, stable RS422 signal, shock resistant, compact housing
Certification	CE
Condition	New Original
MOQ	1 Piece
Gross Weight	0.30 KG
Net Weight	0.25 KG
Place of Origin	Germany
