CN-M3-PK-3
Product Overview

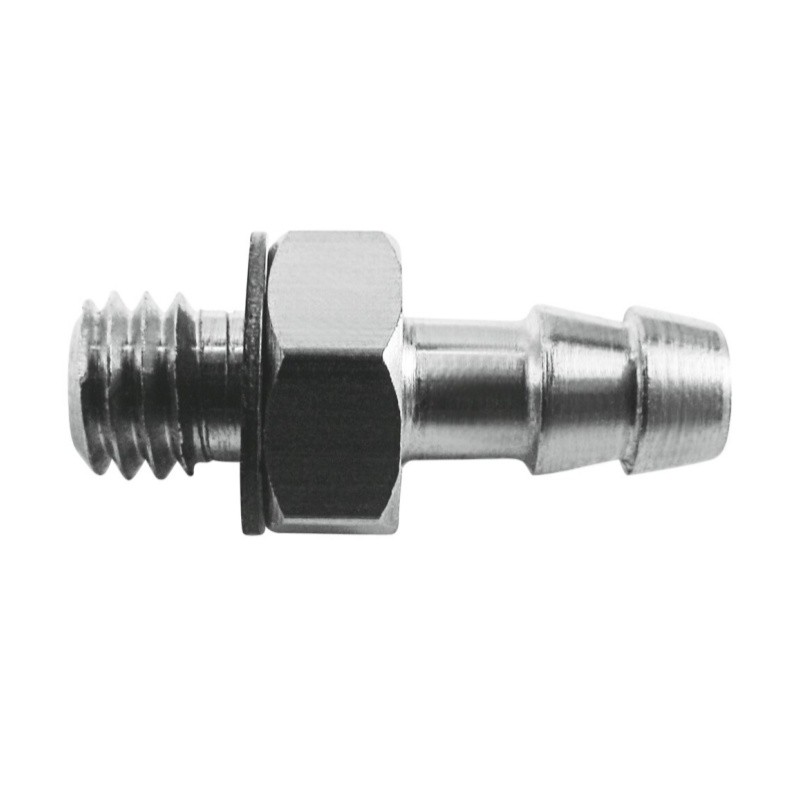

FESTO CN-M3-PK-3 belongs to CN series straight barbed hose fitting. Port1 M3 male thread with integrated sealing ring, port2 barbed structure for 4mm outer diameter rubber/polyurethane hose. Barb design prevents hose slipping off. Nominal size 1.5mm, operating pressure range -0.95~10 bar. Body made of high-alloy steel, LABS(PWIS) compliant, suitable for paint workshop and lithium battery automation. Compact lightweight structure, any installation orientation, widely used for small-bore cylinder and miniature valve air piping.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | CN-M3-PK-3 |
| Order No. | 15872 |
| Product Series | CN |
| Product Type | Barbed Fitting / Hose Barb Connector |
| Design | Straight barbed hose connection |
| Pneumatic Port | Port1：M3 male thread（自带密封圈）；Port2：适配外径 4mm 软管 |
| Nominal Size | 1.5 mm |
| Operating Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | 0 ~ +60 ℃ |
| Medium Temperature | 0 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-], lubricated air optional |
| Housing Material | High-alloy steel |
| Seal | Built-in thread sealing ring |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, barbed anti-pull-off design, screw-in installation |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC1 |
| Weight | 2.8 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
