VUVG-L14-B52-T-G18-1P3
Product Overview

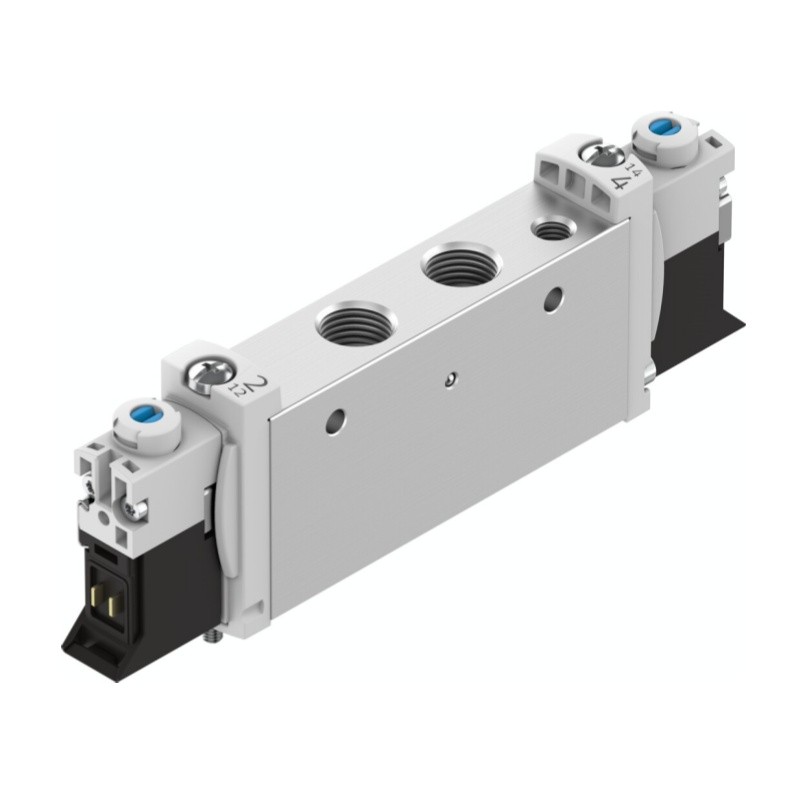

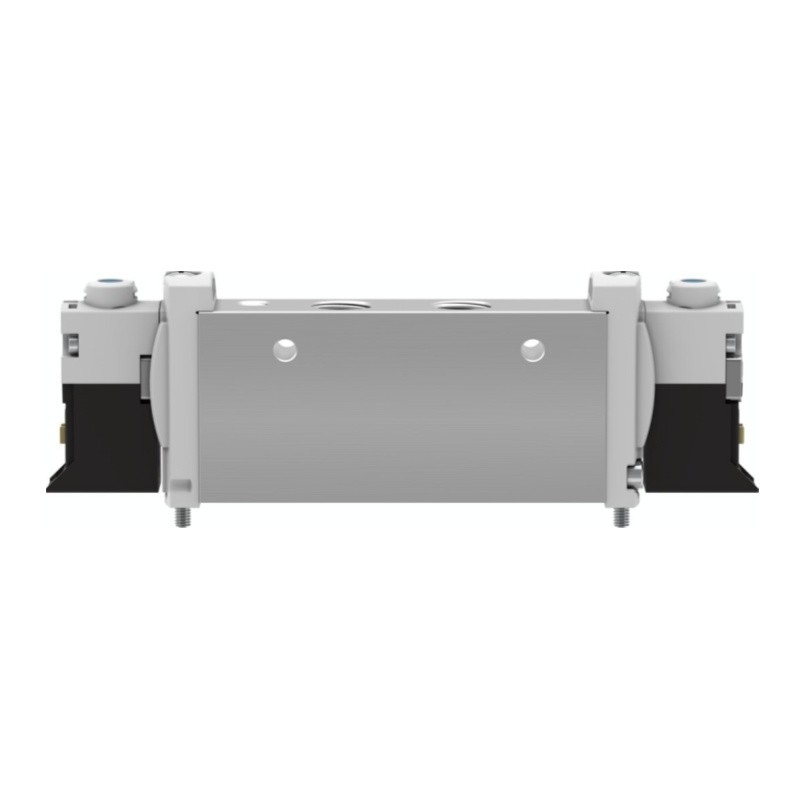

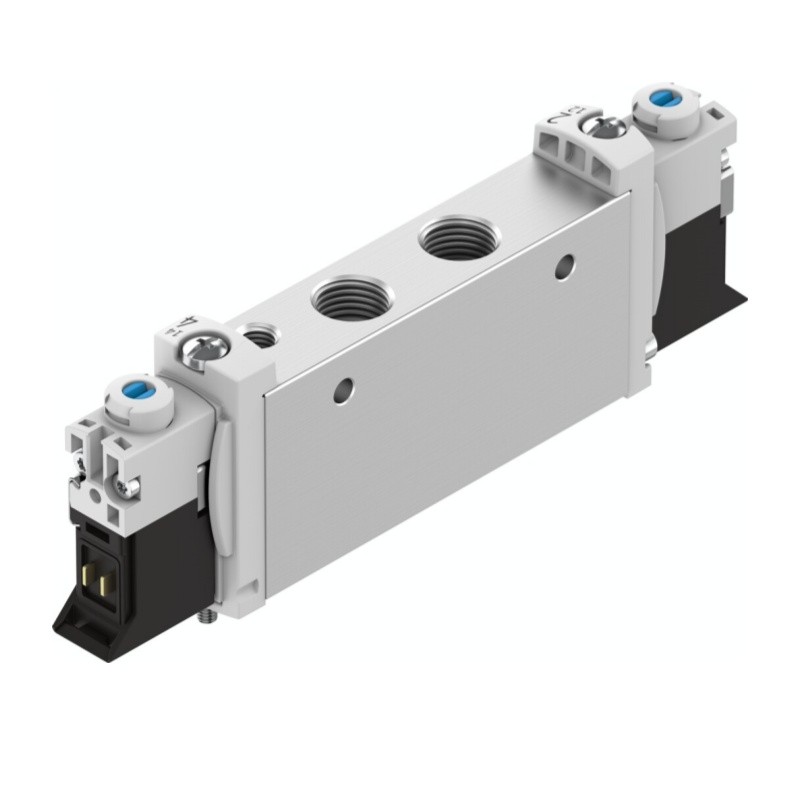

FESTO VUVG-L14-B52-T-G18-1P3 belongs to VUVG series single tube solenoid valve. It is a 5/2-way bistable piston gate valve with soft seal, internal pilot air supply. Valve width 14mm, nominal bore 5.6mm, all air ports G1/8 thread, nominal flow 700~780 l/min. Bistable memory function keeps valve position after power-off. Covered non-detenting manual override for commissioning test, exhaust port can be fitted with throttle for speed adjustment. IP40 valve body, IP65 with socket connector. LABS(PWIS) compliant, suitable for paint shop and lithium battery automation. Can be used standalone or assembled onto VTUG valve manifold, any installation orientation, widely used for cylinder push-pull motion control.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | VUVG-L14-B52-T-G18-1P3 |
| Order No. | 566500 |
| Product Series | VUVG |
| Product Type | 5/2-Way Bistable Piston Gate Solenoid Valve |
| Valve Function | 5/2-way, bistable (double solenoid, memory function) |
| Structure | Piston gate valve, soft seal |
| Actuation | Pilot-controlled, internal pilot air supply |
| Valve Size | 14 mm |
| Nominal Size | 5.6 mm |
| Pneumatic Port | G1/8 |
| Nominal Flow Rate | 700 ~ 780 l/min (DIN1343) |
| Operating Pressure | 1.5 ~ 8 bar |
| Pilot Pressure | 1.5 ~ 8 bar |
| Operating Voltage | 24V DC |
| Manual Override | Covered, non-detenting |
| Exhaust Function | Exhaust port with optional flow control |
| Protection Class | IP40 (valve body); IP65 with plug socket |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional |
| Housing Material | Wrought aluminium alloy |
| Seal Material | NBR / HNBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, bistable memory function, positive overlap, single tube mounted valve, compatible with VTUG valve manifold |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC 2 |
| Weight | 72 g |
| Certificate | CE, RoHS, RCM, cULus Recognized |
| Origin | Germany |
| Condition | New Original |
