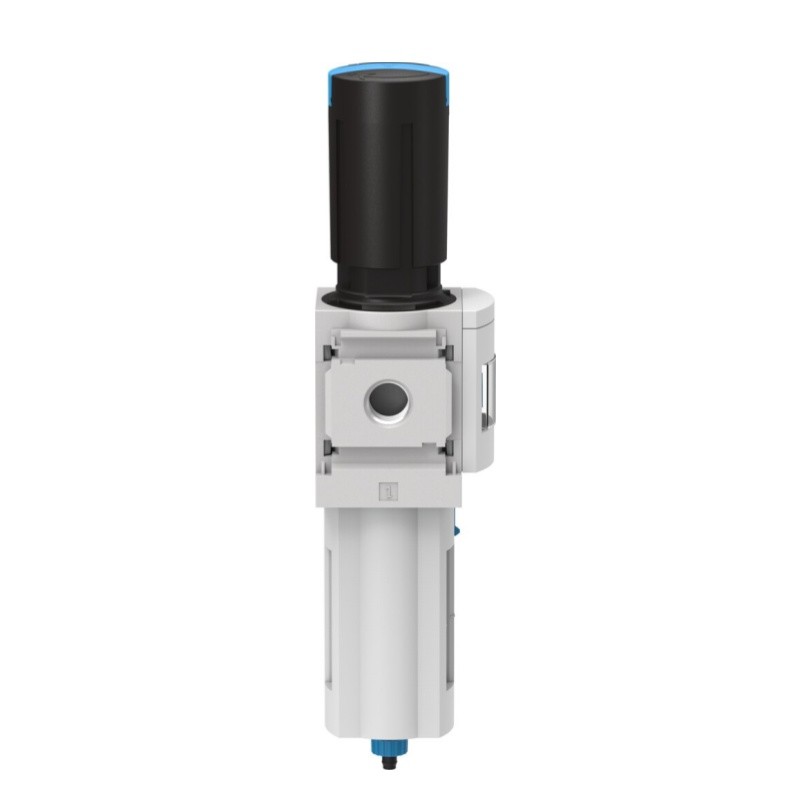

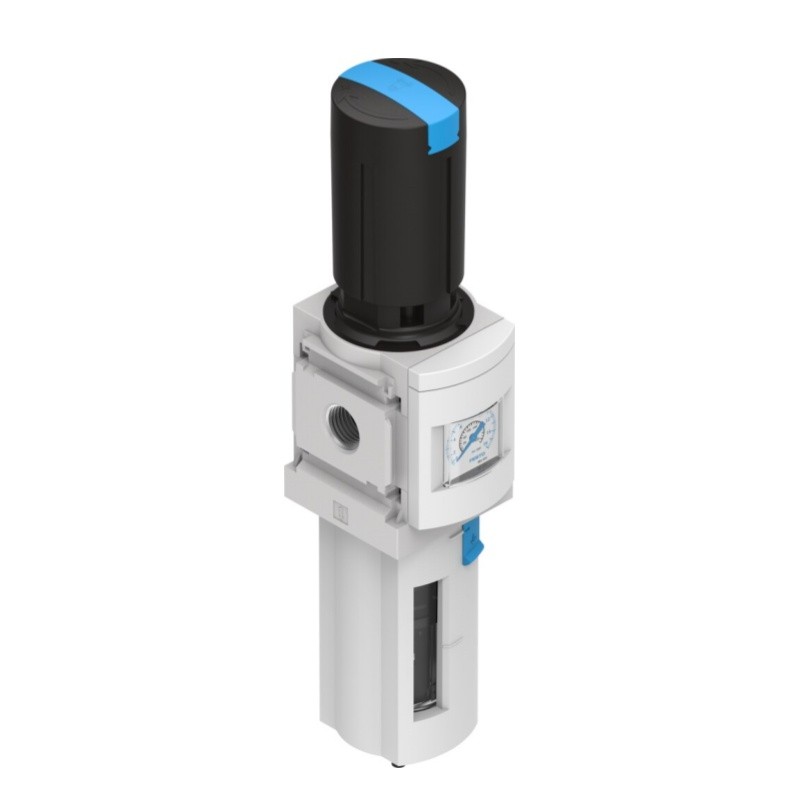

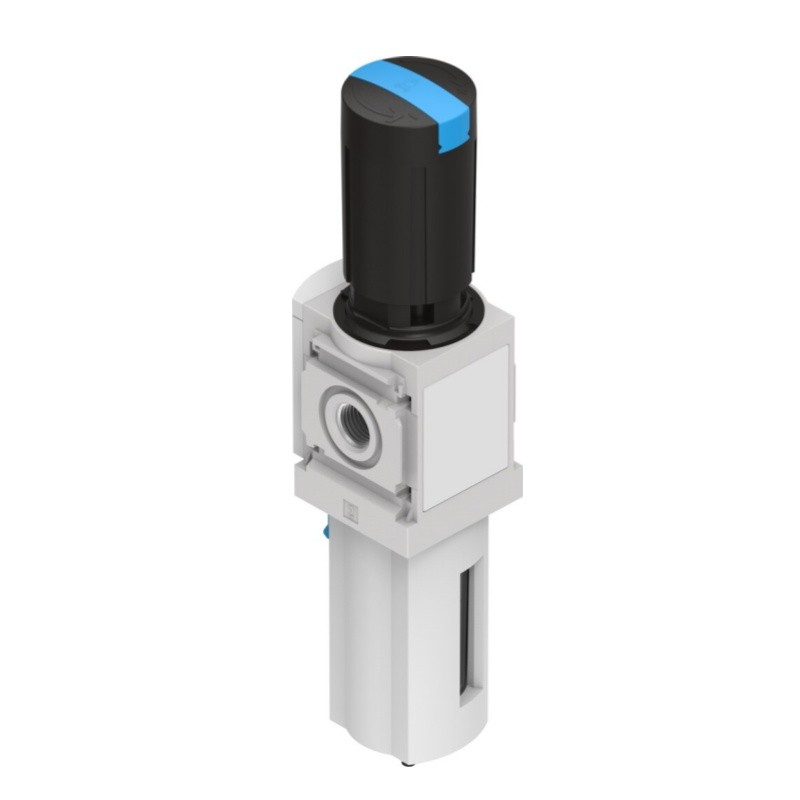

MS6-LFR-1/2-D6-ERV-AS
Product Overview
MS6-LFR-1/2-D6-ERV-AS, Part No.529176, belongs to Festo MS6 series modular air preparation unit. It combines air filter and pressure regulator in one single unit to clean and stabilize compressed air supply. Built-in 6μm filter element removes solid particles and condensate. ERV version has pressure relief function, AS equipped with metal bowl guard for safety protection. Rotatable pressure gauge for convenient reading. Modular stacking design to assemble with other MS service units, widely used as main air treatment component for heavy-duty pneumatic systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS6-LFR-1/2-D6-ERV-AS |
| Part No. | 529176 |
| Type | Filter regulator, MS6 air service unit |
| Port size | G1/2 |
| Filter grade | 6 μm |
| Pressure gauge | Integrated pressure gauge |
| Adjustment range | 0.5 ~ 12 bar |
| Max inlet pressure | 16 bar |
| Nominal flow rate | 7500 l/min |
| Drain type | Semi-automatic drain |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Zinc die casting, Bowl: Polycarbonate, Seal: NBR |
| Weight | 1100.00 g |
| Feature | ERV: pressure relief, AS: metal bowl guard, modular stackable, rotatable pressure gauge |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
