543638 MS6-LDM1-AGF-P40
Item No: 543638 Model: MS6-LDM1-AGF-P40 Brand: Festo Type: Membrane Air Dryer Module

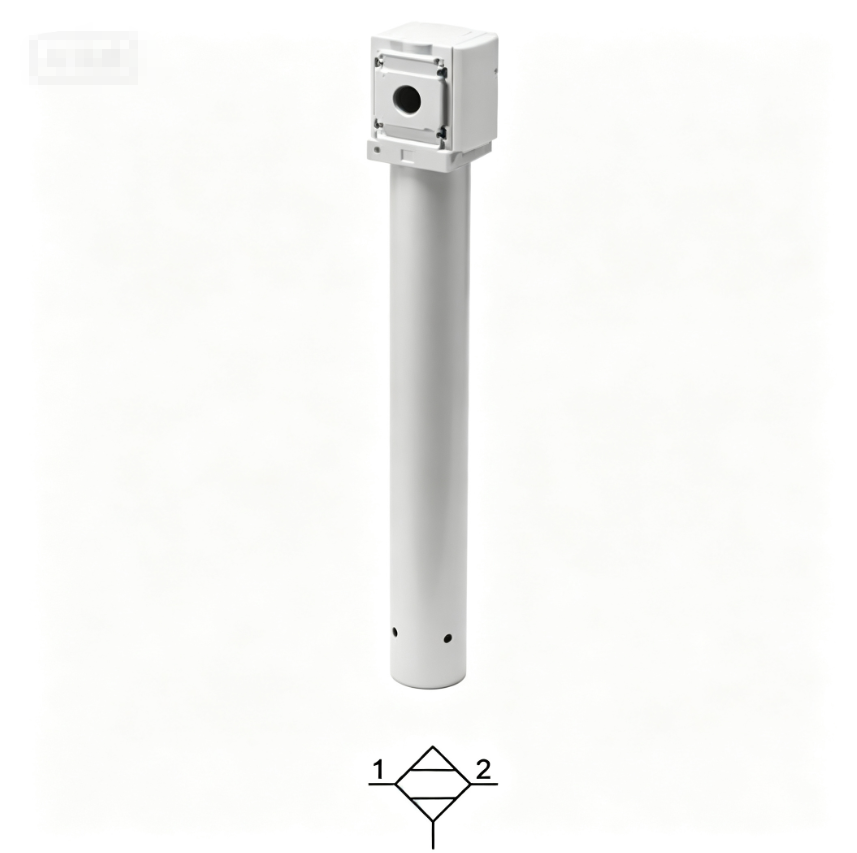

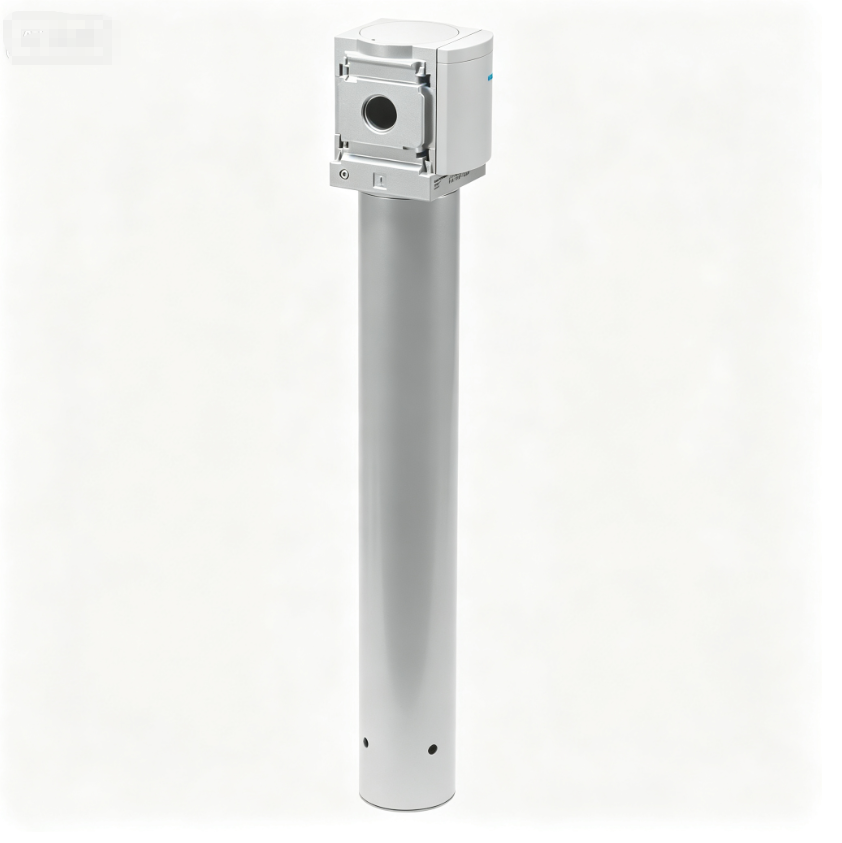

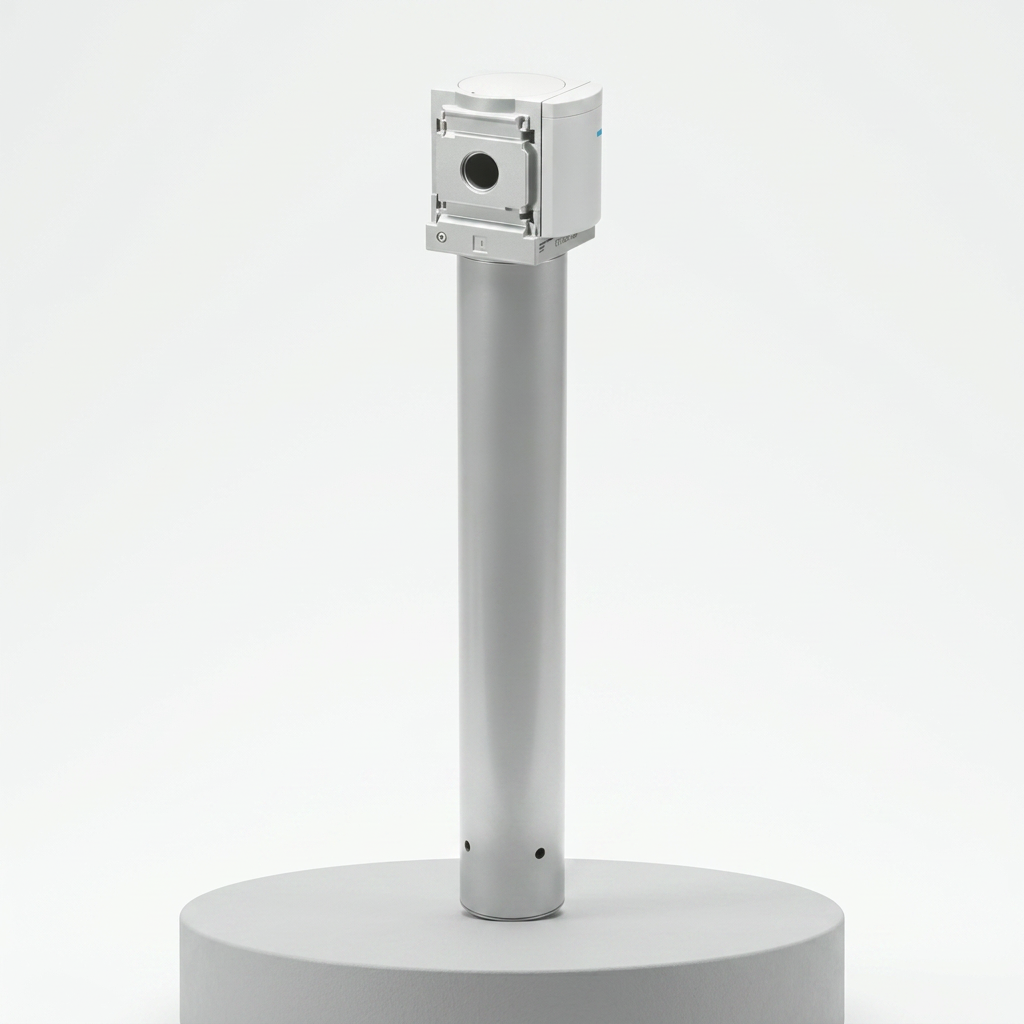

Festo MS6-LDM1-AGF-P40 membrane air dryer module (543638) belongs to MS6 modular service unit series. It uses hollow fiber membrane technology to separate water vapor from compressed air without heating or regeneration cycle. Built-in AGF pre-filter protects membrane from contamination, P40 version reaches -40℃ pressure dew point. Quick modular connection with other MS6 filter/regulator units for integrated compressed air preparation.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS6-LDM1-AGF-P40 |
| Part No. | 543638 |
| Type | Membrane Air Dryer Module |
| Series | MS6 |
| Connection Size | G1/2 |
| Max Operating Pressure | 1.6 MPa (16 bar) |
| Operating Pressure Range | 0.3 ~ 1.6 MPa (3 ~ 16 bar) |
| Max Flow Rate | 1400 l/min |
| Pressure Dew Point Reduction | Up to -40 ℃ (P40) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | +5 ~ +50 ℃ |
| Feature | LDM1 membrane drying, AGF pre-filter, P40 dew point class, no heat required |
| Material | Aluminum housing, polymer membrane, plastic end caps |
| Mounting | Modular assembly for MS6 service unit |
| Weight | 780 g |
| Condition | New Original |
