DSM-25-270-CC-A-B

属性名称	属性值
Brand	FESTO
Model	DSM-25-270-CC-A-B
Order No.	547580
Product Series	DSM
Product Type	Vane Semi-Rotary Pneumatic Drive / Rotary Actuator
Operation	Double acting, vane structure
Size	25
Nominal Swivel Angle	270°（可调范围 0~246°）
Cushion	CC：Both ends hydraulic shock absorber cushioning，buffer angle 10°
Shaft Type	A: spigot shaft；B: fine adjustment -3°
Theoretical Torque @6bar	5 Nm
Operating Pressure	1.5 ~ 10 bar
Repeat Accuracy	±0.1 °
Max Swivel Frequency @6bar	1 Hz
Pneumatic Po

INQUIRY

Product Details

Product Tags

Product Overview

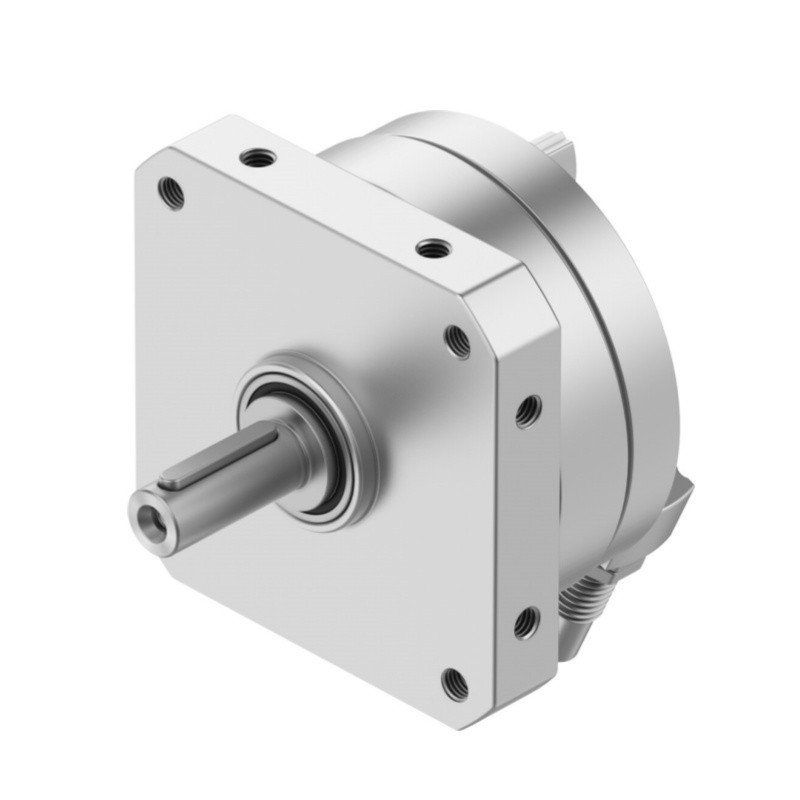

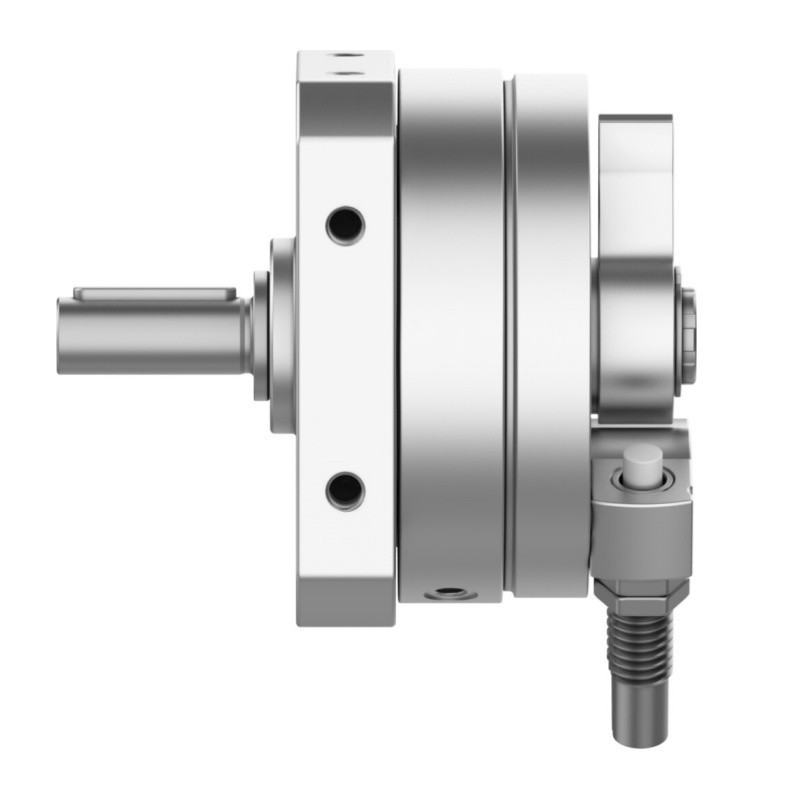

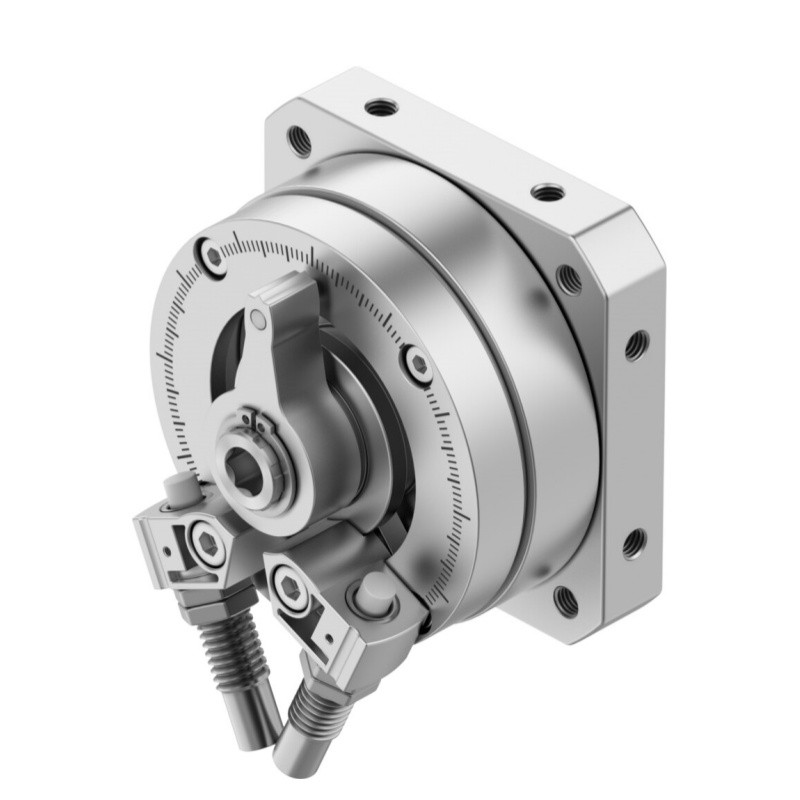

FESTO DSM-25-270-CC-A-B belongs to DSM vane semi-rotary drive series. Double acting vane design, size25, nominal swivel angle 270°, actual adjustable range 0~246°. CC means hydraulic shock absorber cushion fitted at both ends to reduce impact. A = spigot shaft, B offers -3° fine angle adjustment. Theoretical torque 5 Nm at 6 bar, repeat accuracy ±0.1°. Built-in T-slot for proximity switch to detect rotary position. LABS(PWIS) compliant, suitable for paint shop and lithium battery automation. Any installation orientation, widely used for workpiece rotation, flipping and angle positioning.

属性名称	属性值
Brand	FESTO
Model	DSM-25-270-CC-A-B
Order No.	547580
Product Series	DSM
Product Type	Vane Semi-Rotary Pneumatic Drive / Rotary Actuator
Operation	Double acting, vane structure
Size	25
Nominal Swivel Angle	270°（可调范围 0~246°）
Cushion	CC：Both ends hydraulic shock absorber cushioning，buffer angle 10°
Shaft Type	A: spigot shaft；B: fine adjustment -3°
Theoretical Torque @6bar	5 Nm
Operating Pressure	1.5 ~ 10 bar
Repeat Accuracy	±0.1 °
Max Swivel Frequency @6bar	1 Hz
Pneumatic Port	M5
Permissible Stop Radius	≥21 mm
Ambient Temperature	-10 ~ +60 ℃
Medium	Compressed air ISO 8573-1:2010 [7:4:4], lubricated air optional
Housing Material	Aluminium alloy
Vane & Seal	PU / NBR
Feature	Built-in T-slot for proximity switch installation, LABS(PWIS) compliant VDMA24364-B1/B2-L, adjustable rotation angle, compact rotary actuator
Mounting	Any mounting position
Corrosion Resistance Class	CRC0
Weight	840 g
Certificate	CE, RoHS
Origin	Germany
Condition	New Original
