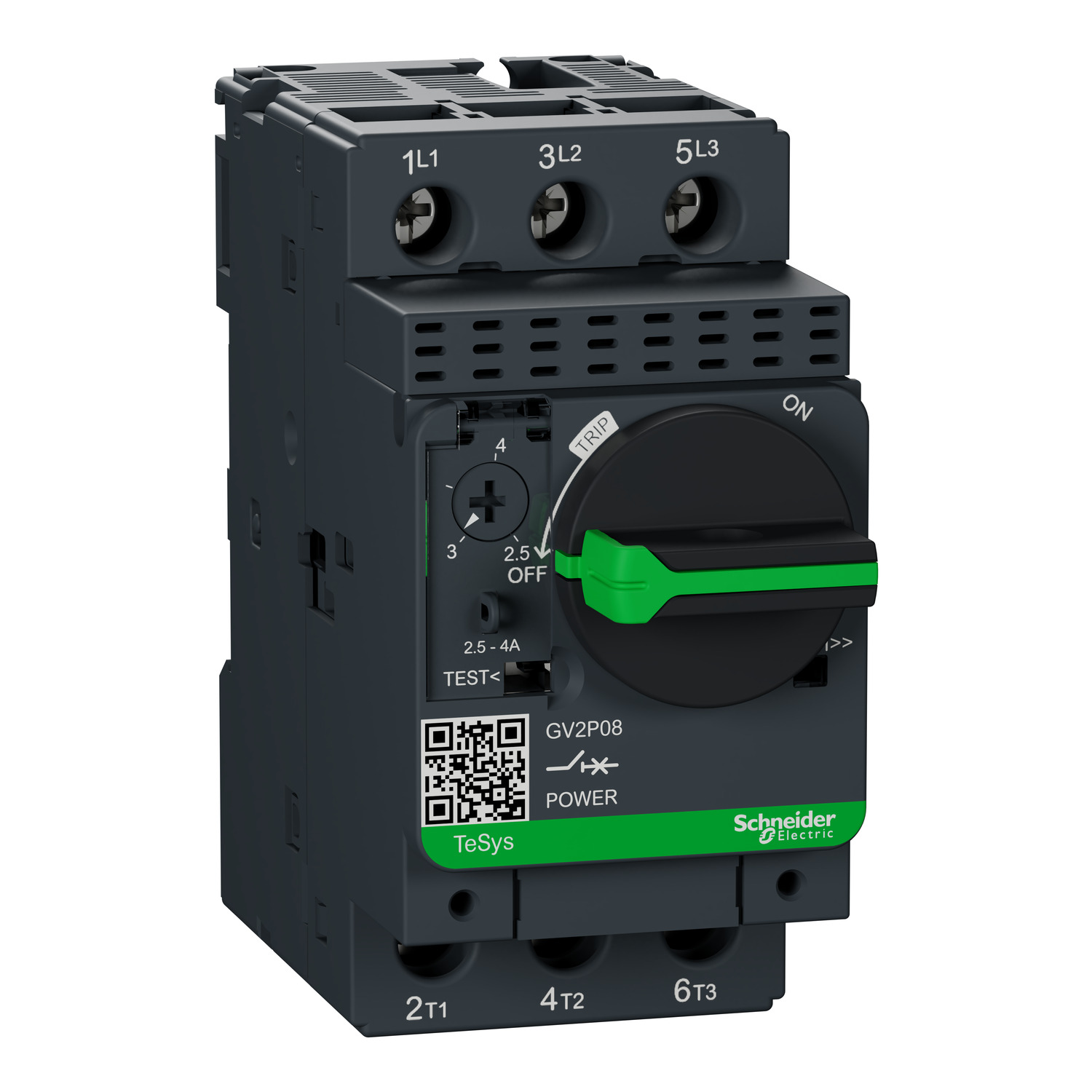

GV2P08
| Range | TeSys Deca |
|---|---|
| Product name | TeSys GV2 |
| Product or component type | Motor circuit breaker |
| Device short name | GV2P |
| Device application | Motor protection |
| Trip unit technology | Thermal-magnetic |
Poles description 3P Network type AC Utilisation category Category A conforming to IEC 60947-2
AC-3 conforming to IEC 60947-4-1
AC-3e conforming to IEC 60947-4-1Network frequency 50/60 Hz conforming to IEC 60947-2 Motor power kW 1.1 kW at 400/415 V AC 50/60 Hz
1.5 kW at 500 V AC 50/60 Hz
2.2 kW at 690 V AC 50/60 HzBreaking capacity 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
8 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2[Ics] rated service short-circuit breaking capacity 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2Control type Rotary handle [In] rated current 4 A Thermal protection adjustment range 2.5…4 A conforming to IEC 60947-2 Magnetic tripping current 74 A [Ith] conventional free air thermal current 4 A conforming to IEC 60947-2 [Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ui] rated insulation voltage 690 V AC 50/60 Hz conforming to IEC 60947-2 [Uimp] rated impulse withstand voltage 6 kV conforming to IEC 60947-2 Phase failure sensitivity Yes conforming to IEC 60947-4-1 Suitability for isolation Yes conforming to IEC 60947-1 Power dissipation per pole 2.5 W Mechanical durability 100000 cycles Electrical durability 100000 cycles for AC-3 at 415 V In
100000 cycles for AC-3e at 415 V InRated duty Uninterrupted conforming to IEC 60947-4-1 Connections - terminals Power circuit: screw clamp terminal 2 cable(s) 1…6 mm² solid
Power circuit: screw clamp terminal 2 cable(s) 1.5…6 mm² flexible without cable end
Power circuit: screw clamp terminal 2 cable(s) 1…4 mm² flexible with cable endTightening torque 1.7 N.m - on screw clamp terminal Fixing mode 35 mm symmetrical DIN rail: clipped
Panel: screwed (with 2 x M4 screws)Mounting position Horizontal
VerticalWidth 45 mm Height 89 mm Depth 97 mm Colour Dark grey
