QSL-1/8-10
Product Overview

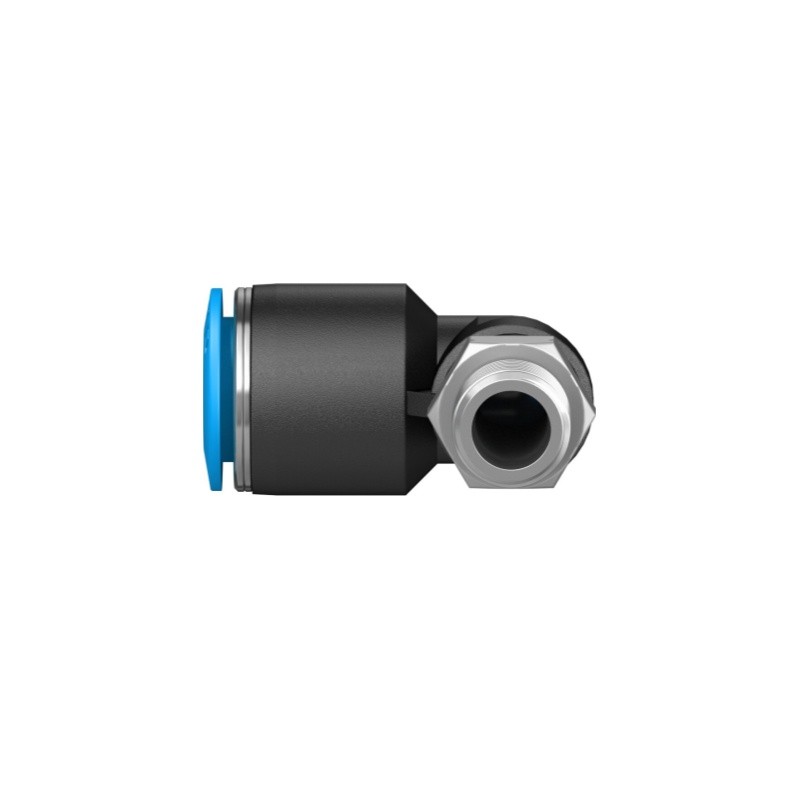

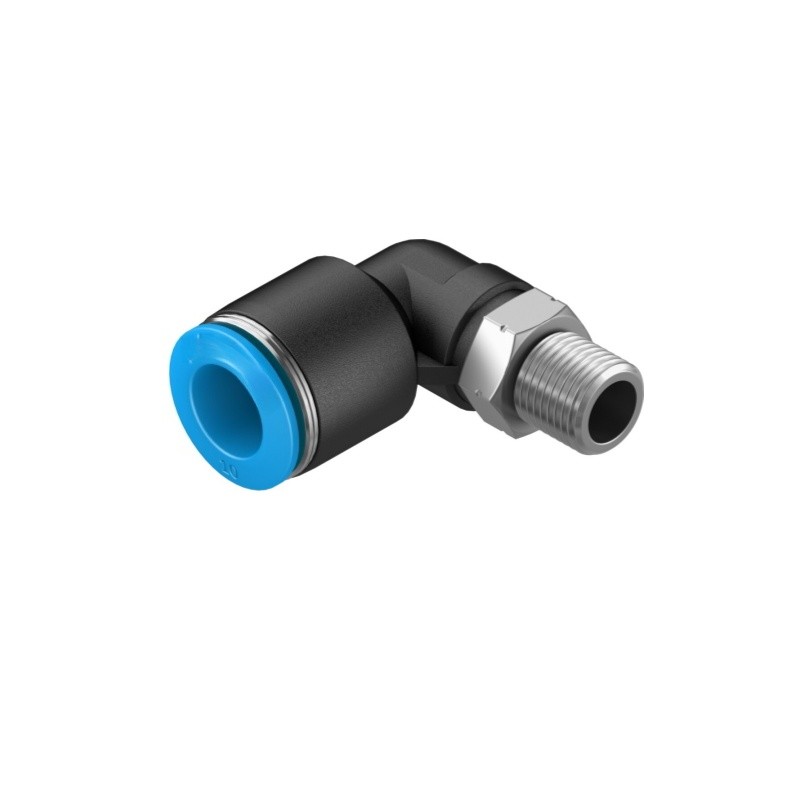

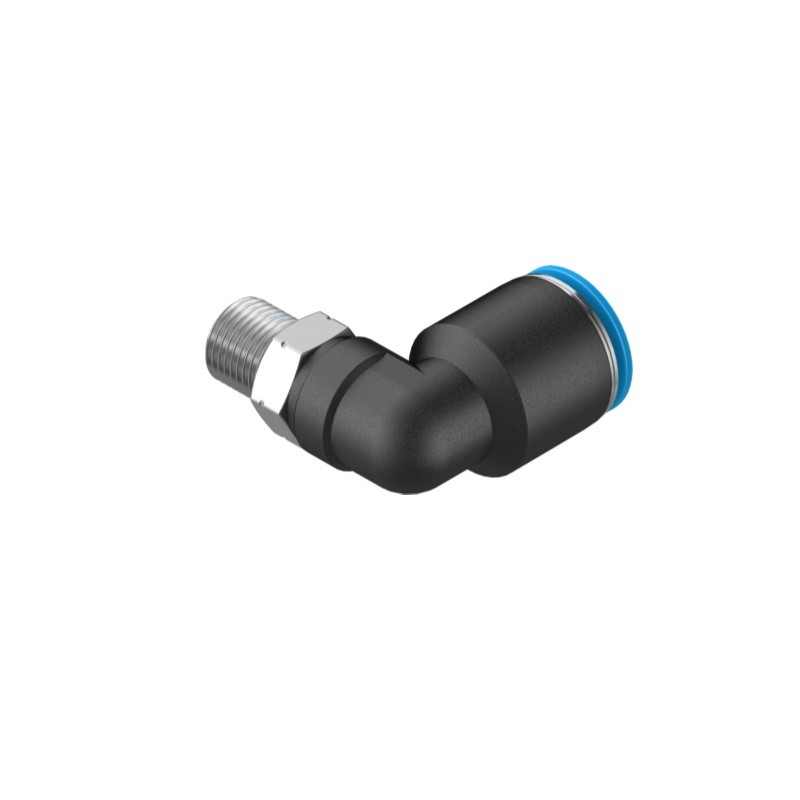

Festo QSL-1/8-10, Order No.190658, belongs to QSL series push-in pneumatic fitting. It is a 90° L-type elbow connector with R1/8 male thread, designed for 10mm OD pneumatic tube. Featuring 360° rotatable structure, this air fitting allows flexible pipeline layout without twisting the tube. Adopts one-touch push-in connection for fast assembly and disassembly, widely used in compressed air pipelines of industrial automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-1/8-10 |
| Part No. | 190658 |
| Product Type | Pneumatic Push-in Fitting |
| Series | QSL |
| Shape | 90° Elbow / L-type |
| Thread Specification | R1/8 Male Thread |
| Tube OD | 10 mm |
| Connection Mode | Push-in + External Thread |
| Housing Material | PBT |
| Seal Material | NBR |
| Release Ring | POM |
| Thread Material | Nickel-plated Brass |
| Claw Material | High-alloy Stainless Steel |
| Operating Pressure | -0.095 ~ 0.6 MPa (-0.95 ~ 6 bar) |
| Operating Temperature | -10 ~ 80 ℃ |
| Medium | Compressed air, water (ice-free) |
| Hex Size | SW12 |
| Net Weight | 0.02 kg |
| Certificate | RoHS Compliant |
| Feature | 360° rotatable, Push-pull installation |
| Application | Pneumatic Automation System |
