ADNGF-20-80-P-A
Product Overview

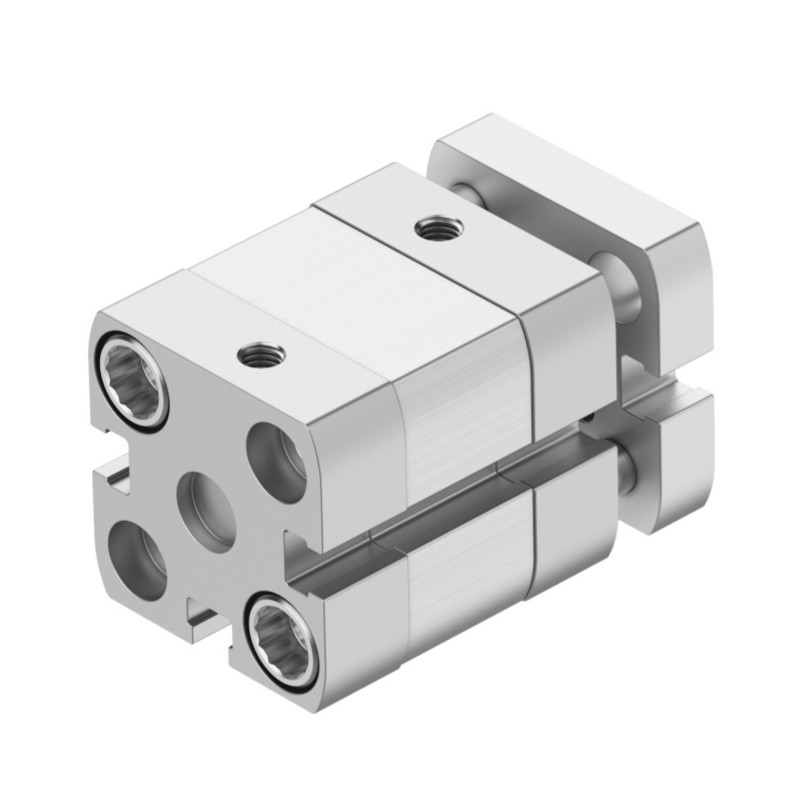

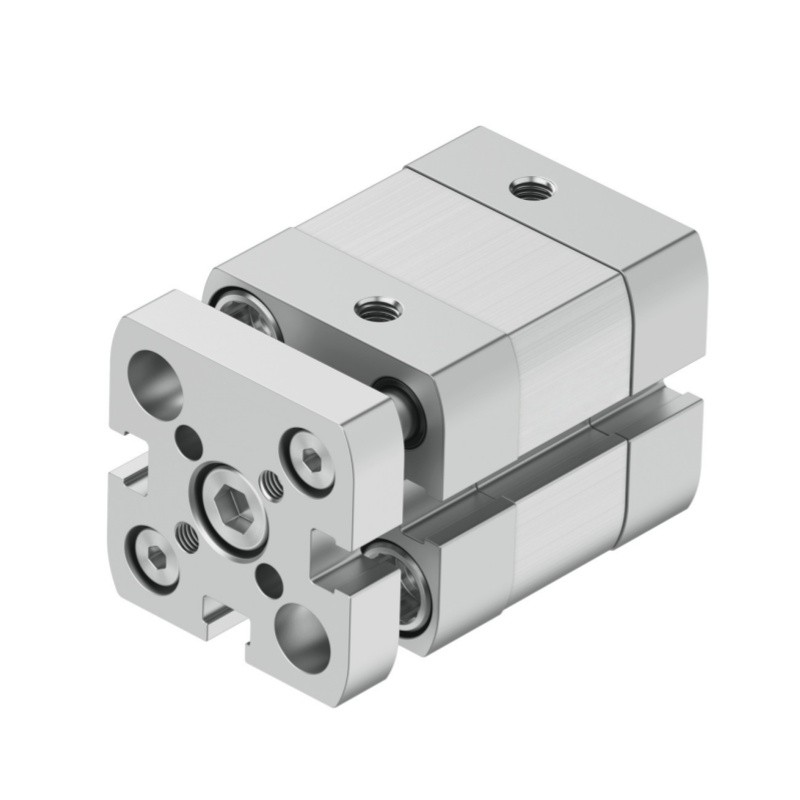

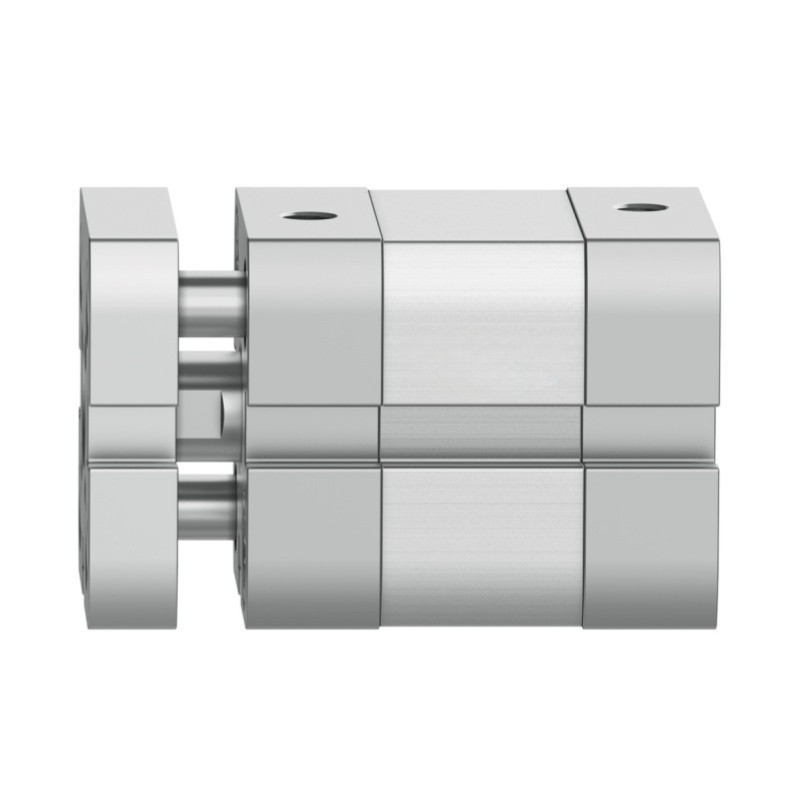

ADNGF-20-80-P-A, Part No.554241, belongs to Festo ADNGF series guided compact cylinder. It integrates compact cylinder and ball bearing guide rods as one unit, double acting design with 20mm bore and 80mm stroke. Built-in anti-twist function to resist torque and side load. A version supports magnetic proximity sensor installation for piston position feedback. Compact structure saves installation space, widely used for lifting, ejecting and pick & place operations.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | ADNGF-20-80-P-A |
| Part No. | 554241 |
| Type | Guided compact cylinder, double acting |
| Piston diameter | 20 mm |
| Stroke | 80 mm |
| Guide type | Ball bearing guided |
| Cushioning | Elastic cushion rings on both ends |
| Pneumatic port | M5 |
| Theoretical force @6 bar | Advance:188 N, Retract:141 N |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0.6 ~ 10 bar |
| Temperature range | -10 ~ 60 ℃ |
| Material | Housing: Anodised aluminium, Guide rod: High-alloy stainless steel, Seal: NBR |
| Weight | 440.00 g |
| Feature | A version for magnetic position sensor, high rigidity ball bearing guide, anti-twist |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
