QS-G3/8-8
Product Overview

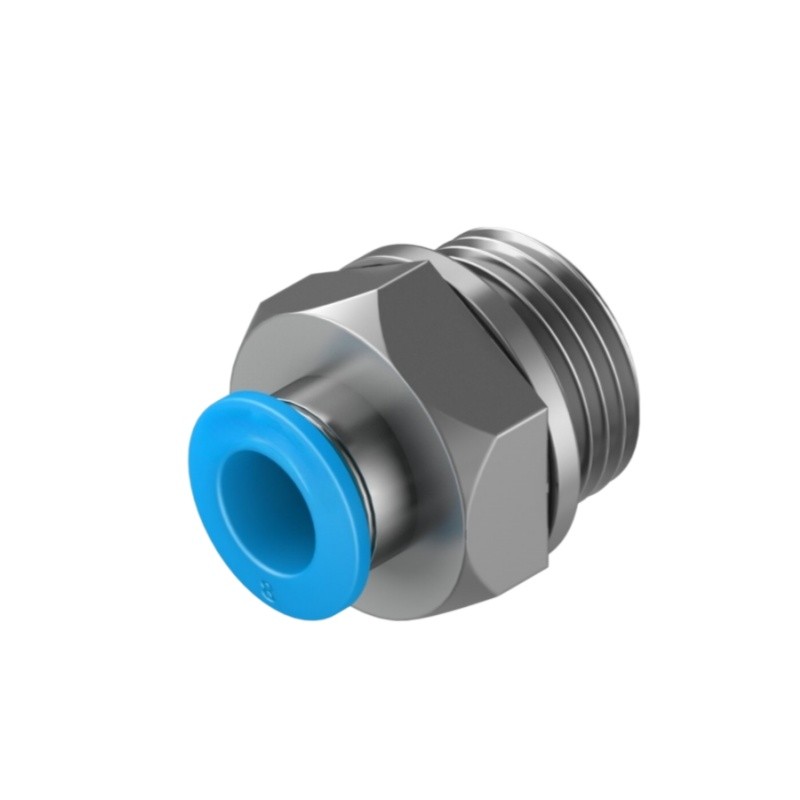

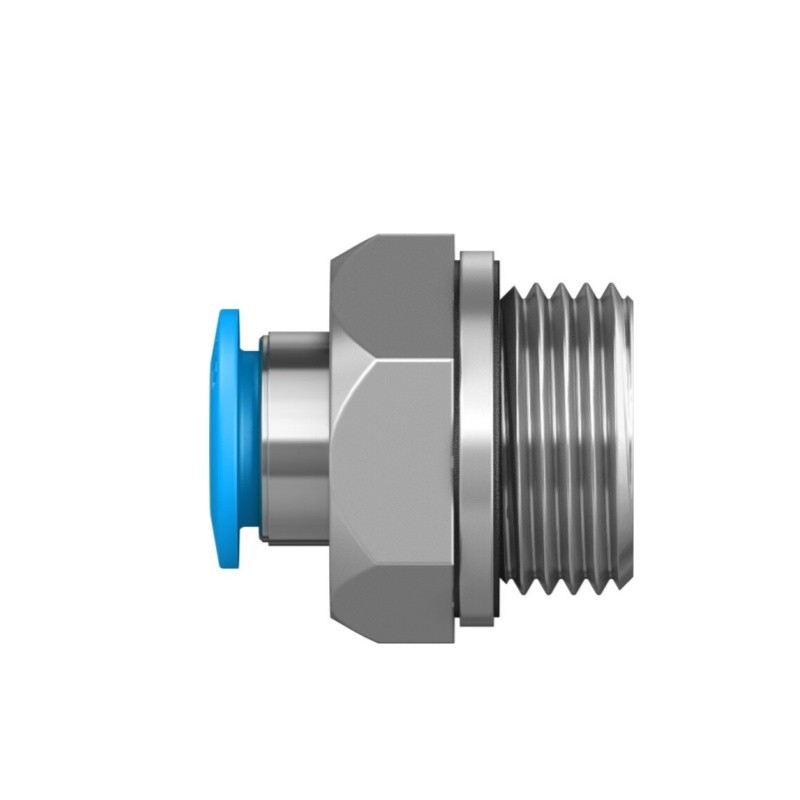

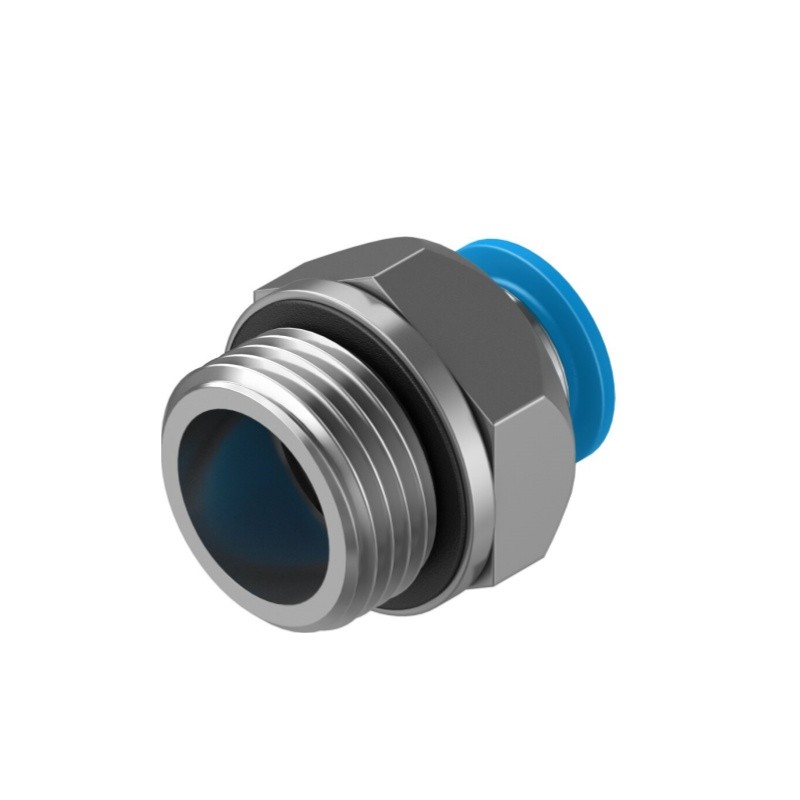

QS-G3/8-8, Part No.186092, belongs to Festo QS series straight push-in fitting. It adopts push-pull quick connection principle, connects G3/8 parallel male thread port with 8mm OD pneumatic tube. Tube can be inserted and removed quickly without tools. Compact structure and reliable sealing performance, widely used for connecting valves, cylinders and air pipes in automation pneumatic circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-G3/8-8 |
| Part No. | 186092 |
| Type | Straight push-in fitting |
| Thread | G3/8 male parallel thread |
| Tube OD | 8 mm |
| Nominal bore | 6 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 11.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, parallel G thread, no tool required |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
