QSM-M6-6
Product Overview

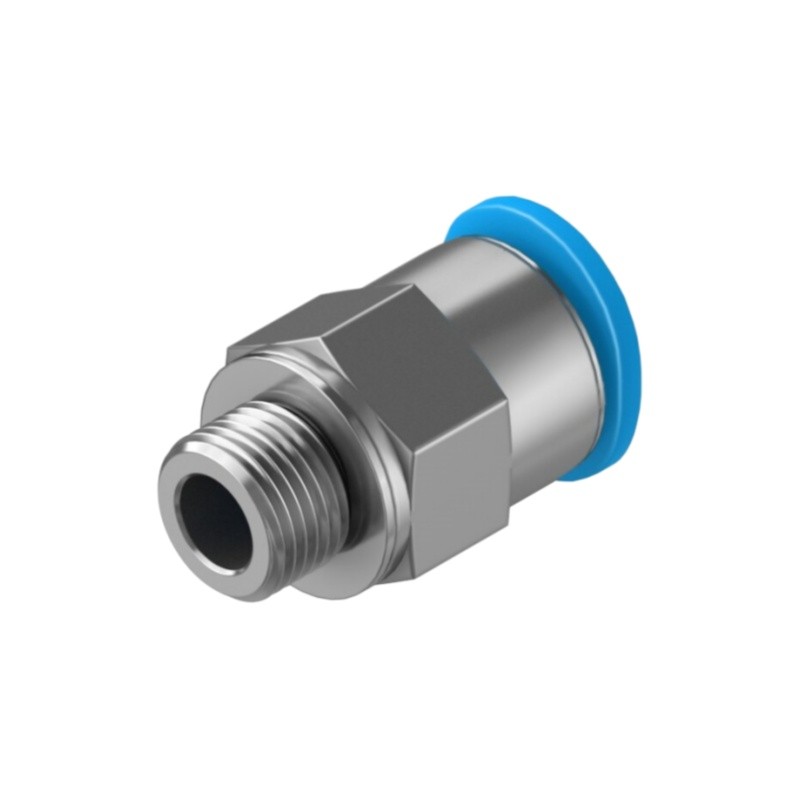

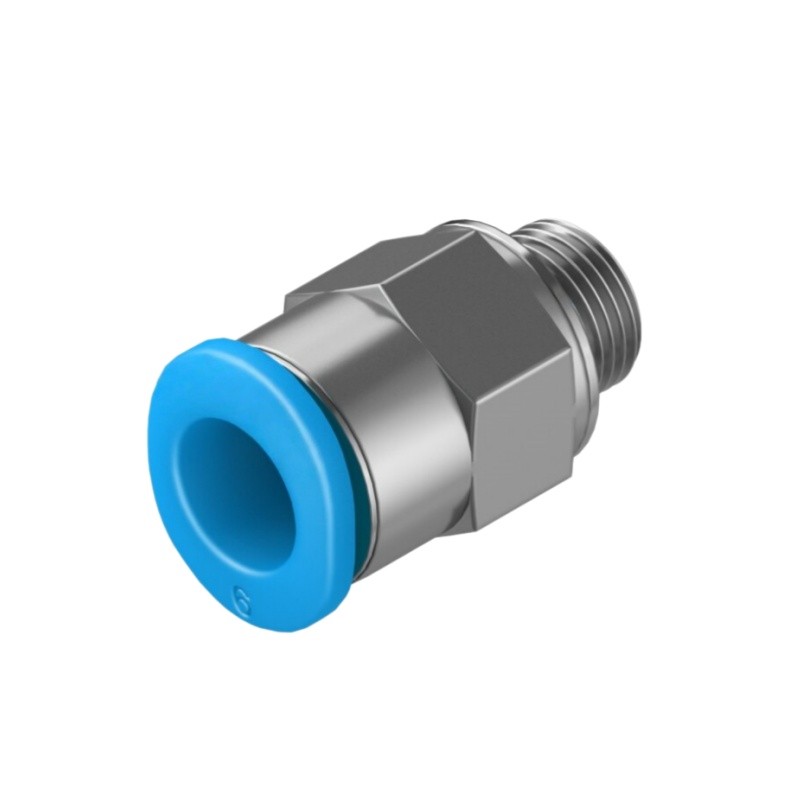

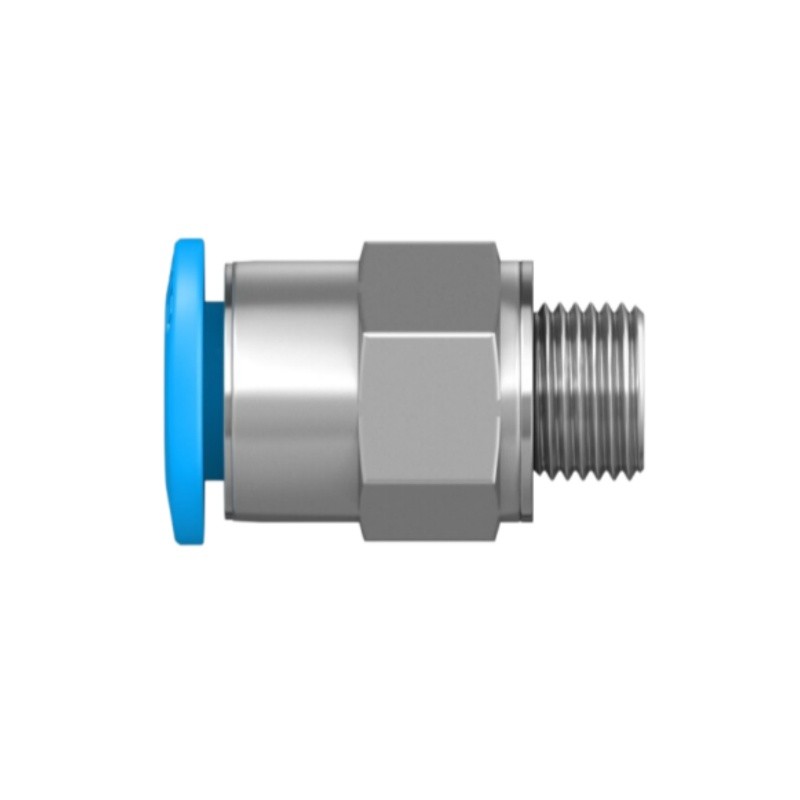

QSM-M6-6, Part No.153072, belongs to Festo QS series mini straight push-in fitting. It adopts push-pull quick connection principle, connects M6 metric male thread port with 6mm OD pneumatic tube. Mini compact design, fast tube insertion and removal without tools. Reliable sealing, widely used for small pneumatic component connection in precision automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSM-M6-6 |
| Part No. | 153072 |
| Type | Straight push-in fitting |
| Thread | M6 male metric thread |
| Tube OD | 6 mm |
| Nominal bore | 4 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 4.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, metric M6 thread, compact mini size |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
