PUN-H-16X2.5-BL 197388
Product Overview

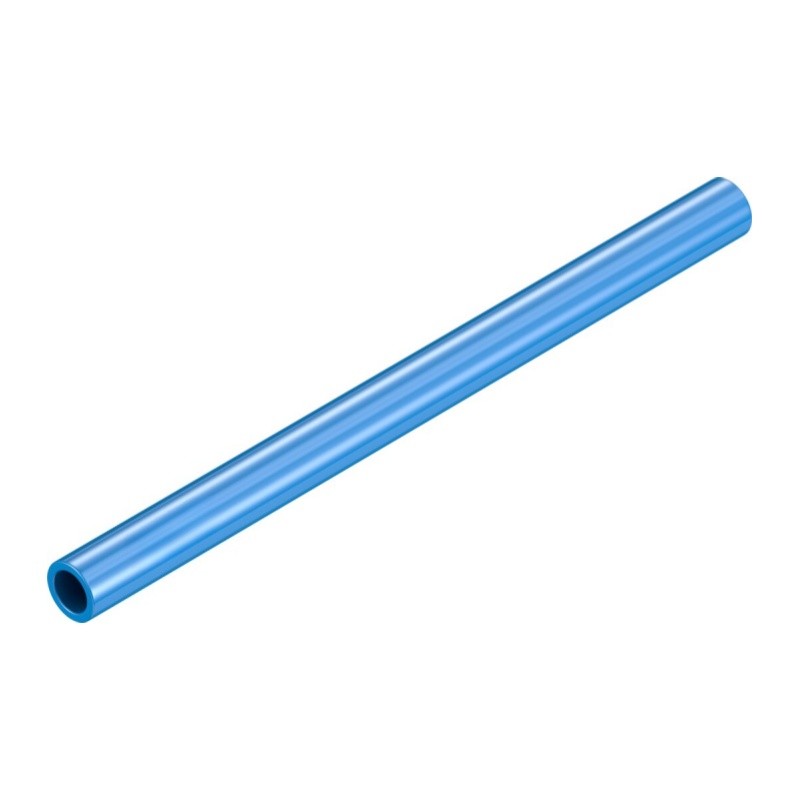

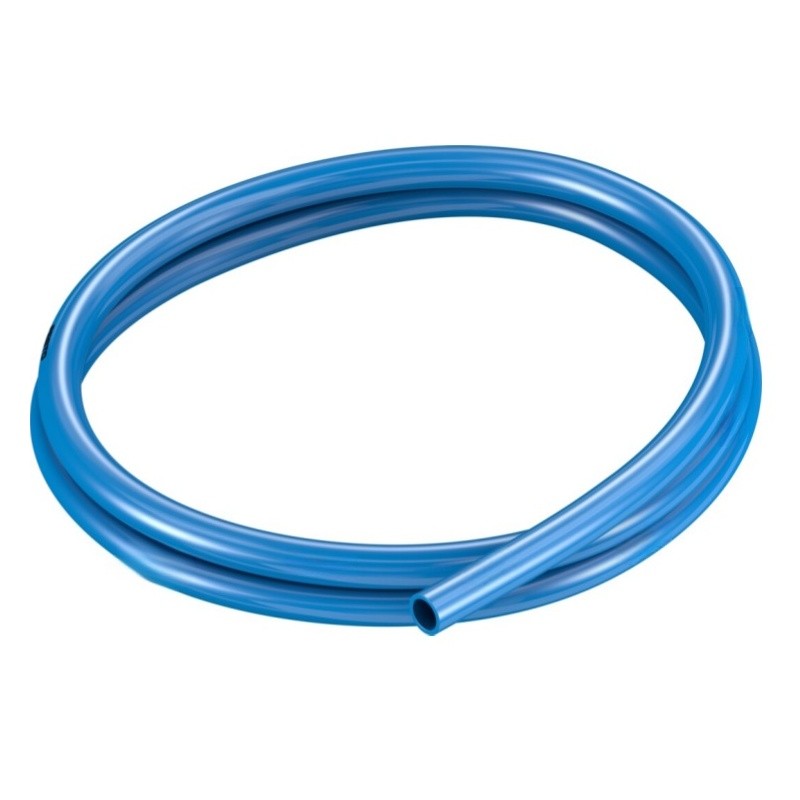

PUN-H-16X2.5-BL (Part No.197388) is Festo PUN-H series polyurethane pneumatic plastic tubing. Size OD 16mm, wall thickness 2.5mm, inner diameter 11mm, blue color. Made of ether-based TPE-U material, hydrolysis resistant and suitable for energy chain applications. Working pressure -0.95~6 bar for full temperature range, ambient temperature -35~60℃. Flexible, TÜV and UL94 HB certified, RoHS compliant. Widely used for compressed air and water transmission in industrial automation pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PUN-H-16X2.5-BL |
| MPN | 197388 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PUN-H Series |
| Material | TPE-U Ether-based Polyurethane |
| Size | OD 16mm, Wall thickness 2.5mm, ID 11mm |
| Color | Blue (BL) |
| Min Bending Radius | 40 mm |
| Flow-relevant Bending Radius | 67 mm |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]), ice-free water |
| Working Pressure (full temp range) | -0.95 ~ 6 bar |
| Temperature-dependent Pressure | -0.95 ~ 10 bar |
| Ambient Temperature | -35 ~ 60 ℃ |
| Feature | Hydrolysis resistant, suitable for energy chain, UL94 HB, TÜV certified |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
