PAN-R-10X1,9-SI 541677
Product Overview

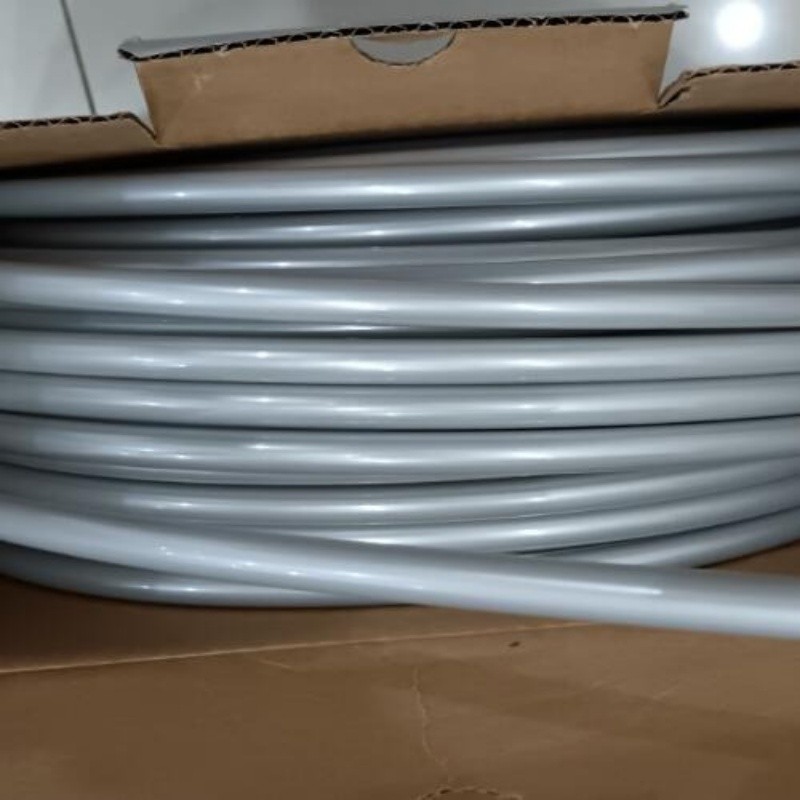

PAN-R-10X1,9-SI (Part No.541677) is Festo PAN-R series polyamide pneumatic plastic tubing. Size OD 10mm, wall thickness 1.9mm, inner diameter 6.2mm, silver color. Made of PA polyamide material, featuring high pressure resistance and good chemical resistance. Working pressure -0.95~14 bar at 20℃, ambient temperature -40~80℃. Low moisture absorption, rigid structure, RoHS compliant. Widely used for high-pressure compressed air transmission in industrial automation pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PAN-R-10X1,9-SI |
| MPN | 541677 |
| Product Type | Pneumatic Plastic Tubing |
| Series | PAN-R Series |
| Material | Polyamide PA |
| Size | OD 10mm, Wall thickness 1.9mm, ID 6.2mm |
| Color | Silver (SI) |
| Min Bending Radius | 30 mm |
| Working Medium | Compressed air (ISO 8573-1:2010 [7:-:-]) |
| Working Pressure | -0.95 ~ 14 bar at 20℃ |
| Ambient Temperature | -40 ~ 80 ℃ |
| Feature | High pressure resistance, rigid, good chemical resistance, low moisture absorption |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic Automation System |
