MS6-EE-1/2-10V24-S
Product Description

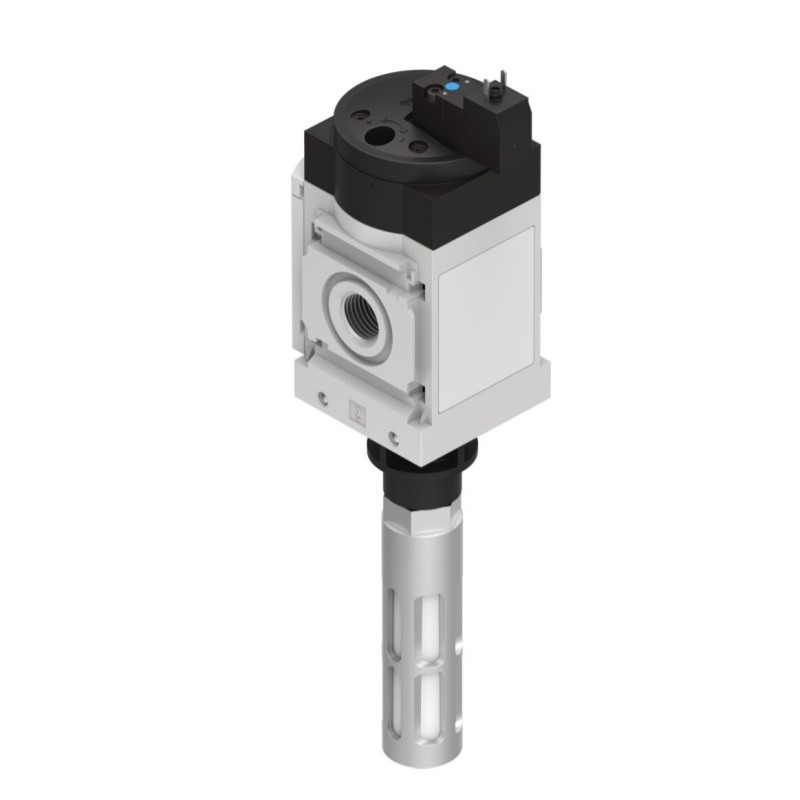

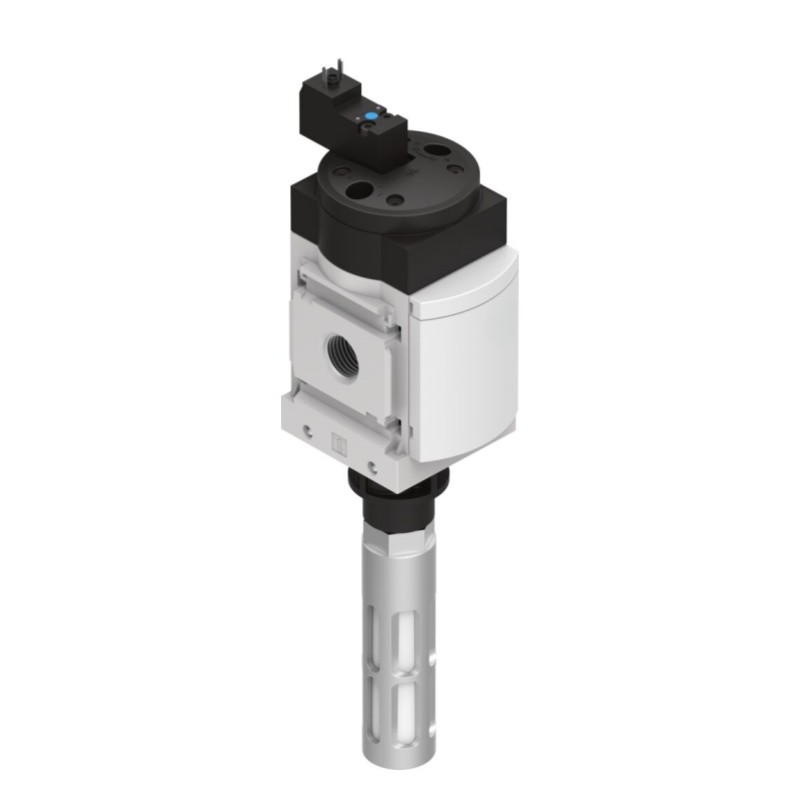

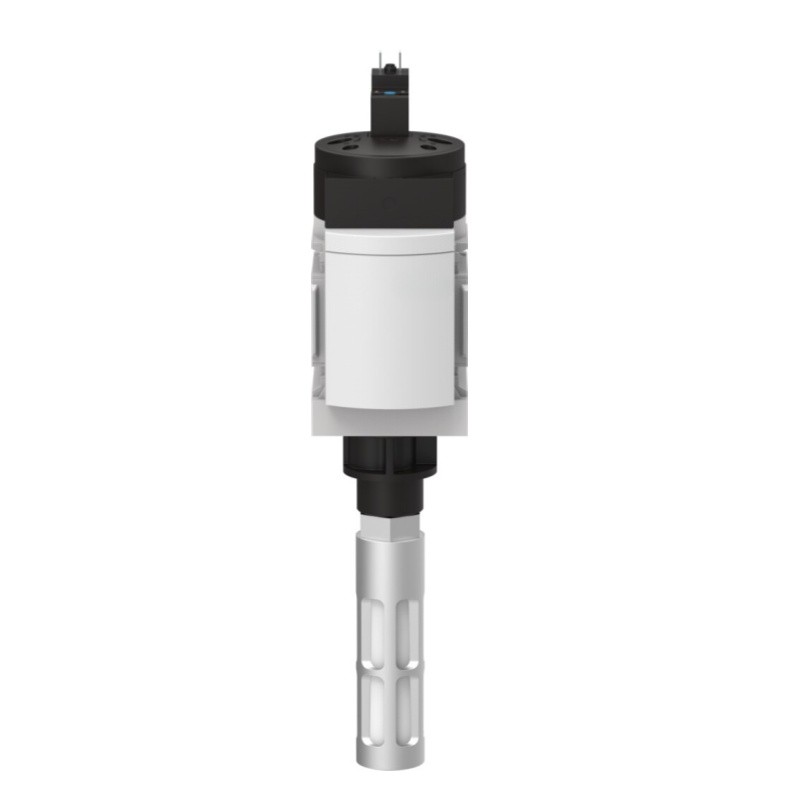

Festo MS6-EE-1/2-10V24-S (Part No.542602) is MS6 series electric on-off / soft start valve, designed as modular component for MS air service units. It is a 3/2-way normally closed monostable valve with G1/2 pneumatic port, nominal flow 7000 L/min.
Equipped with DC24V solenoid coil (2.5W), spring reset mechanism and touch manual override for maintenance operation. Working pressure 4~10 bar, IP65 protection. Die-cast aluminium body with NBR seals, suitable for compressed air and inert gas. It controls pressurization and exhaust of pneumatic pipelines, prevents sudden pressure impact to protect pneumatic equipment.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | MS6-EE-1/2-10V24-S |
| Part Number | 542602 |
| Type | Electric on-off / soft start valve |
| Series | MS6 |
| Valve Function | 3/2 normally closed, monostable |
| Pneumatic Port | G1/2 |
| Nominal Flow | 7000 L/min |
| Operating Pressure | 0.4 ~1.0 MPa (4~10 bar) |
| Coil Voltage | 24V DC |
| Coil Power | 2.5 W |
| Medium | Compressed air, inert gas |
| Ambient Temp | -10 ~ +50 ℃ |
| Protection Class | IP65 |
| Weight | 740.00 g |
| Housing Material | Die-cast Aluminium |
| Corrosion Class | CRC2 |
| Standard | LABS, RoHS |
