VAEM-L1-S-24-PT

属性名称	属性值
Brand	Festo
Model	VAEM-L1-S-24-PT
Part No	573940
Product Type	Electrical Interface for Valve Terminal
Series	VAEM-L1
Compatible Valve Terminal	VTUG valve terminal
Max Number of Valves	24 valves
Communication	IO-Link V1.1, COM2 (38.4 kBit/s)
Electrical Connector	M12, 5-pin A-coded
Operating Voltage	DC24V (±25%)
Logic Current PS	30 mA
Valve Supply Current PL	30 mA
Ambient Temperature	-5 ~ +50 ℃
Protection Class	IP67
Humidity	5 ~ 95% non-condensing
Weight	49.00 g
Corrosion

INQUIRY

Product Details

Product Tags

Product Description

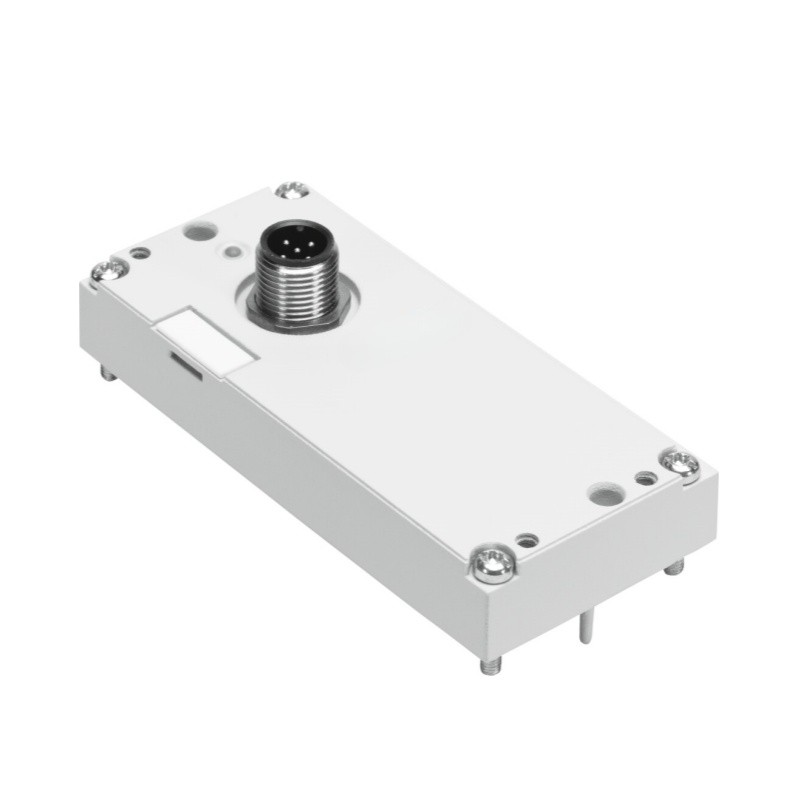

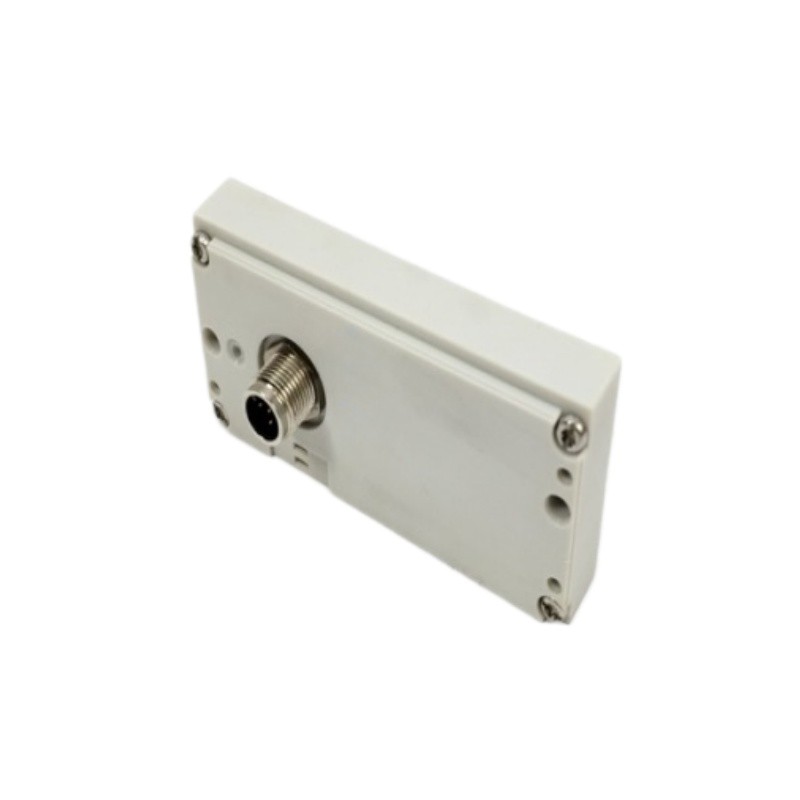

Festo VAEM-L1-S-24-PT (Part No.573940) is VAEM-L1 series electrical IO-Link interface module, dedicated for VTUG valve terminal. It can control up to 24 valves, realize parameter configuration and status diagnosis of valve island via IO-Link communication.

It adopts IO-Link V1.1 protocol with COM2 baud rate of 38.4 kBit/s. M12 5-pin A-coded connector, DC24V power supply, IP67 protection for reliable operation in industrial workshop. Light weight only 49g, CRC2 corrosion resistance, LABS & RoHS compliant. Simplify wiring and commissioning of VTUG valve islands in pneumatic automation systems.

Item	Specification
Brand	Festo
Model	VAEM-L1-S-24-PT
Part Number	573940
Product Type	Electrical interface for valve terminal
Series	VAEM-L1
Compatible Unit	VTUG valve terminal
Max. Valves	24 pcs
Communication	IO-Link V1.1, COM2 38.4kBit/s
Connector	M12, 5-pin A-coded
Operating Voltage	DC24V (±25%)
Ambient Temp	-5 ~ +50 ℃
Protection Class	IP67
Weight	49.00 g
Corrosion Class	CRC2
Certification	RoHS, LABS, cULus, RCM, KC-EMV
