197387 PUN-H-12x2-BL
Product Overview

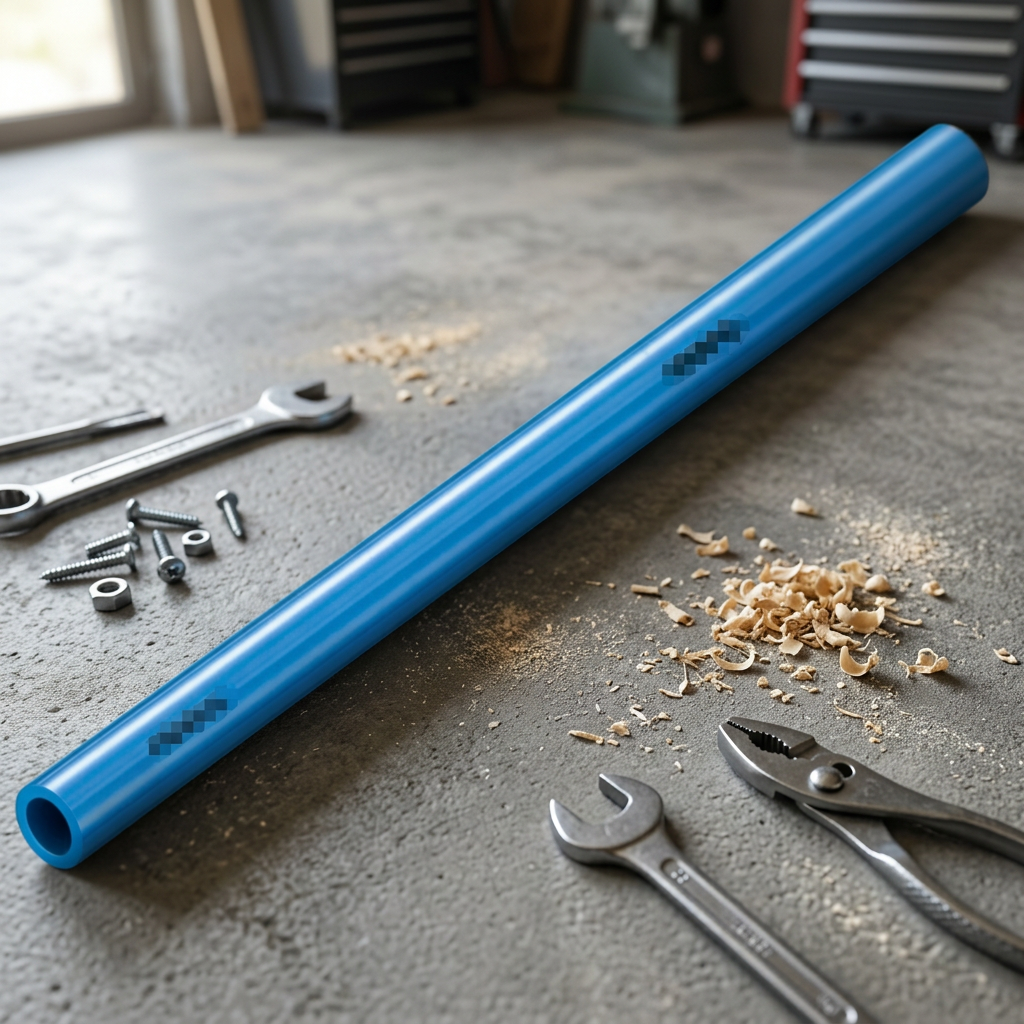

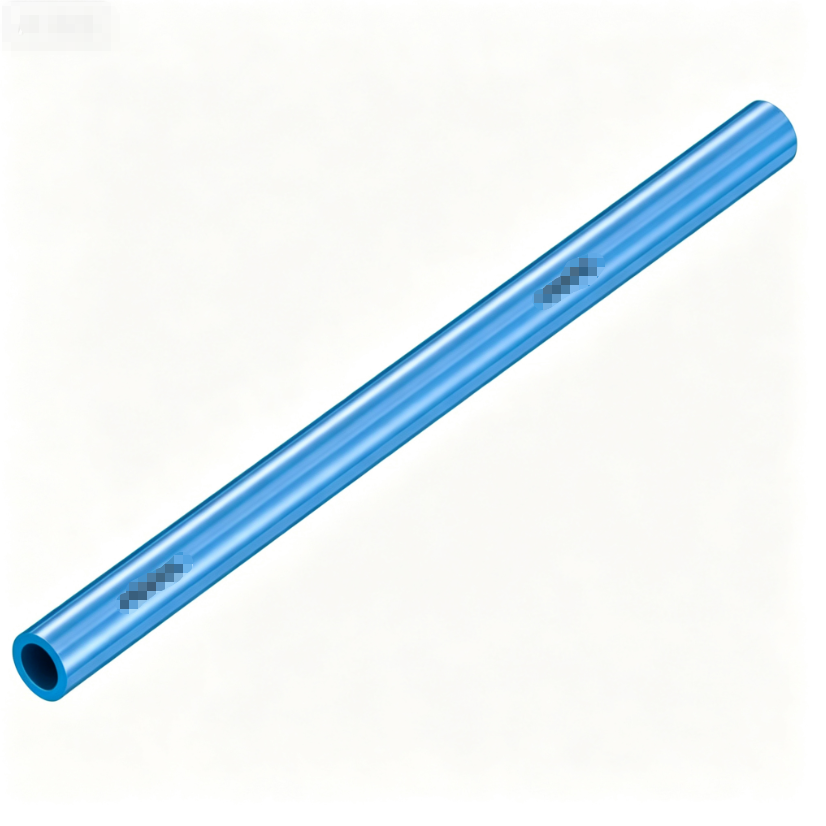

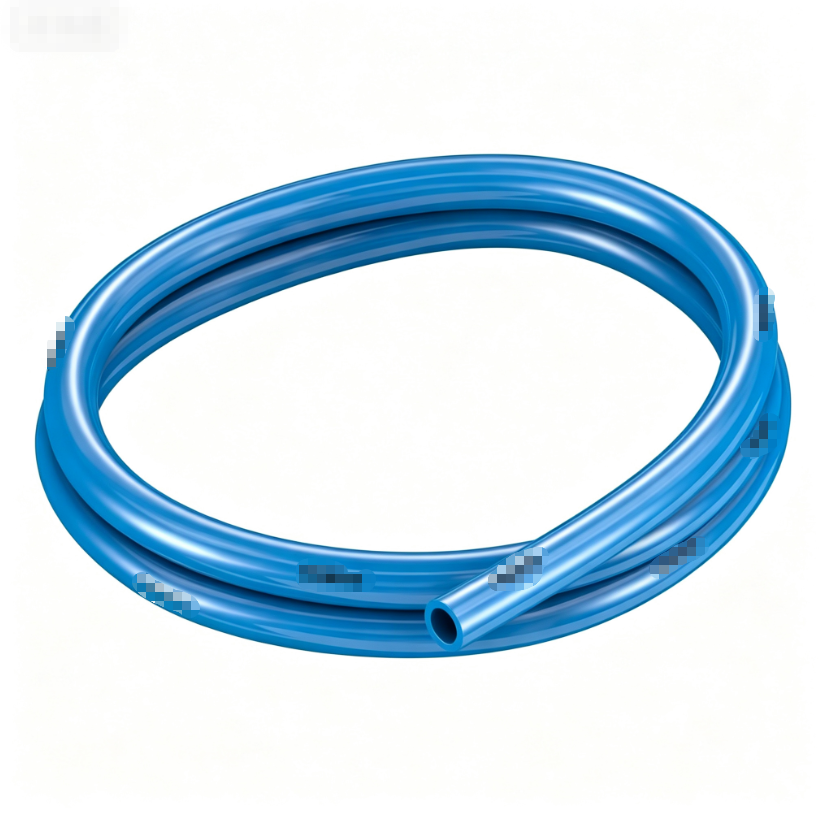

PUN-H-12x2-BL (Part No.197387) is Festo PUN-H series blue polyurethane pneumatic tubing. Dimension OD12mm, wall thickness 2mm, inner diameter 8mm. Made of high-quality PU material, featuring excellent flexibility, anti-kinking and abrasion resistance. Compatible with Festo QS push-in quick connectors for fast pneumatic pipeline assembly. Working pressure up to 10 bar at 20℃, ambient temperature range -35~60℃. Suitable for compressed air and vacuum circuits. RoHS & PWIS compliant. Widely used for pneumatic pipeline connection in packaging, handling and general industrial automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | PUN-H-12x2-BL |
| MPN | 197387 |
| Product Type | Pneumatic Plastic Tubing, PU Air Hose |
| Series | PUN-H Series |
| Size | Outer diameter:12mm, Wall thickness:2mm, Inner diameter:8mm, Color:Blue |
| Material | Polyurethane (PU) |
| Working Medium | Compressed air, vacuum |
| Working Pressure | 0 ~ 10 bar (20℃) |
| Ambient Temperature | -35 ~ 60 ℃ |
| Feature | Blue PU pneumatic tube, high flexibility, good abrasion resistance, resistant to kinking, suitable for push-in fittings |
| Compliance | RoHS compliant, PWIS conformity |
| Application | Pneumatic pipeline connection, match with quick push-in fittings, automation compressed air & vacuum circuit |
