170829 DFM-12-50-P-A-GF
Product Overview

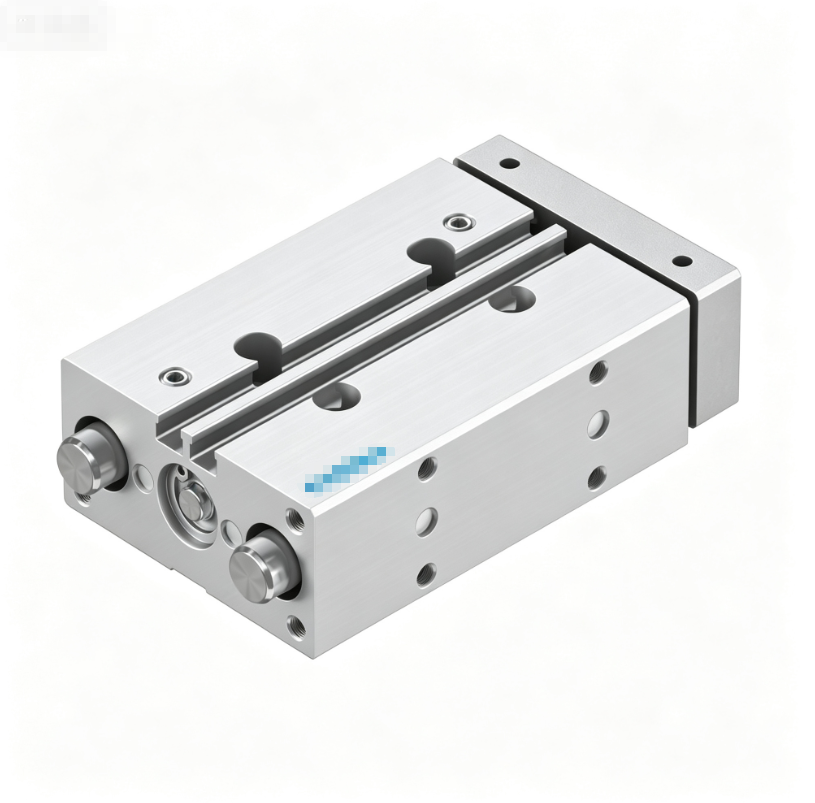

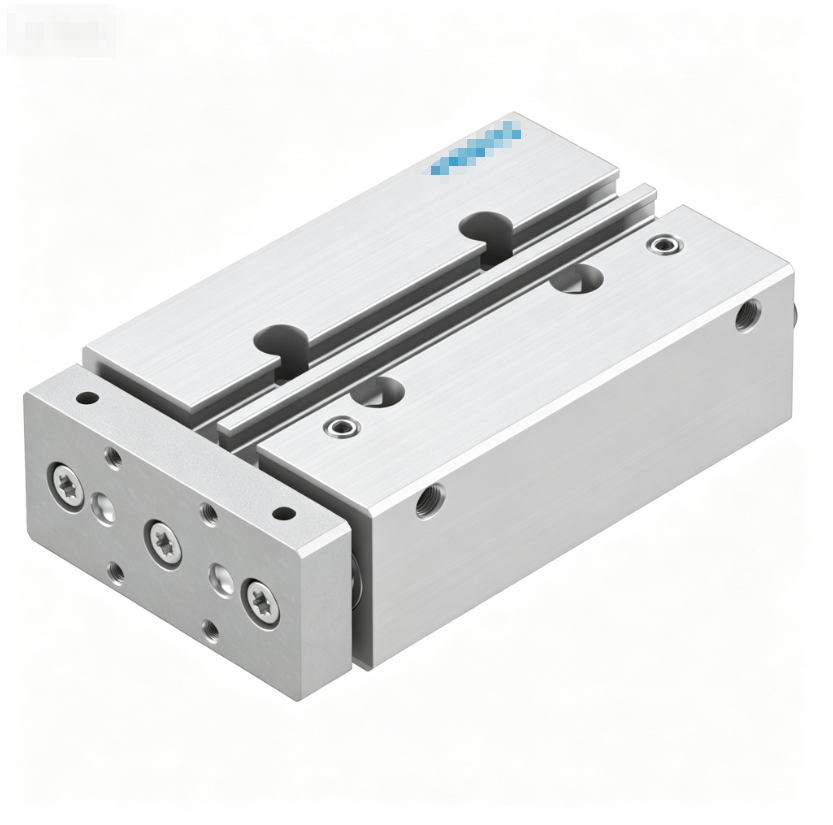

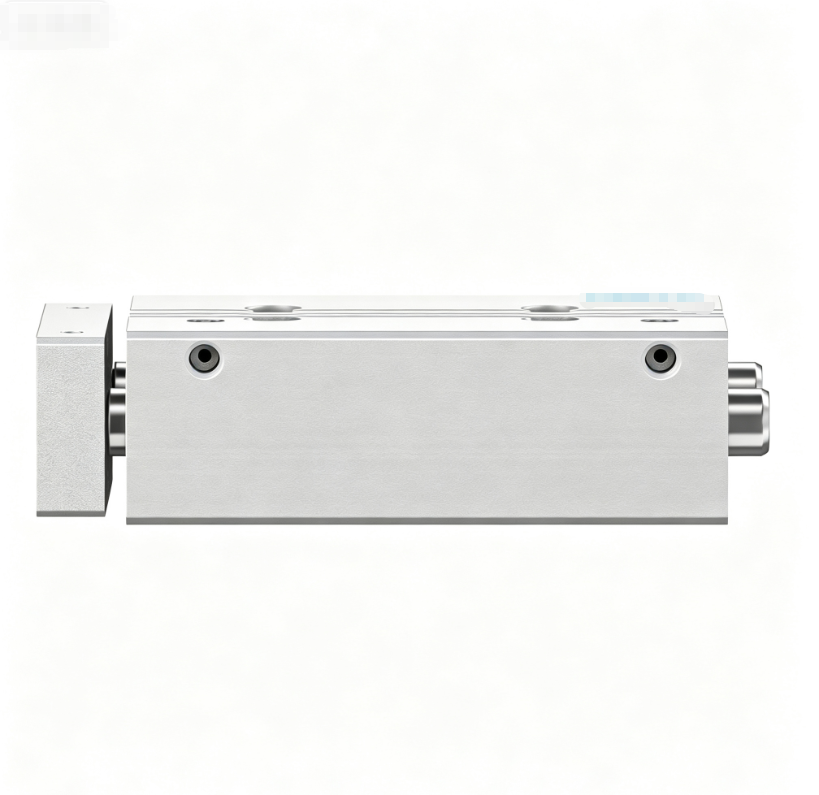

DFM-12-50-P-A-GF (Part No.170829) is Festo DFM series compact double-acting guided pneumatic actuator. Bore 12mm, stroke 50mm, equipped with GF twin integrated guide rods. The barrel and end caps are made of aluminium alloy, and the guide rods adopt hard chrome-plated steel for excellent anti-torsion performance. Built-in magnetic piston can be fitted with magnetic position sensors to achieve stroke position feedback. Working pressure 0.1~10 bar, ambient temperature -20~80℃. CE & RoHS compliant. Widely used for small linear positioning, clamping and pick & place applications in industrial automation machinery.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DFM-12-50-P-A-GF |
| MPN | 170829 |
| Product Type | Pneumatic Guided Actuator, Guided Cylinder |
| Series | DFM Series |
| Bore | 12 mm |
| Stroke | 50 mm |
| Version | Double-acting, GF integrated twin guide rods, magnetic piston |
| Material | Barrel & End caps: Aluminium alloy; Guide rods: Hard chrome-plated steel |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | 0.1 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | Compact guided air cylinder, dual guide rods, high anti-torsion capacity, built-in magnet for position sensor mounting |
| Compliance | RoHS compliant, CE certified |
| Application | Industrial automation linear handling, pick and place, clamping, small linear positioning |
