14322 DSNU-25-460-PPV-A
Product Overview

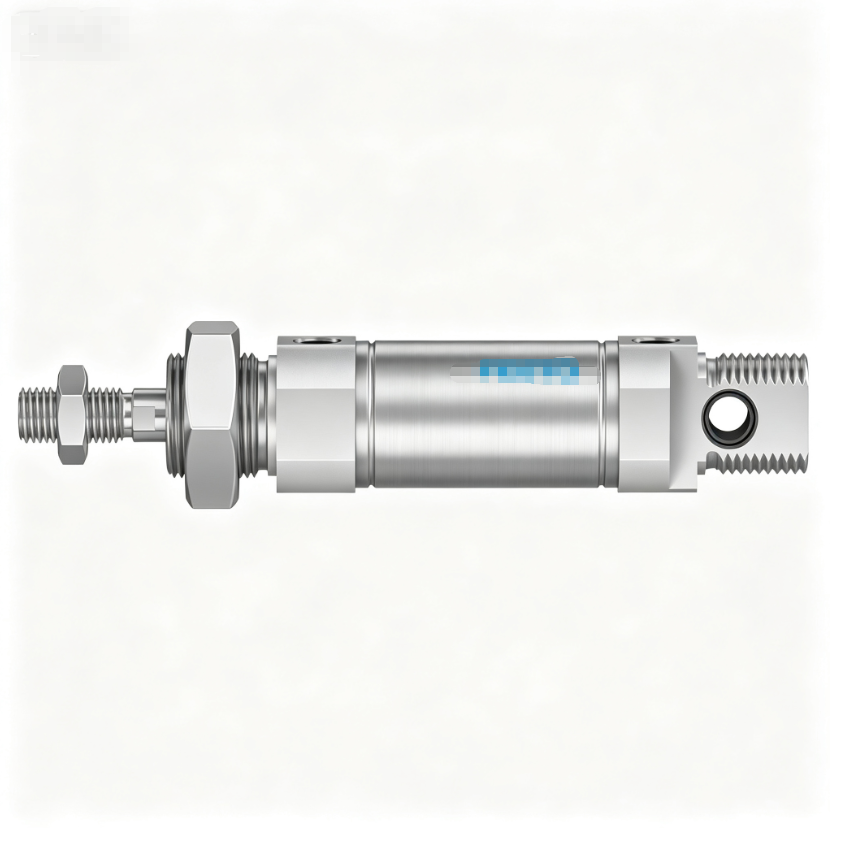

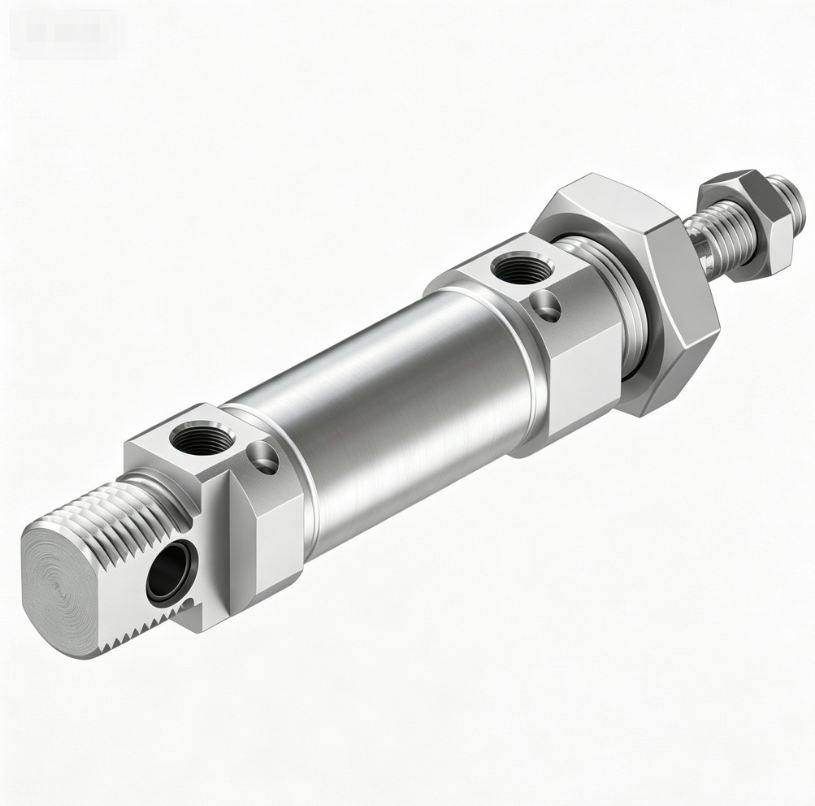

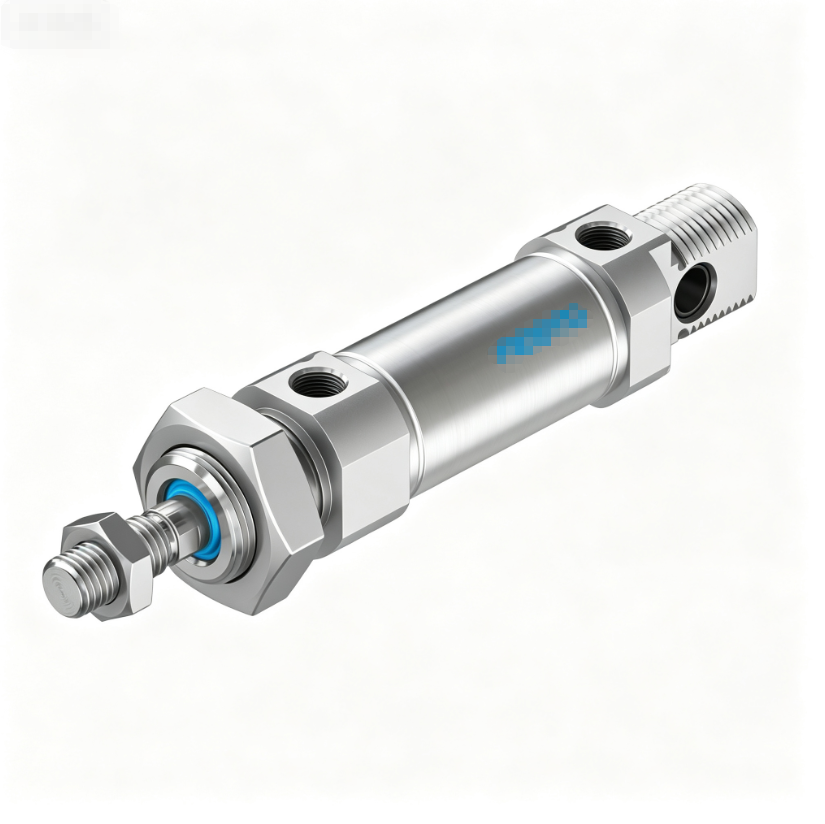

DSNU-25-460-PPV-A (Part No.14322) is Festo DSNU series round body double-acting pneumatic cylinder. Bore 25mm, stroke 460mm, equipped with PPV adjustable pneumatic end cushioning. The barrel and end caps are made of aluminium alloy, and the piston rod adopts hard chrome-plated steel for smooth operation and wear resistance. Built-in magnetic piston enables mounting of magnetic position sensors for stroke position feedback. PPV pneumatic cushion absorbs impact and reduces noise at both stroke ends. Working pressure 0.1~10 bar, ambient temperature -20~80℃. RoHS compliant. Widely applied for linear motion tasks in packaging machinery, material handling and general industrial automation.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DSNU-25-460-PPV-A |
| MPN | 14322 |
| Product Type | Pneumatic Round Body Cylinder |
| Series | DSNU Series |
| Bore | 25 mm |
| Stroke | 460 mm |
| Version | Double-acting, PPV adjustable pneumatic cushioning |
| Material | Barrel & End caps: Aluminium alloy; Piston rod: Hard chrome-plated steel |
| Working Medium | Compressed air (ISO 8573-1:2010) |
| Working Pressure | 0.1 ~ 10 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | Round body double acting cylinder, built-in magnetic piston for sensor mounting, PPV adjustable end cushioning, compact round design, stable linear motion |
| Compliance | RoHS compliant |
| Application | Industrial automation linear drive, material handling, packaging machine actuator |
