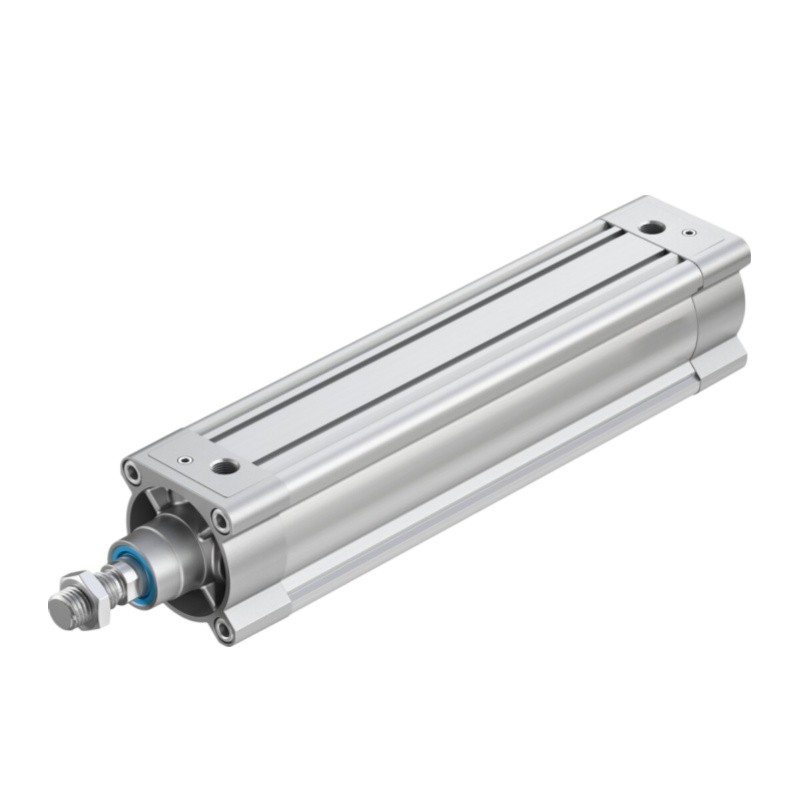

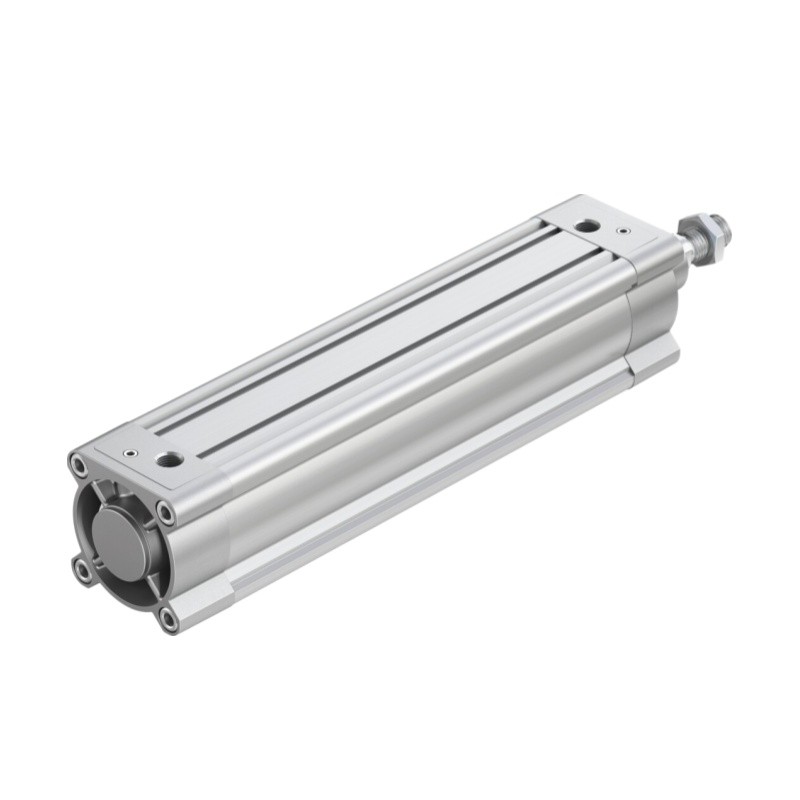

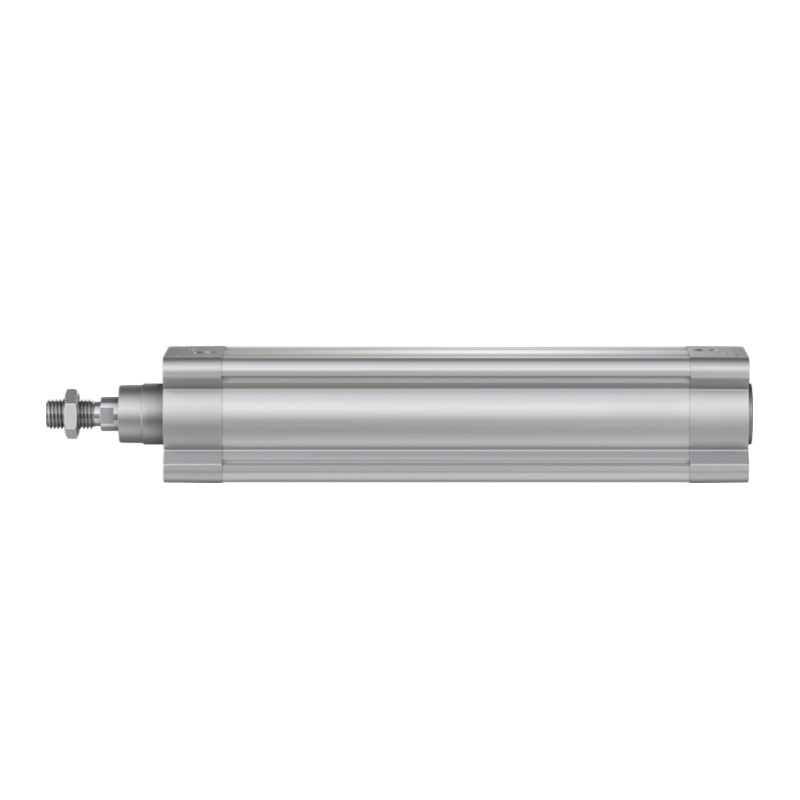

DSBC-80-300-PPVA-N3
Product Overview
DSBC-80-300-PPVA-N3, Part No.1383374, belongs to Festo DSBC series ISO15552 standard pneumatic cylinder. Double acting with magnetic piston (N3), compatible with T-slot magnetic proximity sensors for piston position feedback. PPVA adjustable pneumatic cushioning at both ends to reduce impact and noise during long stroke movement. ISO15552 standard dimensions with rich mounting accessories, widely used for heavy load pushing, lifting and transfer applications.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSBC-80-300-PPVA-N3 |
| Part No. | 1383374 |
| Type | ISO 15552 standard cylinder, double acting |
| Piston diameter | 80 mm |
| Stroke | 300 mm |
| Cushioning | PPVA: adjustable pneumatic cushioning at both ends |
| Pneumatic port | G1/2 |
| Theoretical force @6 bar | Advance:3016 N, Retract:2643 N |
| Working medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Working pressure | 0.6 ~ 12 bar |
| Temperature range | -20 ~ 80 ℃ |
| Material | Barrel: Anodised aluminium, End cap: Cast aluminium, Piston rod: High-alloy stainless steel, Seal: NBR |
| Weight | 8650.00 g |
| Feature | N3: magnetic piston for position sensor, adjustable cushion, multiple mounting options |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Standard | ISO 15552 |
