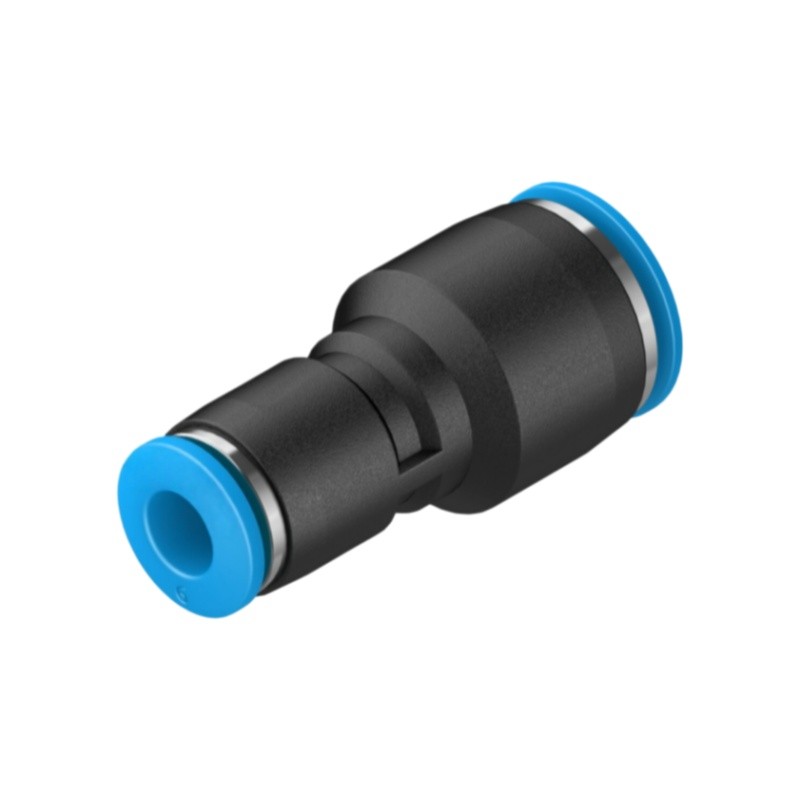

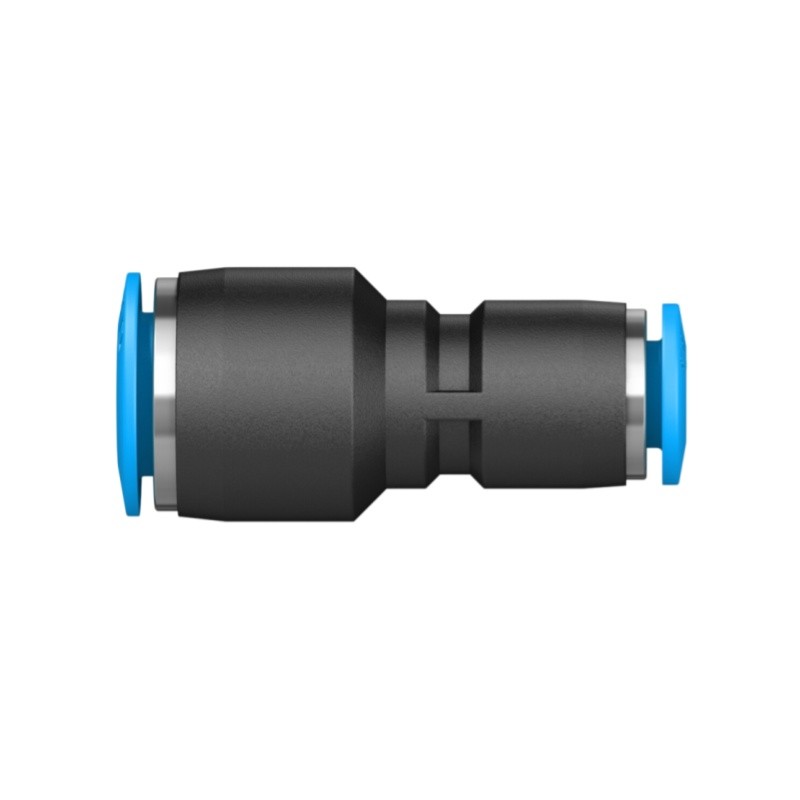

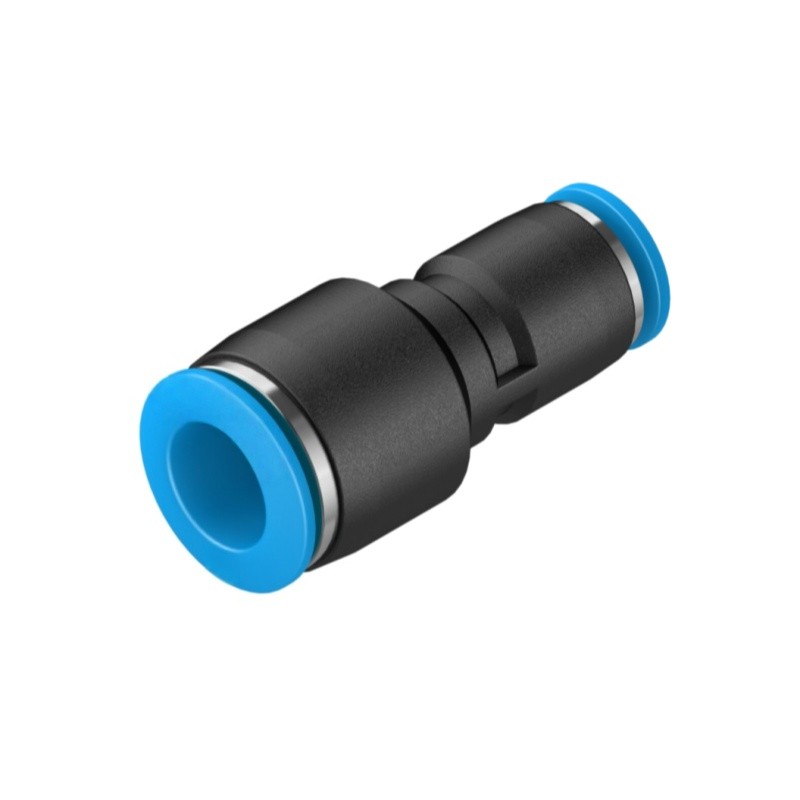

QS-10-8
Product Overview
QS-10-8, Part No.153010, is Festo QS series straight push-in reducing fitting. It is a tube-to-tube adapter for connecting 10mm OD pneumatic tube to 8mm OD tube. Adopts push-pull quick connection principle, no tools needed for tube insertion and removal. Compact structure and reliable sealing, widely used for diameter transition of pneumatic pipelines in automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-10-8 |
| Part No. | 153010 |
| Type | Straight push-in reducing fitting |
| Tube OD Inlet | 10 mm |
| Tube OD Outlet | 8 mm |
| Nominal bore | 7 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 8.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull principle, tube to tube reducing adapter |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
