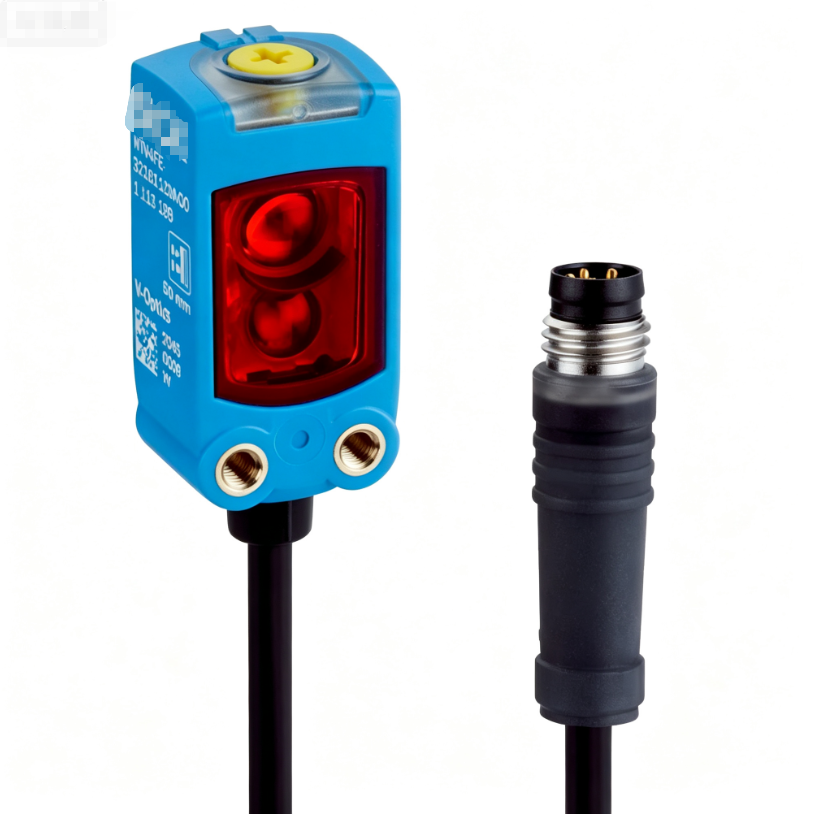

1105444 WTV4FE-22161120A00
Product Overview
WTV4FE-22161120A00 (Part No.1105444) is a long-range compact diffuse photoelectric sensor with background suppression from SICK WTV4FE series. It adopts PinPoint 650nm visible red LED light source, with sensing distance ranging from 20 mm to 1600 mm. No adjustment is required, and it provides PNP output with switchable Light-ON / Dark-ON function. It comes with a 2m fixed cable, plastic housing with IP67 protection class and built-in visible LED working indicator. Thanks to background suppression technology, it can detect target objects stably and avoid false triggers caused by background interference. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WTV4FE-22161120A00 |
| Part No. | 1105444 |
| Product Type | Photoelectric Sensor |
| Series | WTV4FE |
| Principle | Diffuse photoelectric sensor with background suppression |
| Light Source | PinPoint red LED, 650nm |
| Sensing Distance | 20 ~ 1600 mm |
| Adjustment | No adjustment |
| Output | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | DC10 ~ 30 V |
| Cable | 2m fixed cable |
| Protection Class | IP67 |
| Housing Material | Plastic |
| Switching Frequency | 500 Hz |
| Special Feature | Compact design, background suppression, visible LED indicator, long sensing range |
| Condition | New Original |
| Application | Object detection, packaging machinery, conveyor systems, material handling |
| Net Weight | 0.033 KG |
| Gross Weight | 0.060 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
