8047616 DFPD-80-RP-90-RD-F0507
Product Overview

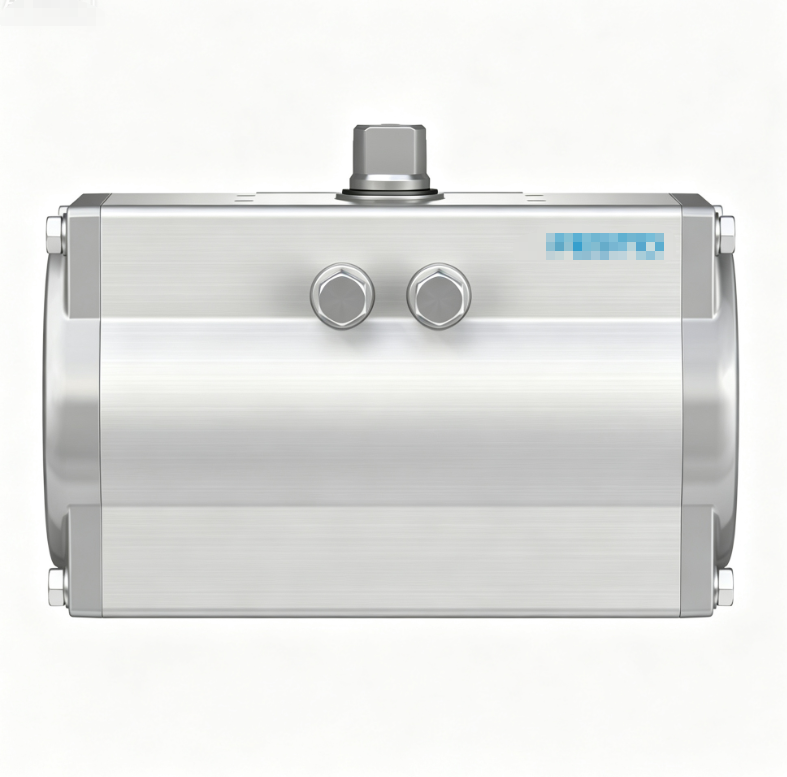

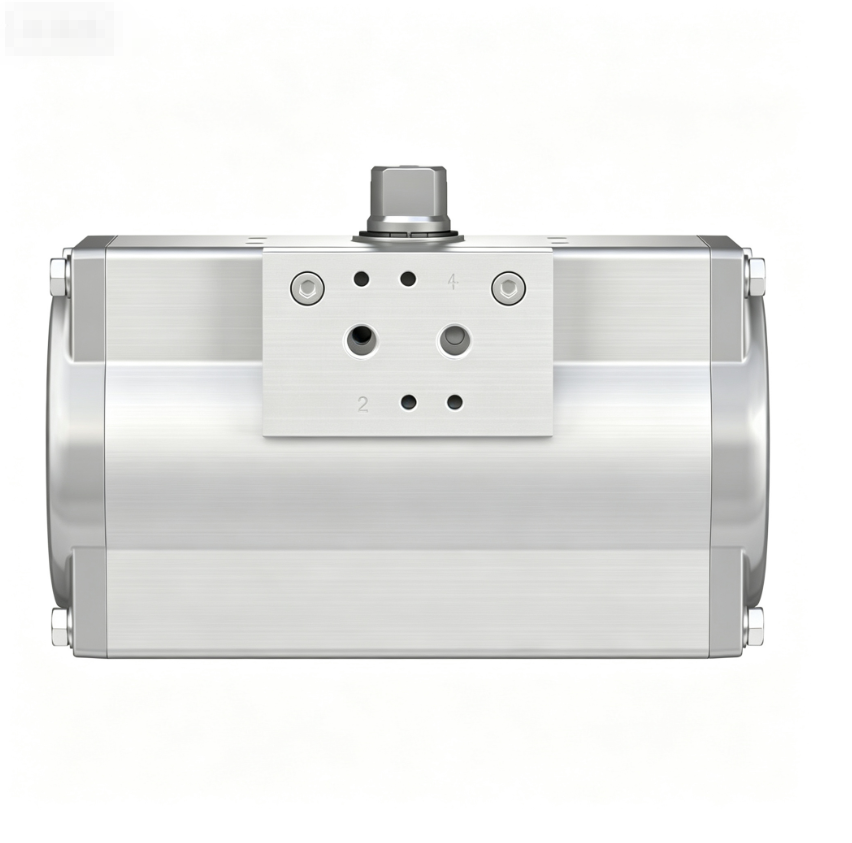

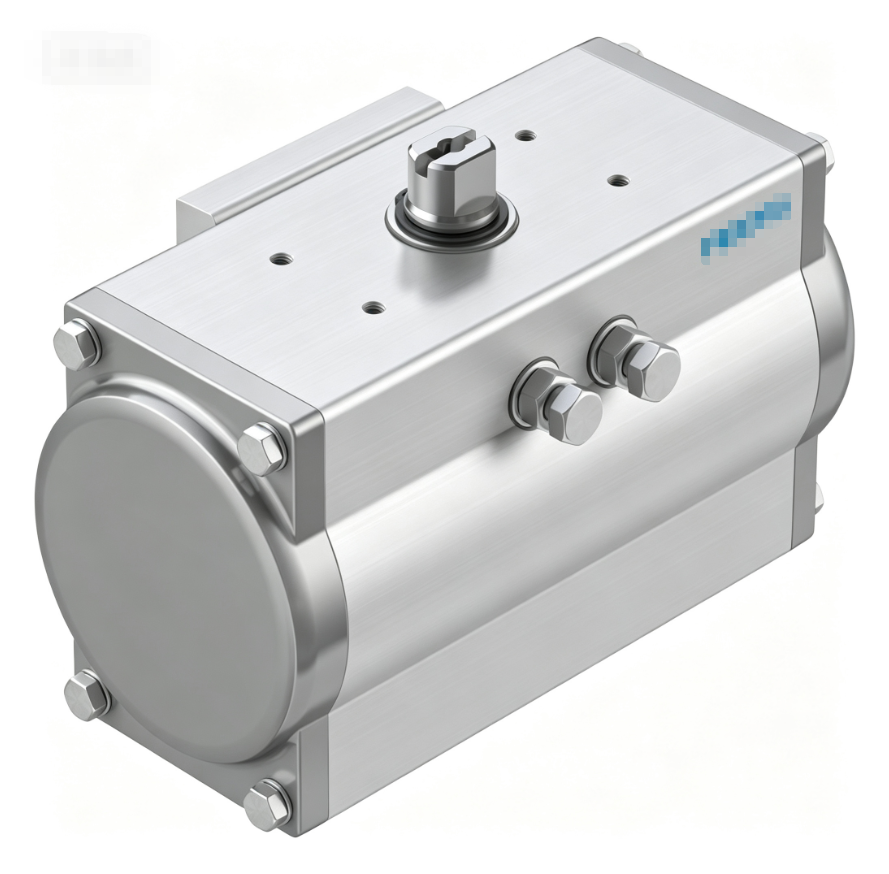

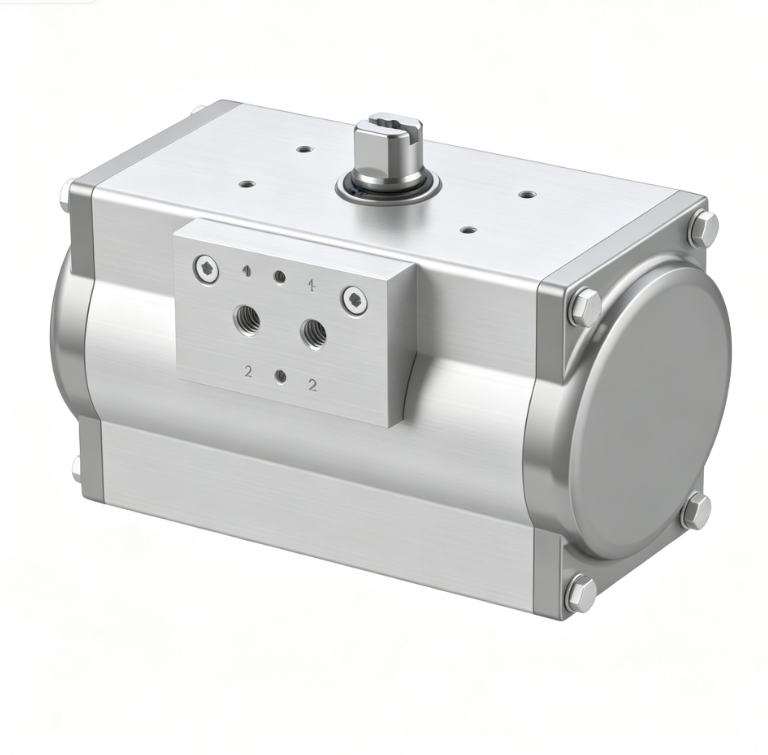

DFPD-80-RP-90-RD-F0507 (Part No.8047616) is Festo DFPD series rack & pinion quarter-turn pneumatic rotary actuator. Size 80, swivel angle 90°, fitted with F0507 ISO5211 flange and G1/8 pneumatic port. Adopts rack and pinion structure to deliver constant torque output. It comes with NAMUR interface complying with VDI/VDE 3845 standard and adjustable end stops for precise position setting. Working pressure 2~8 bar, ambient temperature -20~80℃, RoHS compliant. Widely applied to actuate ball valves, butterfly valves and air dampers for pipeline and process automation projects.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | DFPD-80-RP-90-RD-F0507 |
| MPN | 8047616 |
| Product Type | Pneumatic Quarter-turn Rotary Actuator, Rack & Pinion Actuator |
| Series | DFPD Series |
| Size | 80 |
| Swivel Angle | 90° |
| Flange Standard | ISO 5211, F0507 flange pattern |
| Pneumatic Port | G1/8 |
| Working Medium | Compressed air (ISO 8573-1) |
| Working Pressure | 2 ~ 8 bar |
| Ambient Temperature | -20 ~ 80 ℃ |
| Feature | Rack and pinion structure, double acting rotary actuator, NAMUR interface VDI/VDE 3845, adjustable end position, constant torque output |
| Compliance | RoHS compliant |
| Application | Ball valve, butterfly valve, damper automation, process control, industrial pipeline valve actuation |
