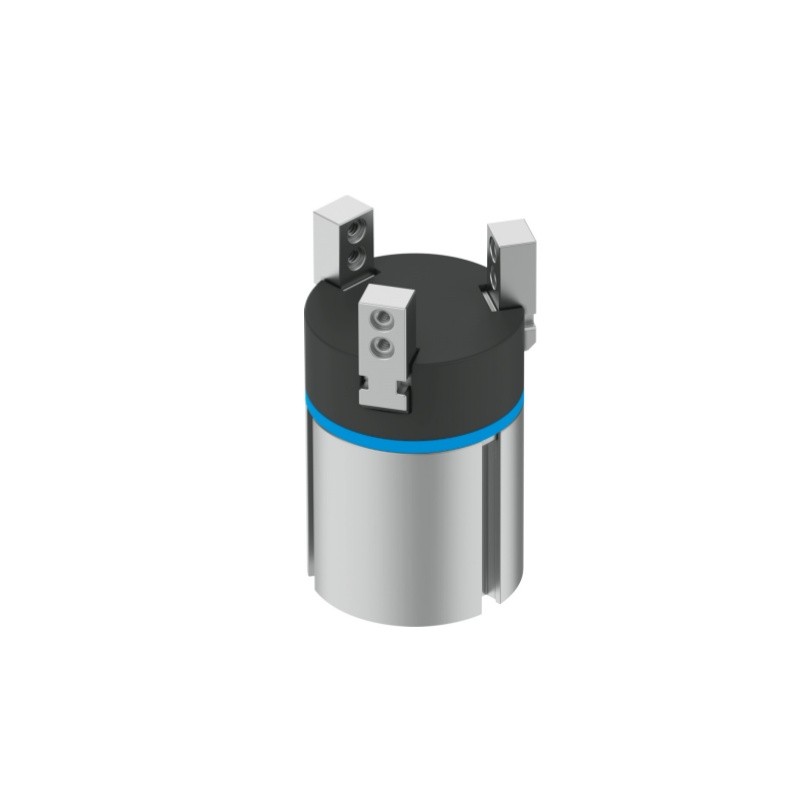

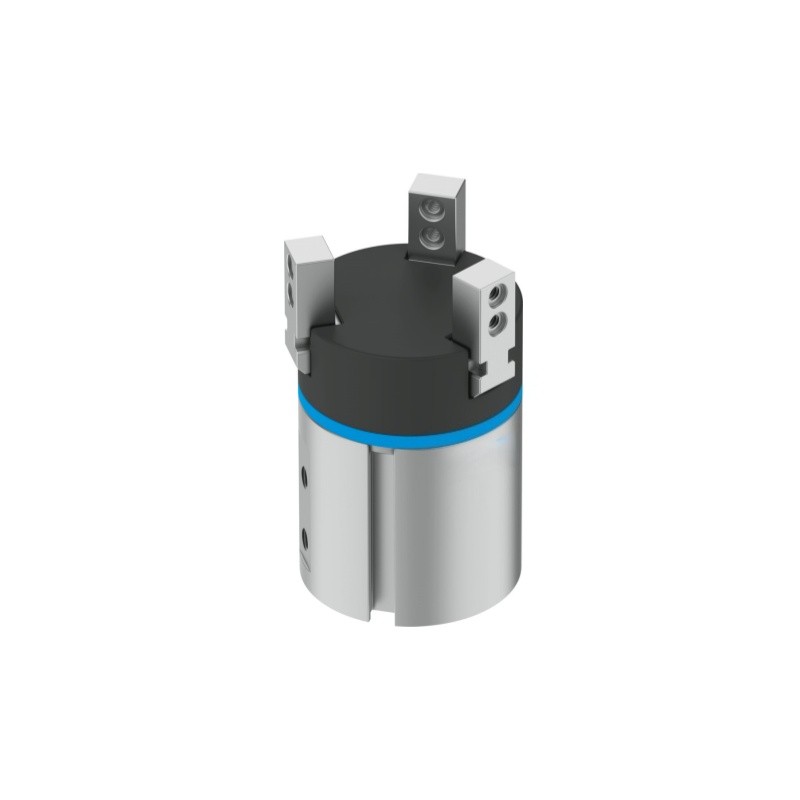

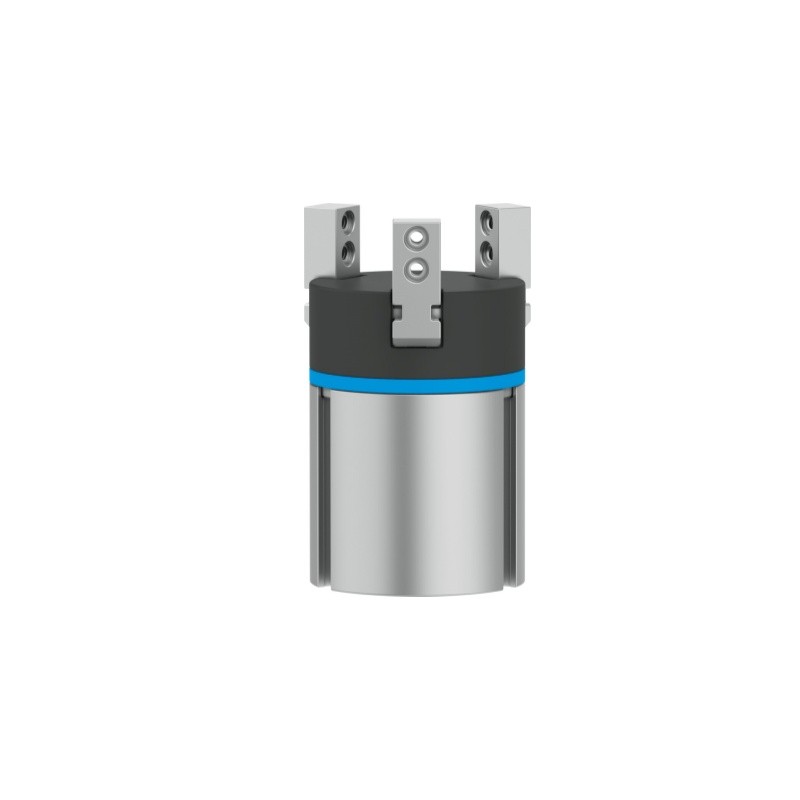

DHDS-32-A

属性名	属性值
Brand	Festo
Model	DHDS-32-A
Part No.	1259493
Type	Three-point gripper, double acting
Size	32
Jaw quantity	3 fingers
Stroke per jaw	3.9 mm
Gripping force @6 bar (closing)	115 N per jaw
Gripping force @6 bar (opening)	135 N per jaw
Pneumatic port	M5
Working medium	Compressed air ISO 8573-1:2010 [7:4:4]
Working pressure	2 ~ 8 bar
Temperature range	5 ~ 60 ℃
Repeat accuracy	≤0.04 mm
Max operating frequency	≤4 Hz
Material	Housing: hard anodised aluminium; Gripper jaws: high-all

INQUIRY

Product Details

Product Tags

Product Overview

DHDS-32-A, Part No.1259493, belongs to Festo DHDS series three-point pneumatic gripper. It is double acting with three fingers, specially designed for clamping round workpieces. Adopts T-slot precision guide for gripper jaws, high repeat accuracy ≤0.04 mm. Supports both internal gripping and external gripping. Reserved installation space for proximity switches to detect jaw position. Compact and robust structure, widely used for gripping cylindrical parts in robotic handling systems.

属性名	属性值
Brand	Festo
Model	DHDS-32-A
Part No.	1259493
Type	Three-point gripper, double acting
Size	32
Jaw quantity	3 fingers
Stroke per jaw	3.9 mm
Gripping force @6 bar (closing)	115 N per jaw
Gripping force @6 bar (opening)	135 N per jaw
Pneumatic port	M5
Working medium	Compressed air ISO 8573-1:2010 [7:4:4]
Working pressure	2 ~ 8 bar
Temperature range	5 ~ 60 ℃
Repeat accuracy	≤0.04 mm
Max operating frequency	≤4 Hz
Material	Housing: hard anodised aluminium; Gripper jaws: high-alloy stainless steel; Cover cap: PA
Weight	276.00 g
Feature	Double acting, T-slot jaw guide, internal & external gripping, proximity switch sensing available
Corrosion resistance class	CRC1
RoHS	Compliant
