NAS-3/8-2A-ISO
Product Overview

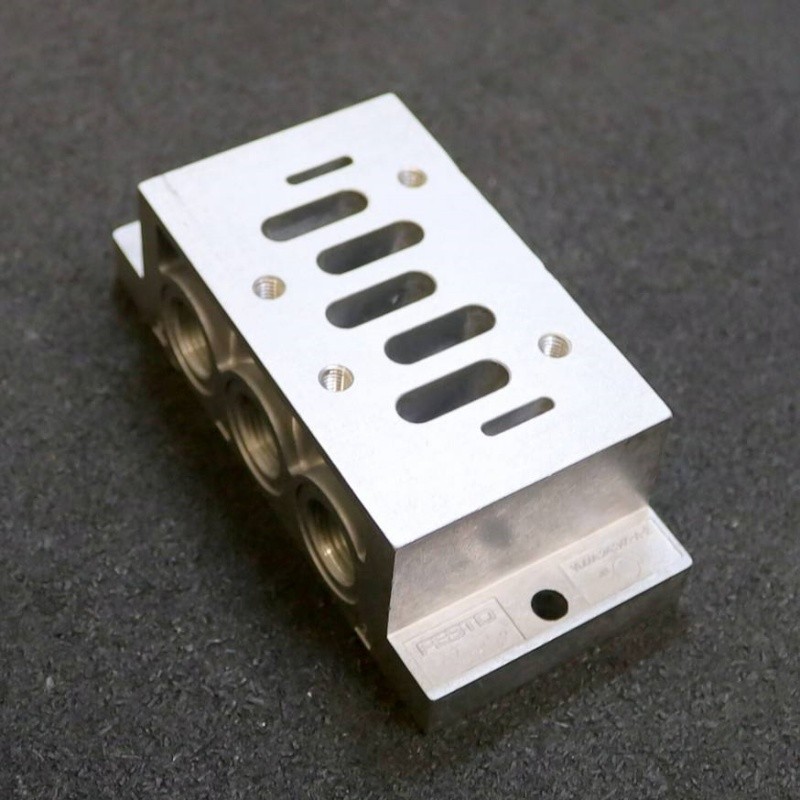

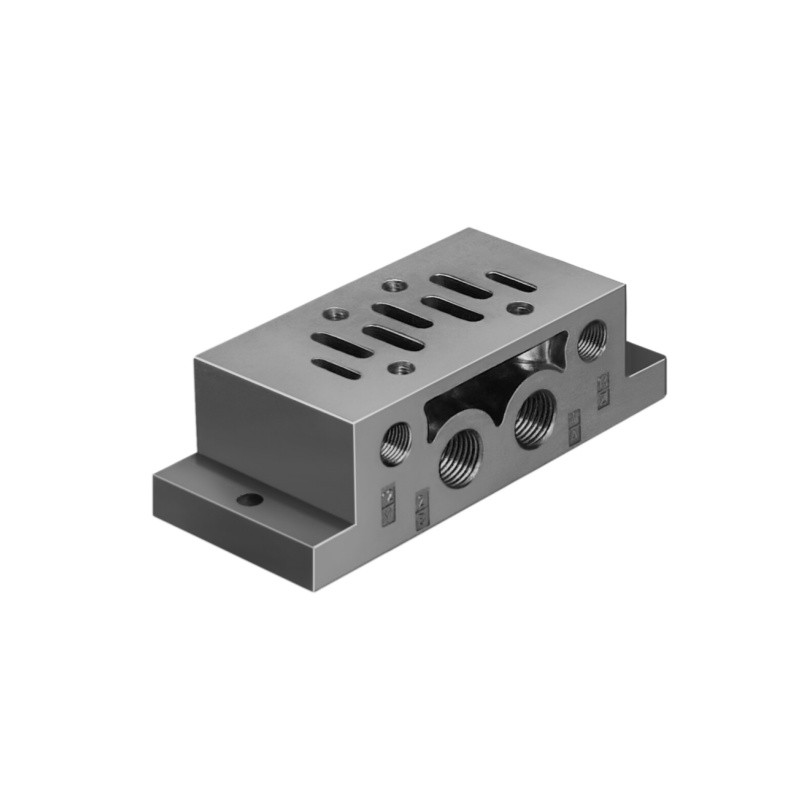

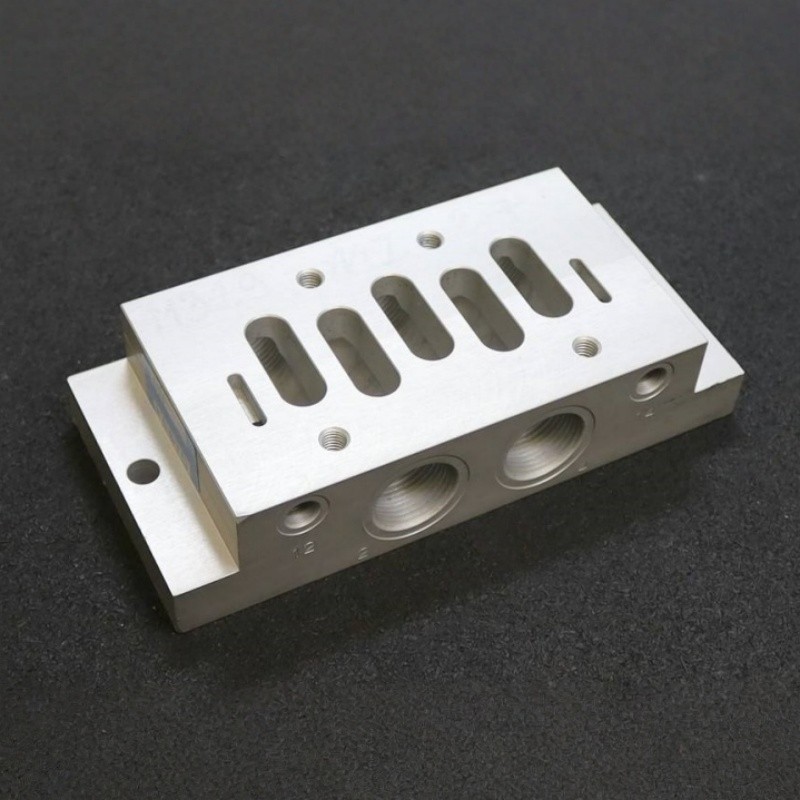

New Original FESTO NAS-3/8-2A-ISO belongs to NAS series individual valve sub-base, conforming to ISO5599-1 and VDMA24345-A-2 standard. Main pneumatic ports G3/8, auxiliary pilot air port G1/8. Made of die-cast aluminium, copper-free and PTFE-free material. It adopts side pipeline connection and through-hole mounting design, suitable for independent installation of ISO standard pneumatic solenoid valves. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. Widely used as mounting base for ISO 5599 pneumatic control valves.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | NAS-3/8-2A-ISO |
| Order No. | 11310 |
| Product Series | NAS |
| Product Type | Individual sub-base for ISO solenoid valve |
| Standard | ISO 5599-1, VDMA 24345-A-2 |
| Pneumatic port | Port1/2/3/4/5: G3/8 |
| Pilot air port | G1/8 |
| Operating pressure | -0.95 ~ 16 bar |
| Ambient Temperature | -10 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Housing material | Die-cast aluminium, copper-free & PTFE-free |
| Feature | LABS (PWIS) compliant VDMA24364-B1/B2-L；Side connection design, ISO 标准阀底座，用于 ISO5599 电磁阀独立安装，通孔安装 |
| Mounting | With through-hole, any mounting position |
| Corrosion Resistance Class | CRC2 |
| Weight | 300 g |
| Certificate | RoHS, UL Recognized (OL) |
| Origin | Germany |
| Condition | New Original |
