QST-6
Product Overview

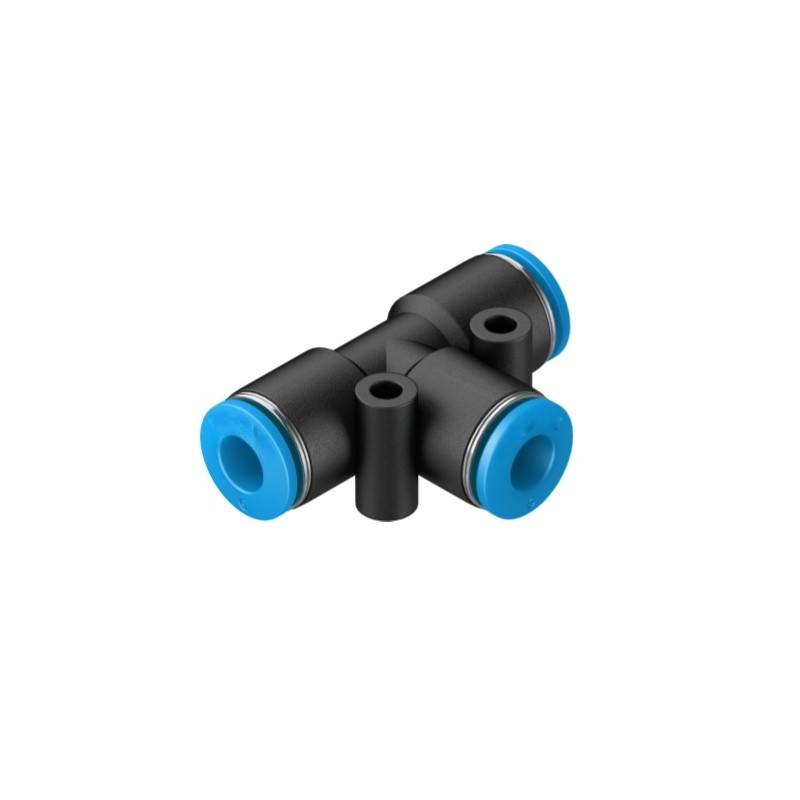

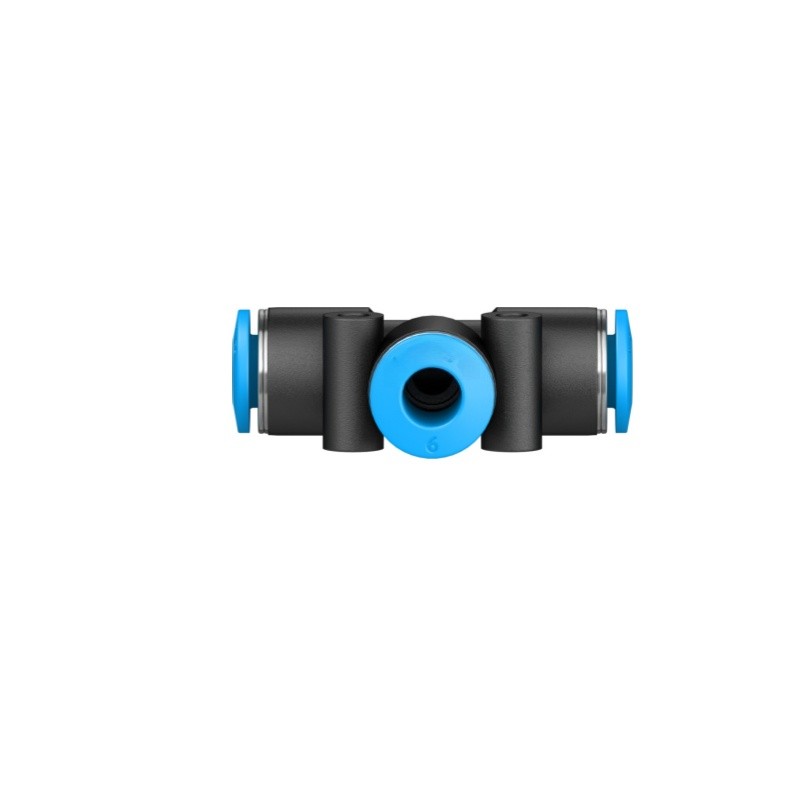

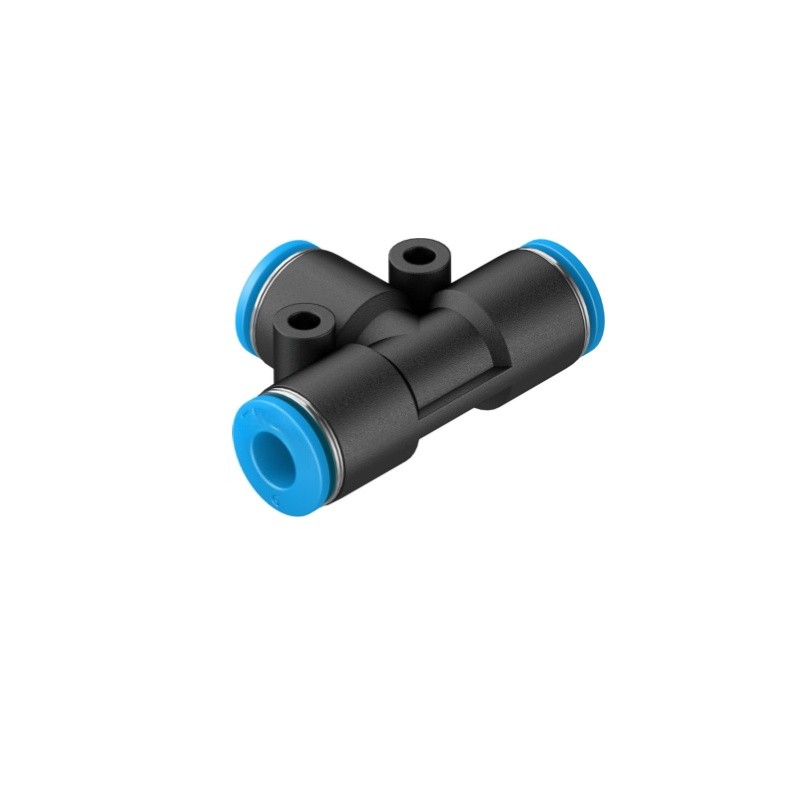

New Original FESTO QST-6 belongs to QST series T-type push-in fitting. Three ports fit pneumatic tubing with OD 6mm, nominal width 4.8mm. Push-pull quick connection design, easy tube insertion and removal without tools. PBT fitting body, blue POM release ring, NBR seal and high-alloy stainless steel tube clamping component. Operating pressure -0.95~14 bar, ambient temperature -10~+80℃. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, packaging and paint workshop automation. It can also be used in ISO14644-1 Class4 cleanroom, widely used for 3-way shunt of pneumatic pipelines.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QST-6 |
| Order No. | 153129 |
| Product Series | QST |
| Product Type | T-type push-in pneumatic fitting |
| Connection | Three ports for tubing OD 6 mm |
| Nominal width | 4.8 mm |
| Operating pressure | -0.95 ~ 14 bar |
| Ambient Temperature | -10 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-], ice-free liquid water |
| Housing material | PBT |
| Release ring | POM, blue |
| Seal material | NBR |
| Tube clamping component | High-alloy stainless steel |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；Push-pull quick connection, T-branch for air pipeline shunt, cleanroom ISO14644-1 Class4 available |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC1 |
| Weight | 11 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
