MS6-LFR-1/2-D7-C-U-V-RG-AS-UL1
Product Overview

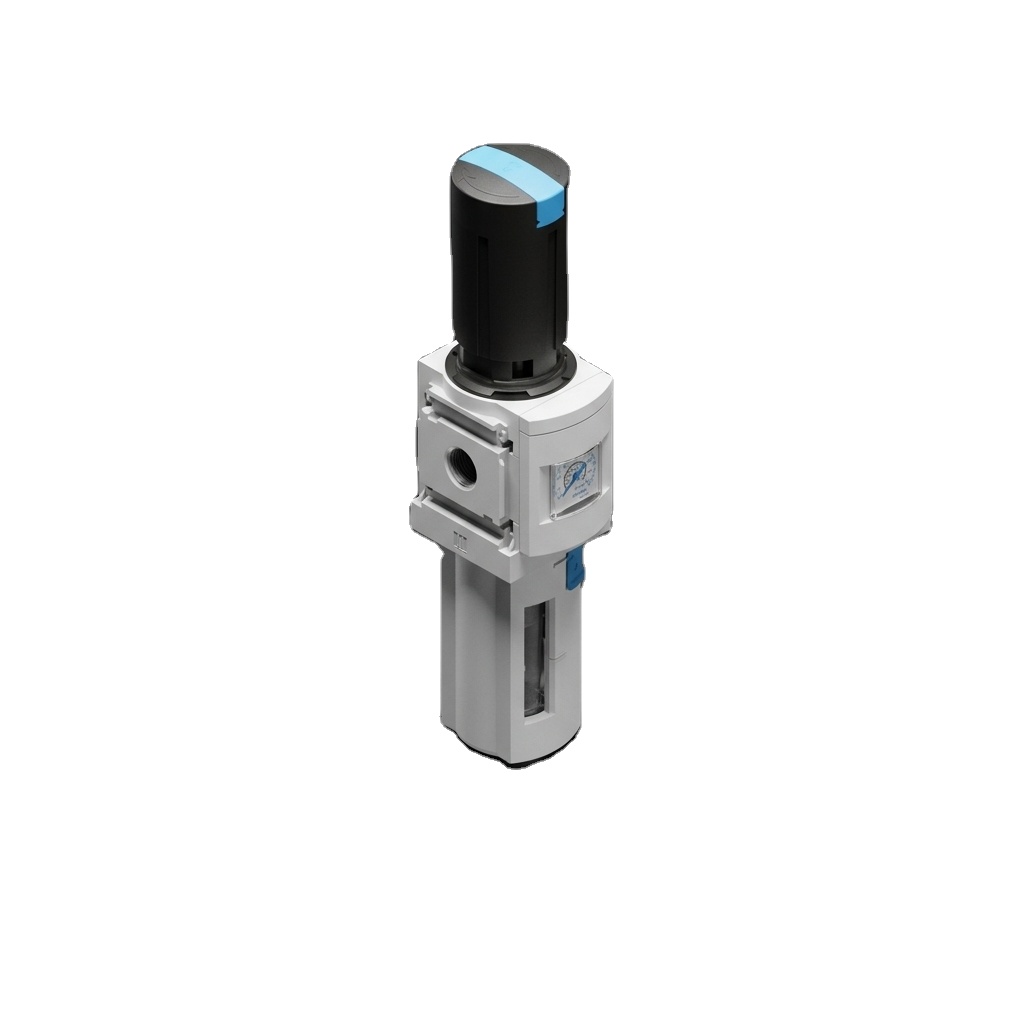

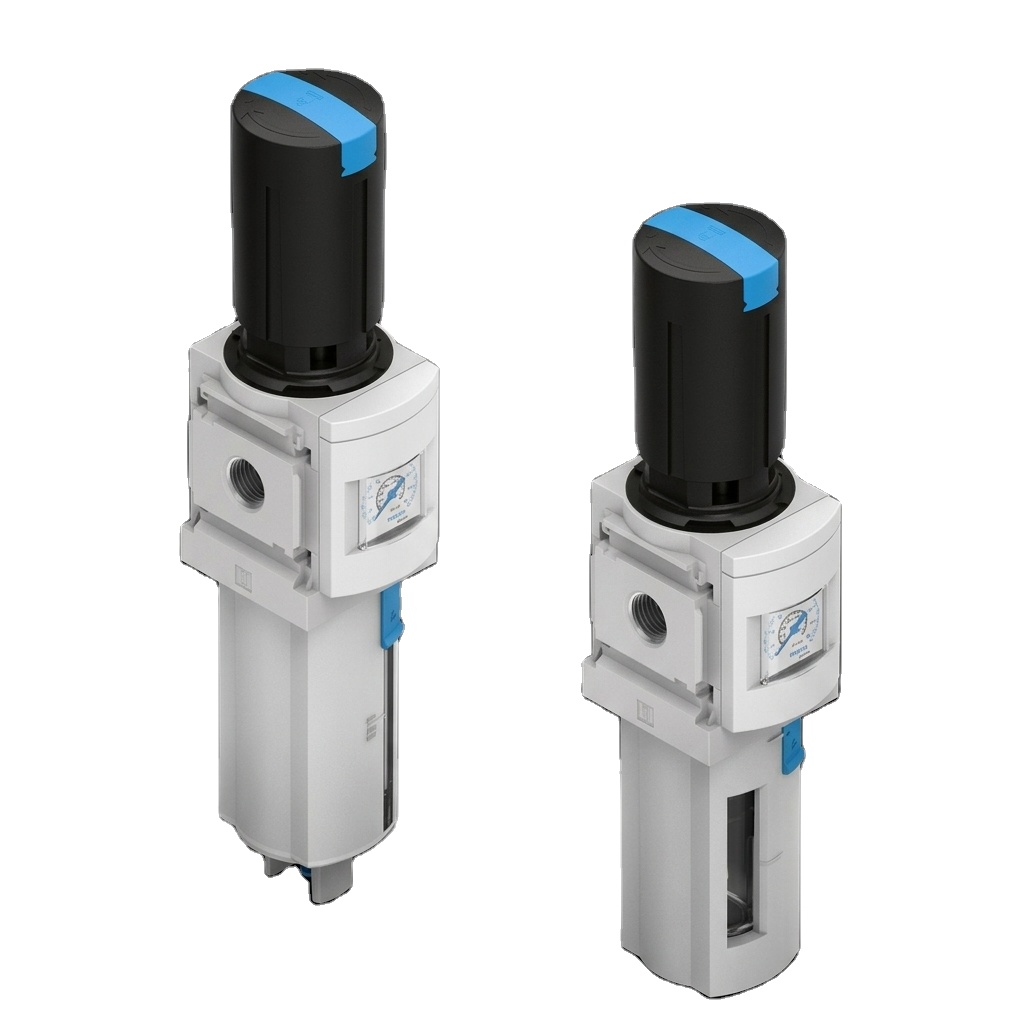

MS6-LFR-1/2-D7-C-U-V-RG-AS-UL1 is a high-performance Festo MS6 series filter regulator designed for professional pneumatic air preparation systems. This integrated filter regulator features G1/2 port size, precise pressure regulation and high flow capacity, perfectly built for industrial compressed air treatment, pneumatic circuit stabilization and automated machinery air supply optimization. With UL1 certification, metal bowl guard, semi-automatic condensate drain and built-in pressure gauge, this unit delivers stable, clean and regulated air for long-term industrial operation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | MS6-LFR-1/2-D7-C-U-V-RG-AS-UL1 |
| Product Type | Filter Regulator / Pneumatic Service Unit |
| Series | MS6 |
| Port Size | G1/2 |
| Filter Grade | 5 µm |
| Pressure Regulation Range | 0.5 ~ 12 bar |
| Max Operating Inlet Pressure | 20 bar |
| Standard Nominal Flow | 4000 l/min |
| Max Pressure Hysteresis | 0.25 bar |
| Condensate Drain | Semi-automatic drain |
| Pressure Gauge | Integrated pressure gauge |
| Bowl Guard | Metal bowl protection |
| Mounting Position | Vertical ±5° |
| Condensate Volume | 38 ml |
| Operating Medium | Compressed air / inert gas |
| Air Quality Output | ISO 8573-1:2010 [6:4:4] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Storage Temperature | -10 ~ +60 ℃ |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Bowl Material | Wrought aluminium alloy |
| Diaphragm Material | NBR |
| Separator Plate | POM |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Certification | UL1, cULus Recognized, RoHS Compliant |
| Net Weight | 1.09 kg |
| Gross Weight | 1.30 kg |
| Condition | New Original |
| Application | Pneumatic air preparation, air compressor system, industrial automation |
