WLG4S-3P3432V 1046449
Product Overview

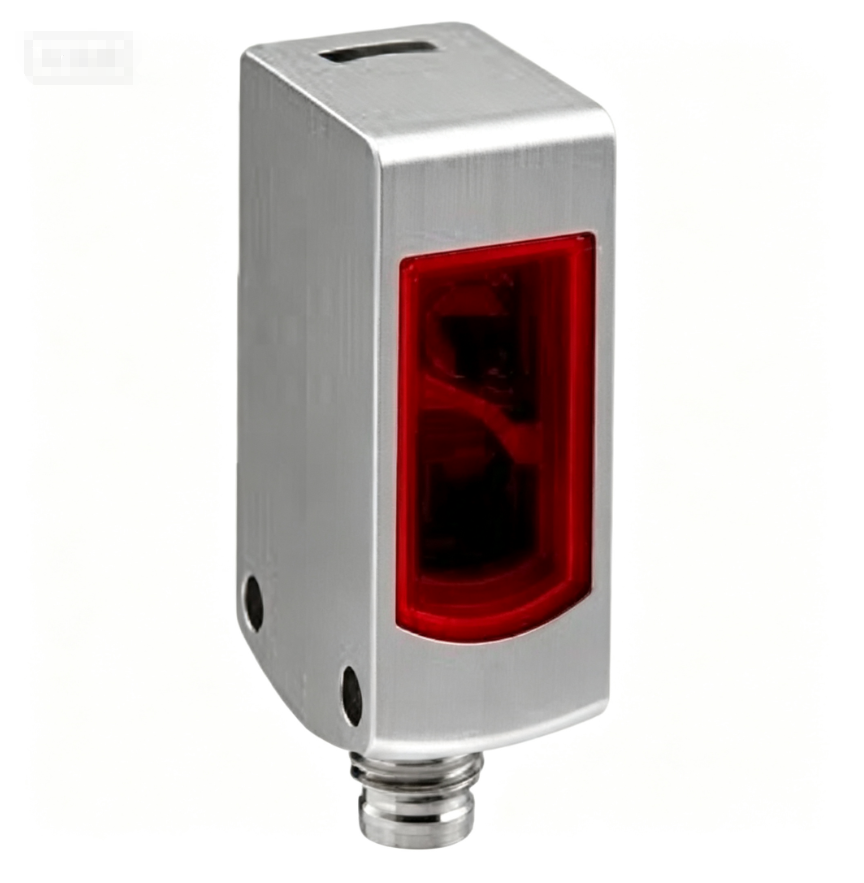

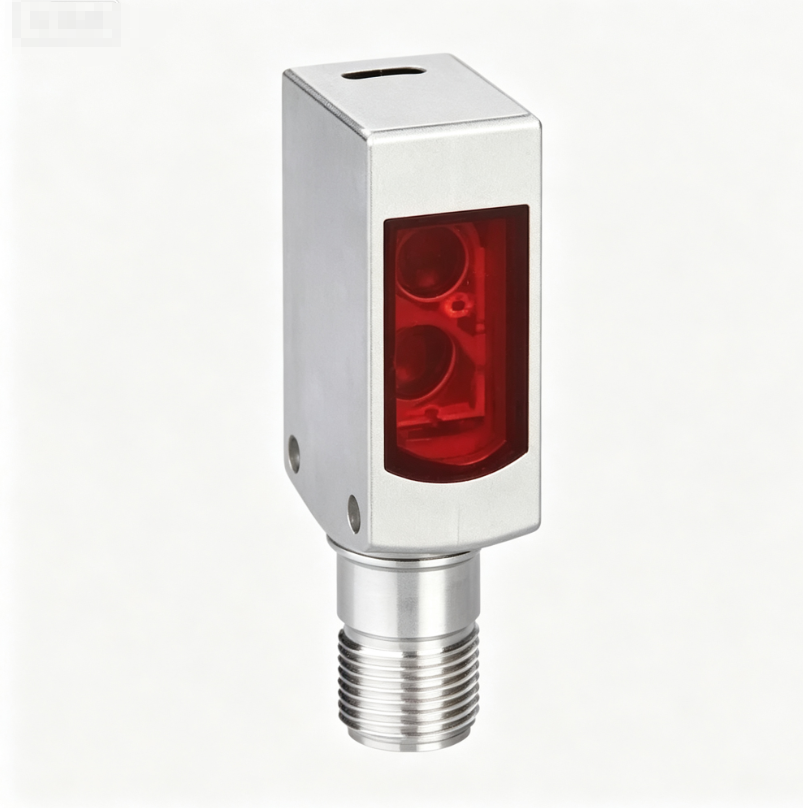

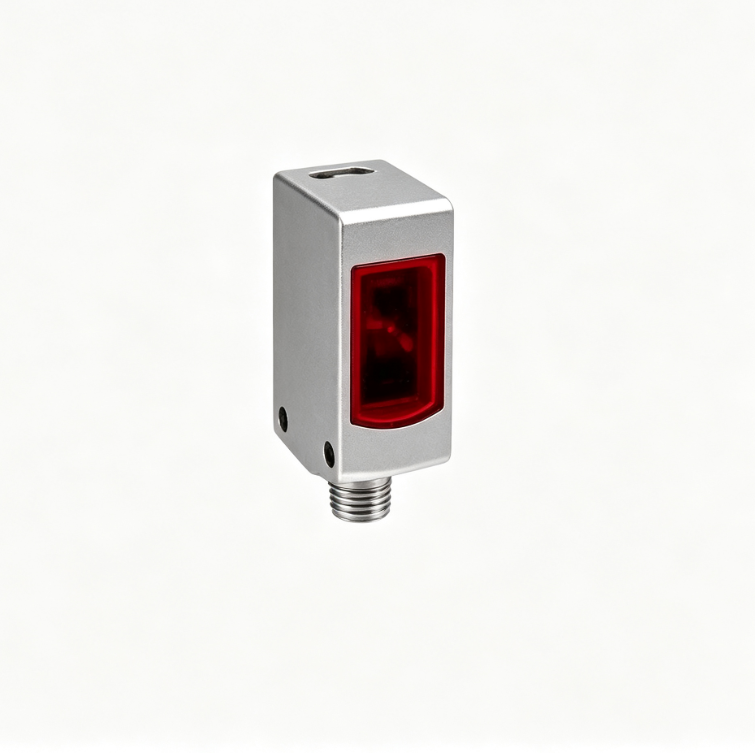

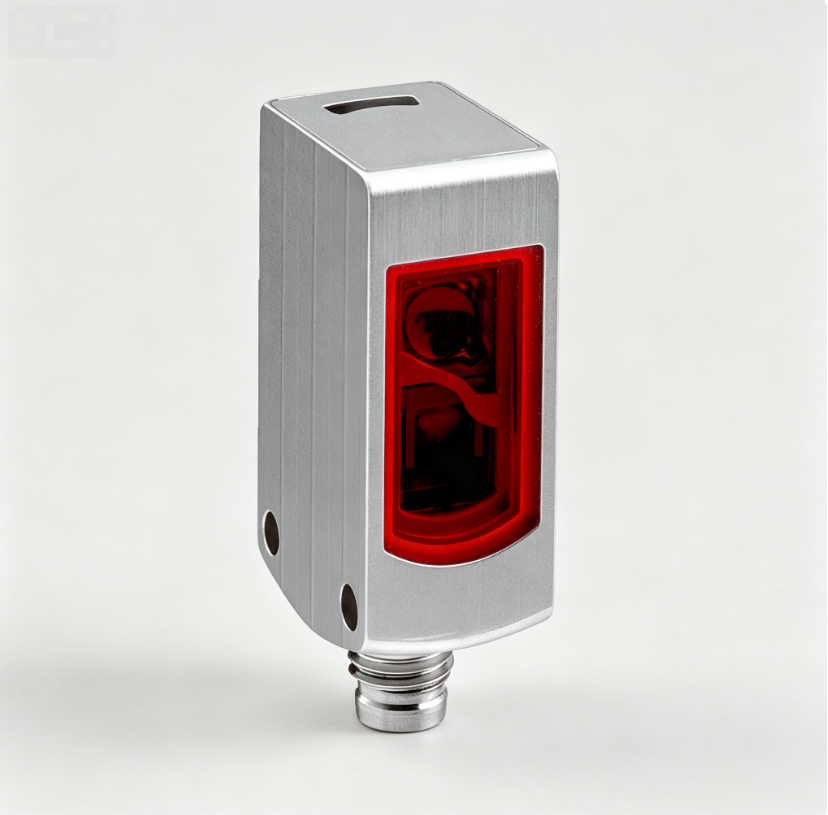

WLG4S-3P3432V (Part No.1046449) is a hygienic retro-reflective photoelectric sensor of SICK WLG4S series. It adopts PinPoint 650nm visible red LED light source, coaxial optical optics equipped with polarization filter, maximum sensing distance up to 5m working with PL80A reflector. It supports PNP output with switchable Light-ON / Dark-ON function, built-in single teach-in button and AutoAdapt function. The housing is made of 316L stainless steel with PMMA front screen, protection rating IP67, IP68 and IP69K. It has M12 4-pin male connector with 150mm cable, operating voltage DC10~30V. Its hygienic washdown design is ideal for transparent object detection in food and beverage industrial environments. Brand new original SICK photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WLG4S-3P3432V |
| Part No. | 1046449 |
| Product Type | Photoelectric Sensor |
| Series | W4S / WLG4S |
| Principle | Retro-reflective photoelectric sensor, coaxial optics + polarization filter |
| Sensing Distance | Max 5 m (working with PL80A reflector) |
| Light Source | PinPoint LED, 650nm visible red light |
| Adjustment | Single teach-in button |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | 316L stainless steel (V4A 1.4404), PMMA front screen |
| Protection Class | IP67, IP68, IP69K |
| Connector | M12 4-pin male connector, 150mm cable |
| Special Feature | Washdown / Hygienic design, AutoAdapt |
| Condition | New Original |
| Application | Transparent object detection, food & beverage packaging, washdown environment, conveyor system |
| Weight | 0.060 KG |
| Gross Weight | 0.092 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
