1218661 WLG16P-24162120A00
Product Overview

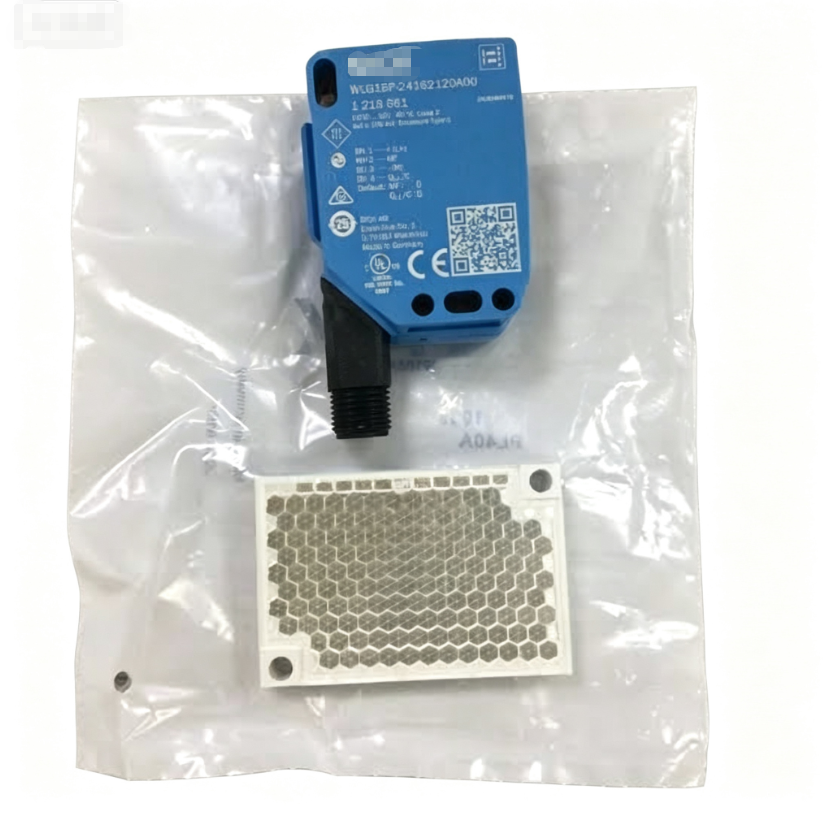

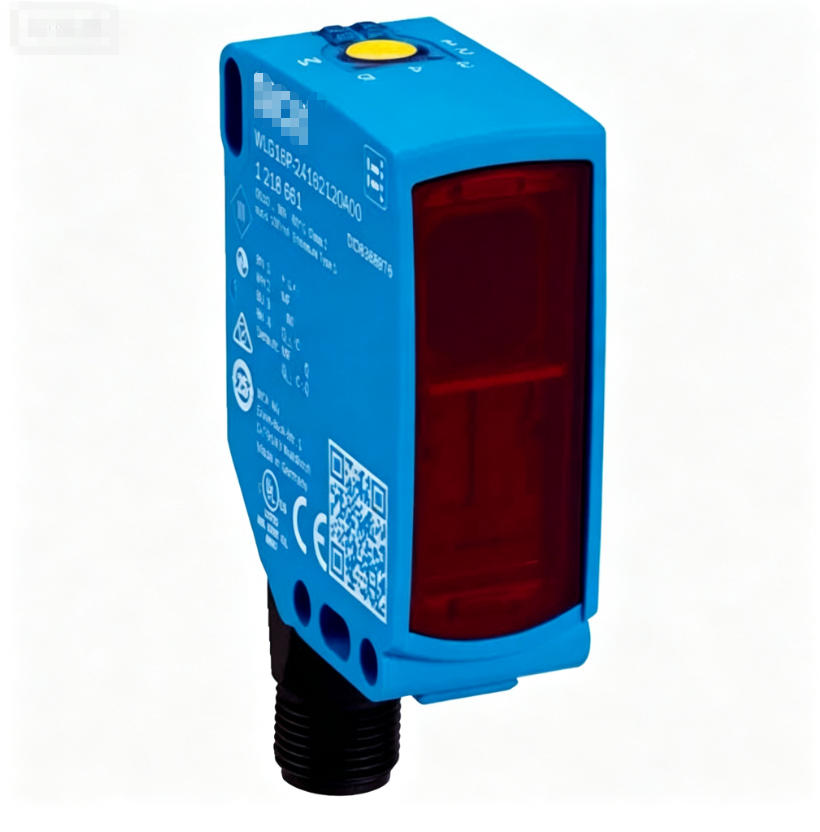

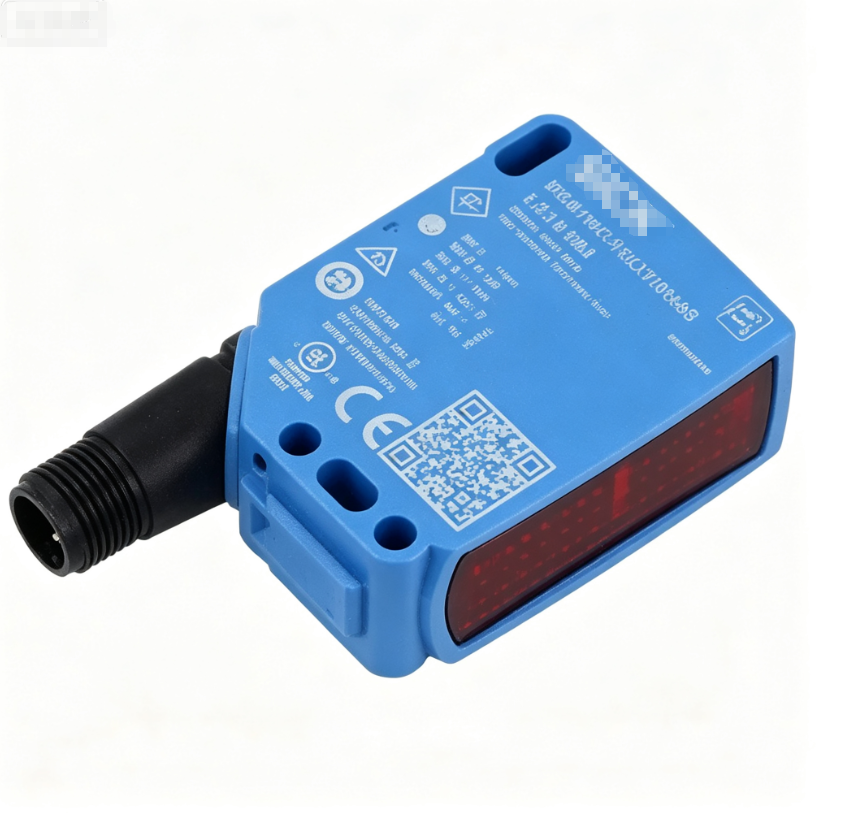

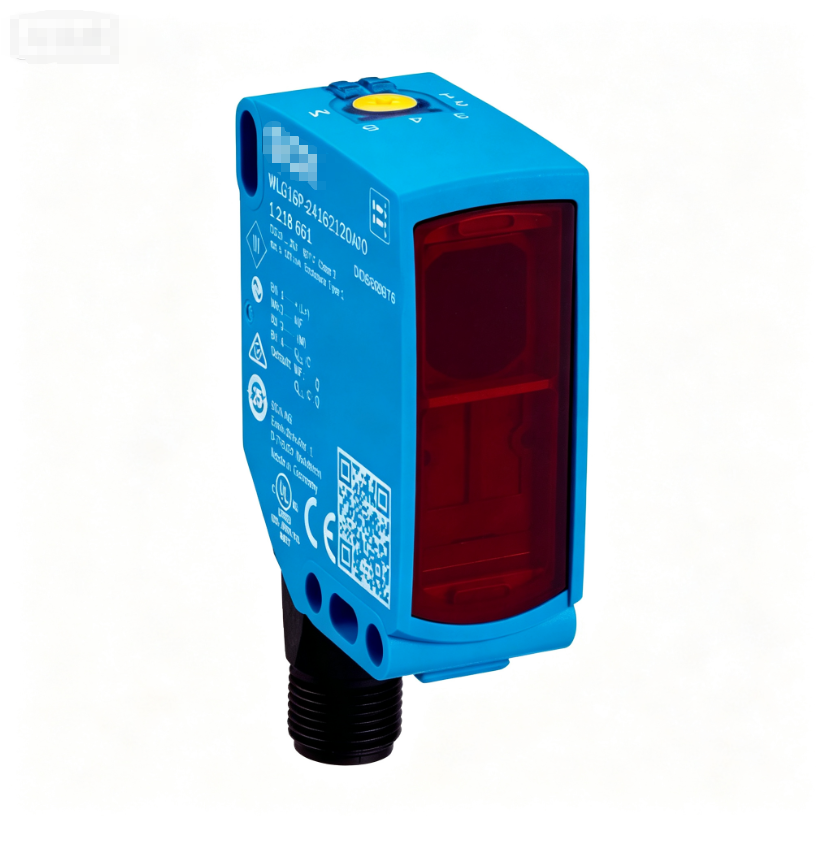

WLG16P-24162120A00 (Part No.1218661) is a high-performance retro-reflective photoelectric sensor of SICK WLG16P series. It is fitted with PinPoint 635nm visible red LED light source and polarization filter, maximum working sensing distance up to 5m when cooperating with PL80A reflector. It supports Push-pull (NPN/PNP) output with switchable Light-ON / Dark-ON function, integrated IO-Link V1.1 interface and BluePilot teach-in function for simple parameter setting. Adopt VISTAL plastic housing, protection grade IP66, IP67 and IP69K, powered by DC10~30V and M12 4-pin male connector. It performs excellently for transparent object detection in harsh industrial environments. Brand new original SICK photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WLG16P-24162120A00 |
| Part No. | 1218661 |
| Product Type | Photoelectric Sensor |
| Series | W16 / WLG16P |
| Principle | Retro-reflective photoelectric sensor, coaxial optics with polarization filter |
| Sensing Distance | Max 5 m (working with PL80A reflector) |
| Light Source | PinPoint LED, 635nm visible red light |
| Adjustment | BluePilot, Teach-in function |
| Output Type | Push-pull (NPN/PNP), switchable Light-ON / Dark-ON |
| Interface | IO-Link V1.1 |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | VISTAL Plastic |
| Protection Class | IP66, IP67, IP69K |
| Switching Frequency | 1000 Hz |
| Connector | M12 4-pin male connector |
| Condition | New Original |
| Application | Transparent object detection, conveyor system, packaging machinery, material handling |
| Weight | 0.050 KG |
| Gross Weight | 0.082 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
