WSE4SL-3P2437V
Product Overview

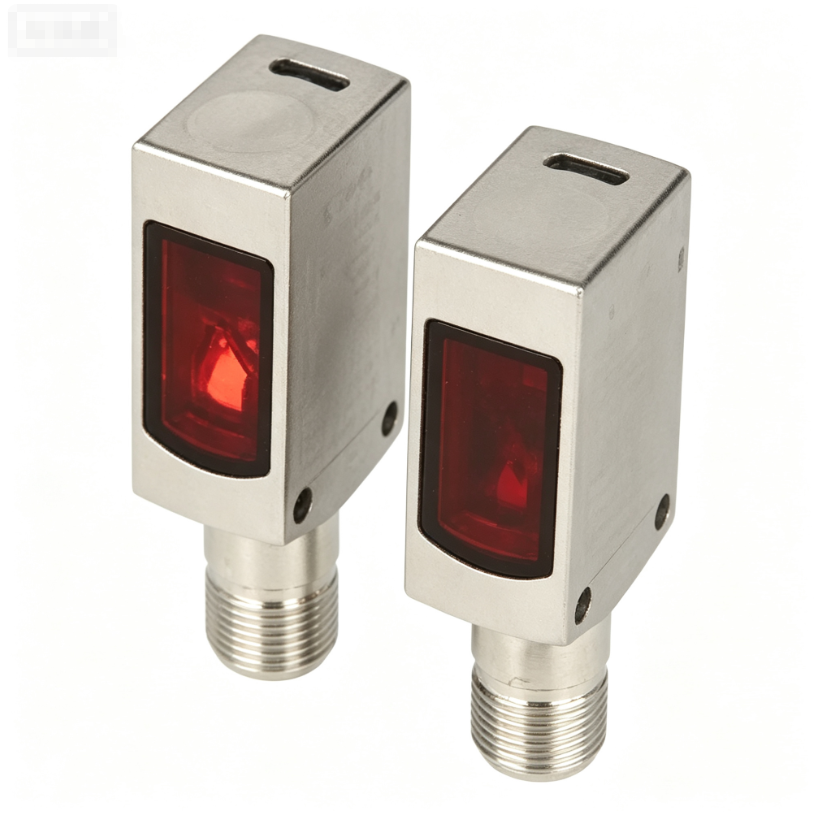

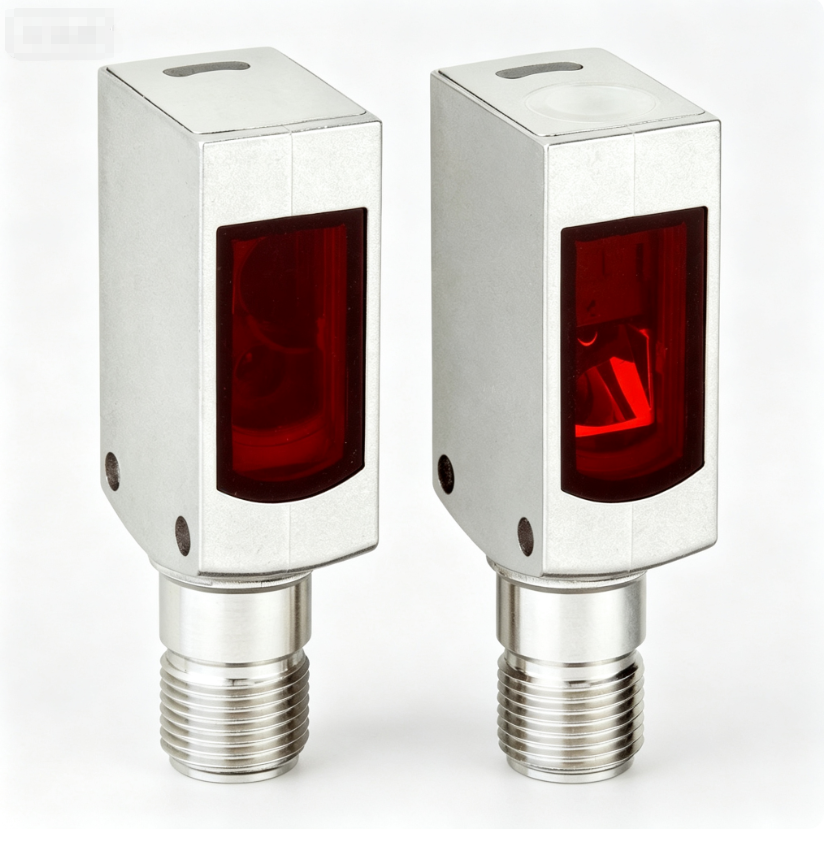

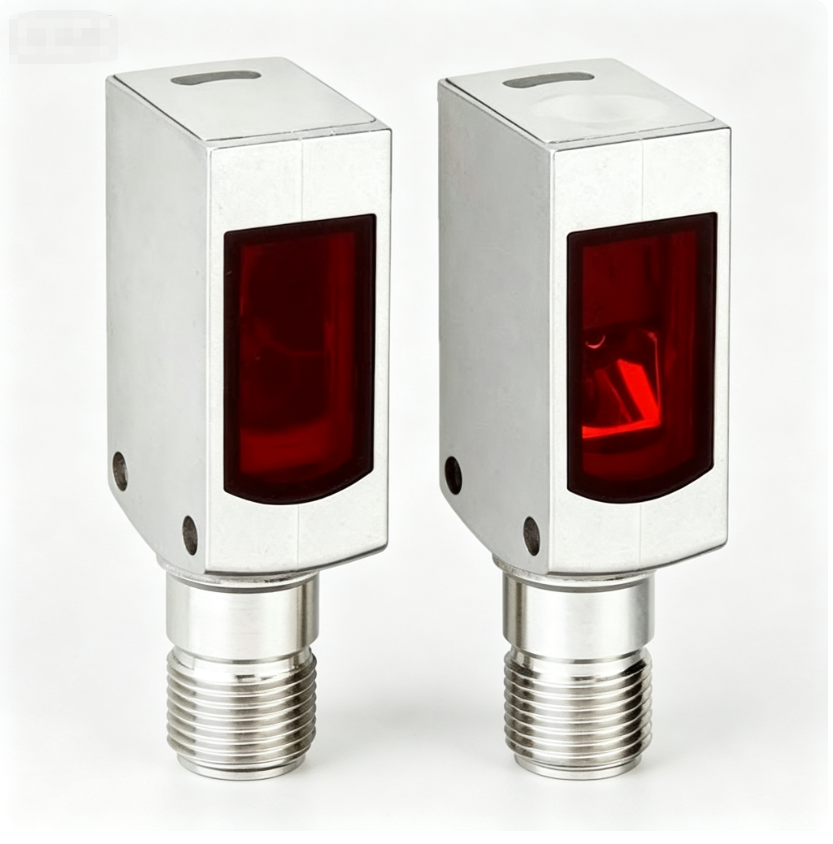

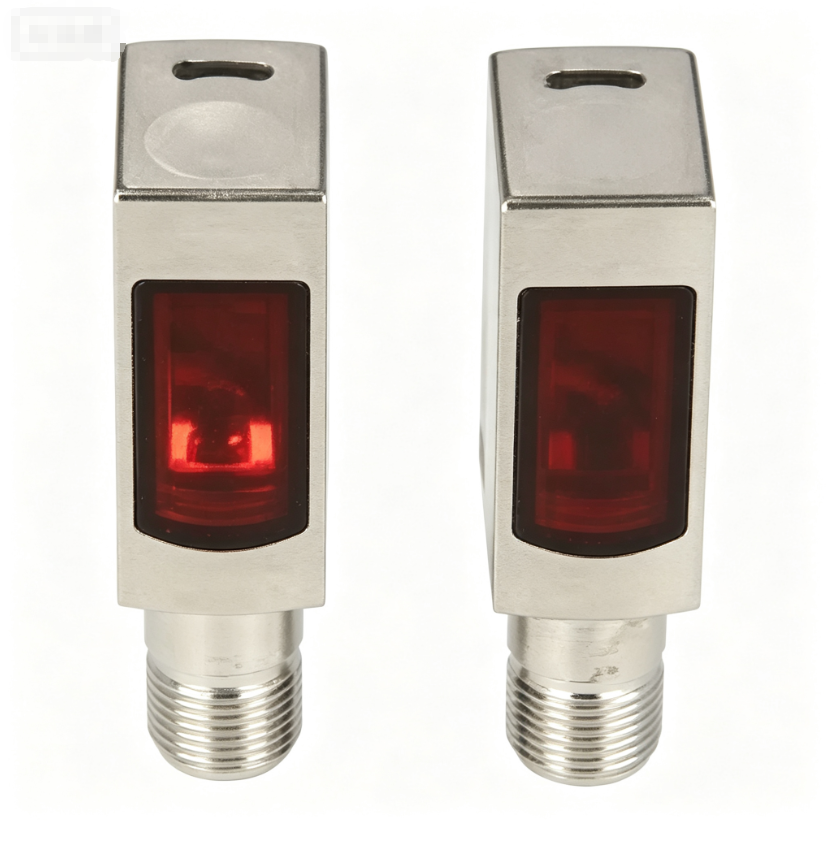

WSE4SL-3P2437V (Part No.1058269) is a hygienic through-beam laser photoelectric sensor from SICK WSE4SL series. It includes an emitter and receiver set, equipped with Class1 650nm visible red laser light source, maximum sensing distance up to 60 m. It adopts PNP output with switchable Light-ON / Dark-ON function, and a single teach-in button for simple setup. The housing is constructed from 316L stainless steel (1.4404/V4A) with PMMA front window, protection rating IP67, IP68 and IP69K. Powered by DC10~30V and fitted with M12 4-pin male connector. Thanks to hygienic washdown design, it is suitable for small object detection in food, beverage and pharmaceutical industries. Brand new original SICK laser photoelectric sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | WSE4SL-3P2437V |
| Part No. | 1058269 |
| Product Type | Through-beam Laser Photoelectric Sensor |
| Series | W4S / WSE4SL |
| Principle | Through-beam photoelectric sensor, laser type |
| Sensing Distance | Max 60 m (emitter + receiver set) |
| Light Source | 650nm visible red laser, Laser Class1 |
| Adjustment | Single teach-in button |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Housing Material | 316L stainless steel (1.4404/V4A), PMMA front window |
| Protection Class | IP67, IP68, IP69K |
| Connector | M12 4-pin male connector |
| Switching Frequency | 1000 Hz |
| Special Feature | Hygienic washdown design, fine focused laser spot |
| Condition | New Original |
| Application | Small object detection, food & beverage, conveyor, pharmaceutical packaging |
| Net Weight | 0.062 KG |
| Gross Weight | 0.095 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
